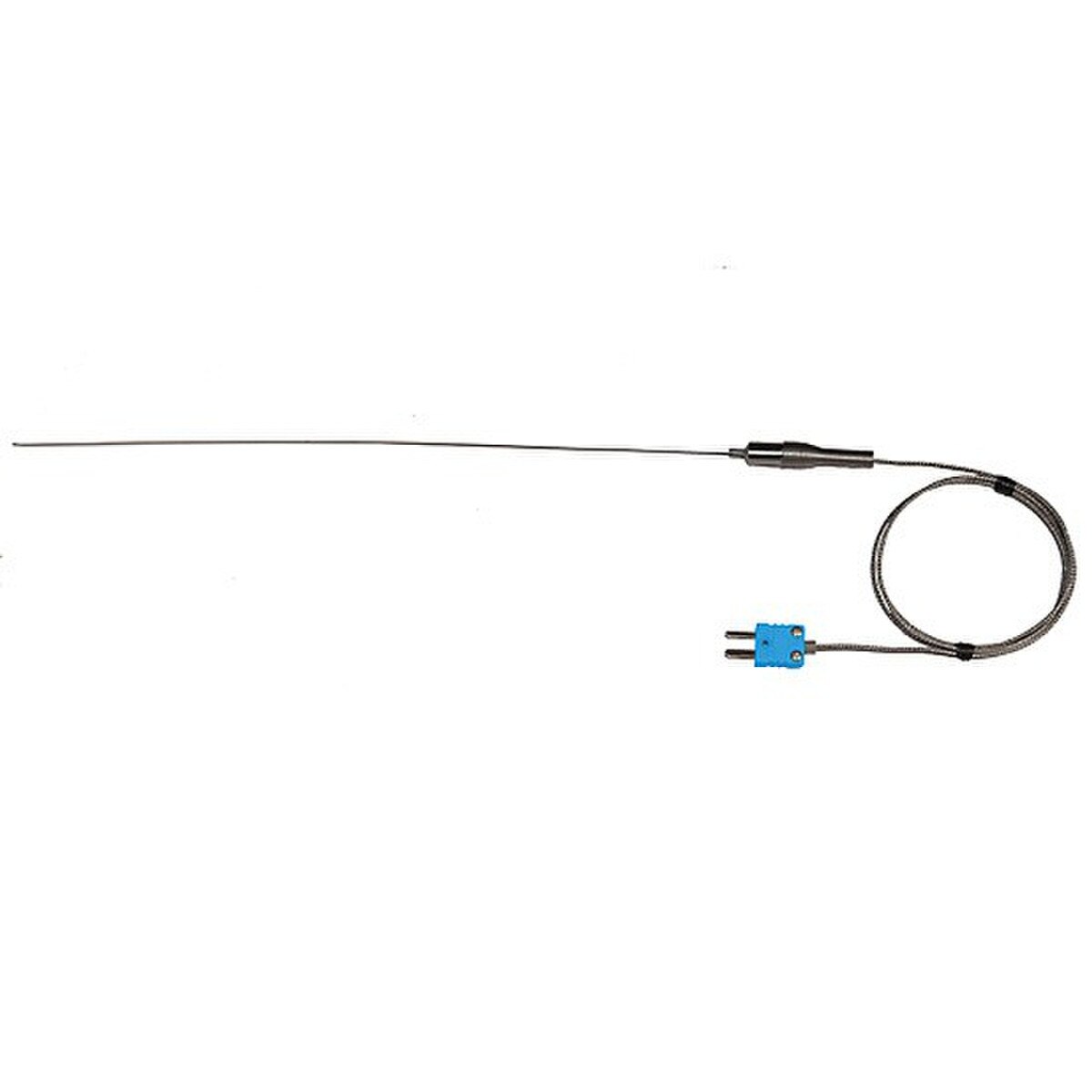

Digi-Sense Type-T, High-Temperature Wire Probe, 12" Length, 0.040" Diameter, Grounded, Mini-Connector, 3 ft 24-Gauge Cable
Images are for representation only. Actual product may differ in size, color or options.
Digi-Sense Type-T Thermocouple Probe, High-Temperature Wire, 12 inch L x 0.04 inch Dia., Grounded Junction, 14 Gauge, 3 feet Stainless Steel Armored Fiberglass Cable, Mini ANSI Connector (each)
High-Temperature Thermocouple Probes designed for multiple bends in any environment
High-Temperature Thermocouple Probes designed for multiple bends in any environment
- Bend probes around pipe diameters as small as twice the sheath diameter to easily determine your pipe temperature
- Response Time: 0.3 - 1.5 seconds or greater
- Probes are tightly packed with powdered MgO in 12 inch long sheaths
- Each probe comes with a color coded ANSI Mini-Connectors: type T-blue
| Product Type: | Thermocouple Probe |
| Brand: | Digi-Sense |
| Class: | Type-T |
| Grade: | High-Temperature Wire |
| Material: | Inconel® 600 |
| Temperature Range: | -328 to 500°F (-200 to 260°C) |
| Temperature Accuracy: | ±2.7°F (±1.5°C) or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C) |
| Connections: | Mini ANSI Connector |
| Probe Length: | 12 inches x 0.04 inch diameter |
| Cable Length: | 3 feet |
| Unit Size: | 14 Ga |
| Overall Dimensions: | Sheath: 12 inch length x 0.04 inch diameter; Handle: 1.5 inch length |
| Notes: | Grounded Junction |
