Digi-Sense Type-T, High-Temperature Wire Probe, 25" Length, 0.063" Diameter, Mini-Connector, Ungrounded, 3 ft 24-Gauge Cable

(0)No Reviews yet
$58.28 $66.60
QuantityPrice
1$58.28
4 +$56.61
SKU: CPI-93632-22
Item Number: CPI-93632-22
Model Number: 93632-22
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 93632-22
Condition: New

New

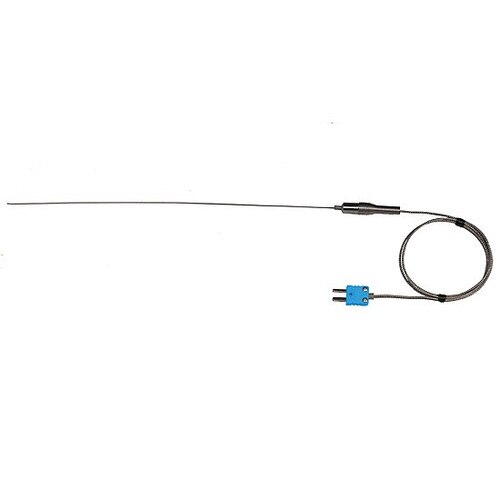

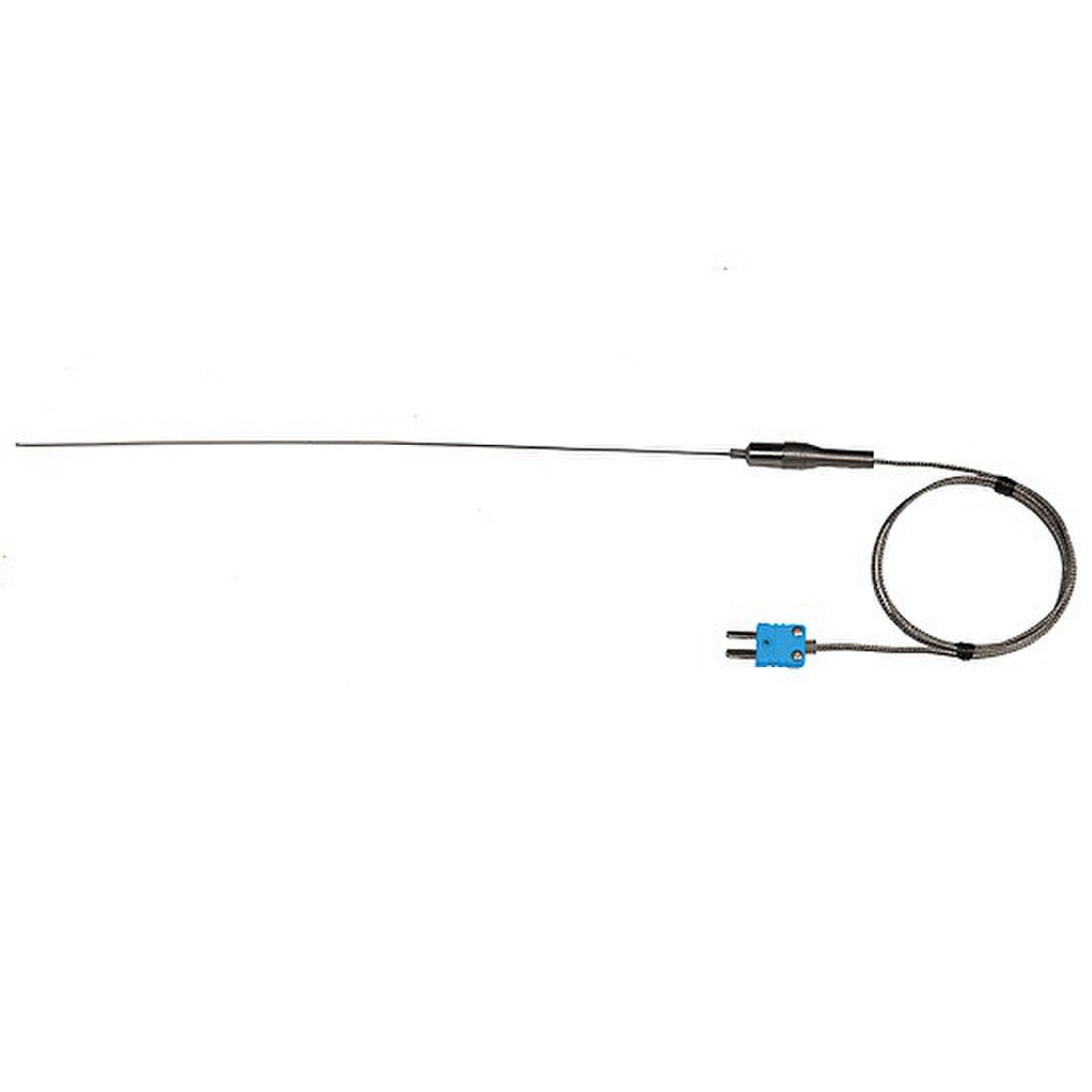

Digi-Sense Type-T Thermocouple Probe, High-Temperature Wire, 25 inch L x 0.063 inch Dia., Ungrounded Junction, 24 Gauge, 3 feet Stainless Steel Armored Fiberglass Cable, Mini ANSI Connector (each)

High-Temperature Thermocouple Probes designed for multiple bends in any environment

  • Bend probes around pipe diameters as small as twice the sheath diameter to easily determine your pipe temperature
  • Response Time: 1.5 seconds or greater
  • Probes are tightly packed with powdered MgO in 25 inch long sheaths
  • Each probe comes with a color coded ANSI Mini-Connectors: type T-blue
Note: The temperature range is for the probe tip only. Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).


Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-T
Grade: High-Temperature Wire
Material: Inconel® 600
Temperature Range: -328 to 500°F (-200 to 260°C)
Temperature Accuracy: ±2.7°F (±1.5°C) or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C)
Connections: Mini ANSI Connector
Probe Length: 25 inches x 0.063 inch diameter
Cable Length: 3 feet
Unit Size: 24 Ga
Overall Dimensions: Sheath: 25 inch length x 0.063 inch diameter; Handle: 1.5 inch length
Notes: Ungrounded Junction
