Cole-Parmer Type-K Gen-Purpose Heavy-Duty Probe Mini-Connector, 12" L Grounded 5ft Coil Cord

(0)No Reviews yet
$102.16 $116.75
4 +$99.24
SKU: CPI-93756-23
Item Number: CPI-93756-23
Model Number: 93756-23
Manufacturer: Oakton Instruments
Brand: Cole-Parmer
MPN: 93756-23
Condition: New

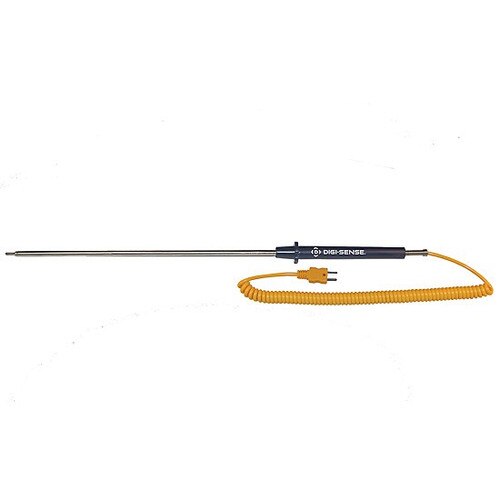

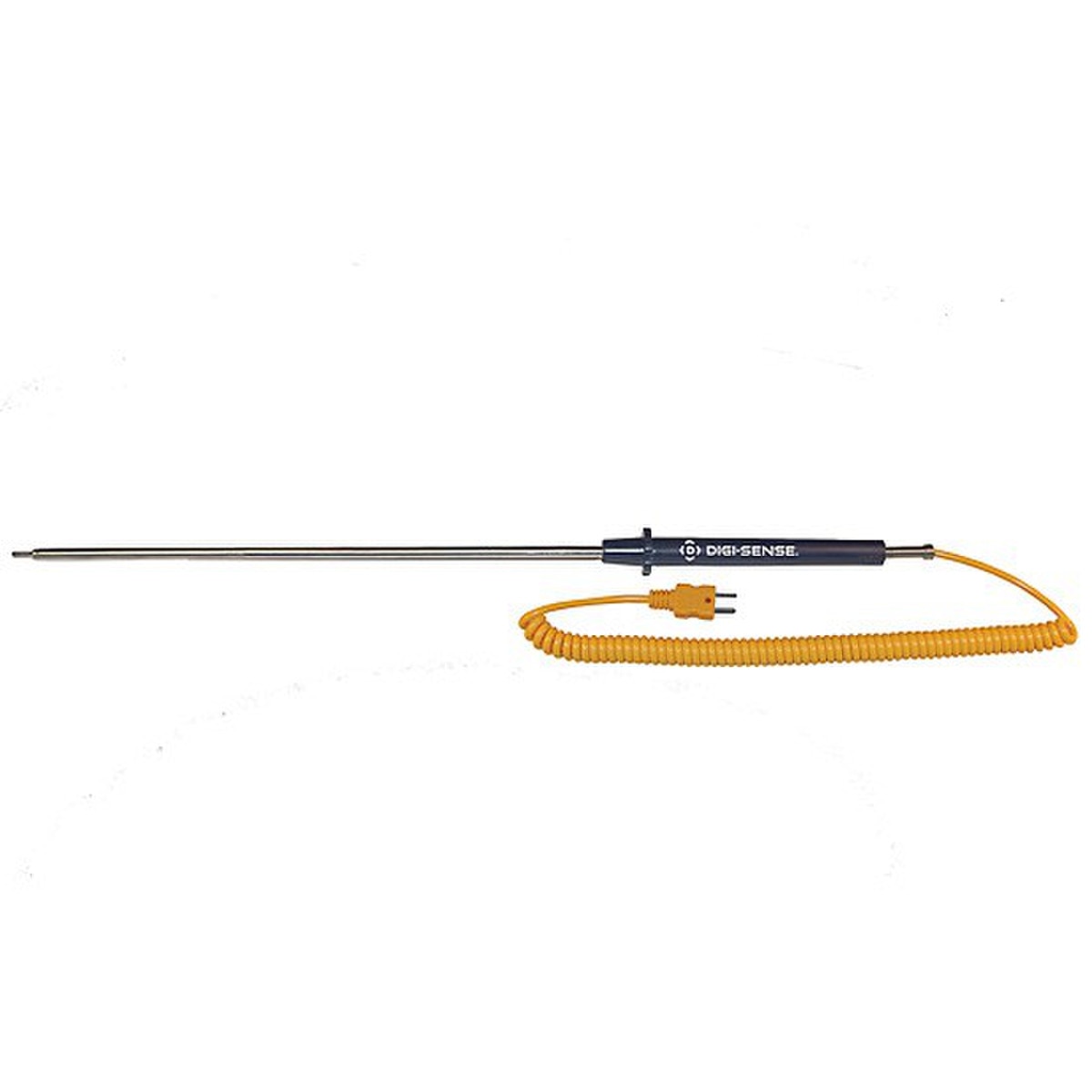

Digi-Sense Type-K Thermocouple Probe, Heavy-Duty Extra-Long, 12 inch L x 0.25 inch Dia, Grounded Junction, 5 feet Cable, Mini ANSI Connector (each)

Heavy-Duty Extra-Long Penetration Probes are designed for use with liquids, gases and semisolids

  • Response Time: 2 seconds or greater
  • ABS handles provide a light weight design for ease of use along with durability
  • Probe handles feature a strain relief spring that protects the cable connection against damage due to repeated flexing and tugging
  • Each probe comes with a color coded ANSI Mini-Connectors: type K-yellow
Note: The temperature range is for the probe tip only. ABS handles are rated to 220°F (104°C); Mini Connectors are rated to 392°F (200°C).

Product Type: Thermocouple Probe
Brand: Cole-Parmer
Class: Type-K
Grade: Heavy-Duty Extra-Long
Material: 316 Stainless Steel, ABS Plastic
Temperature Range: -250 to 1650 °F (-150 to 899 °C)
Temperature Accuracy: ±3.0°F(1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F(2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F(4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Connections: Mini ANSI Connector
Probe Length: 12 inches x 0.25 inch diameter
Cable Length: 5 feet
Overall Dimensions: Sheath: 12 inch length x 0.25 inch diameter; Handle: 5.5 inch length
Notes: Grounded Junction
