CPI-93812-02

(0)No Reviews yet
$97.36 $121.25
QuantityPrice
1 – 1$121.25
1 – 3$97.36
4 +$92.88
SKU: CPI-93812-02

New

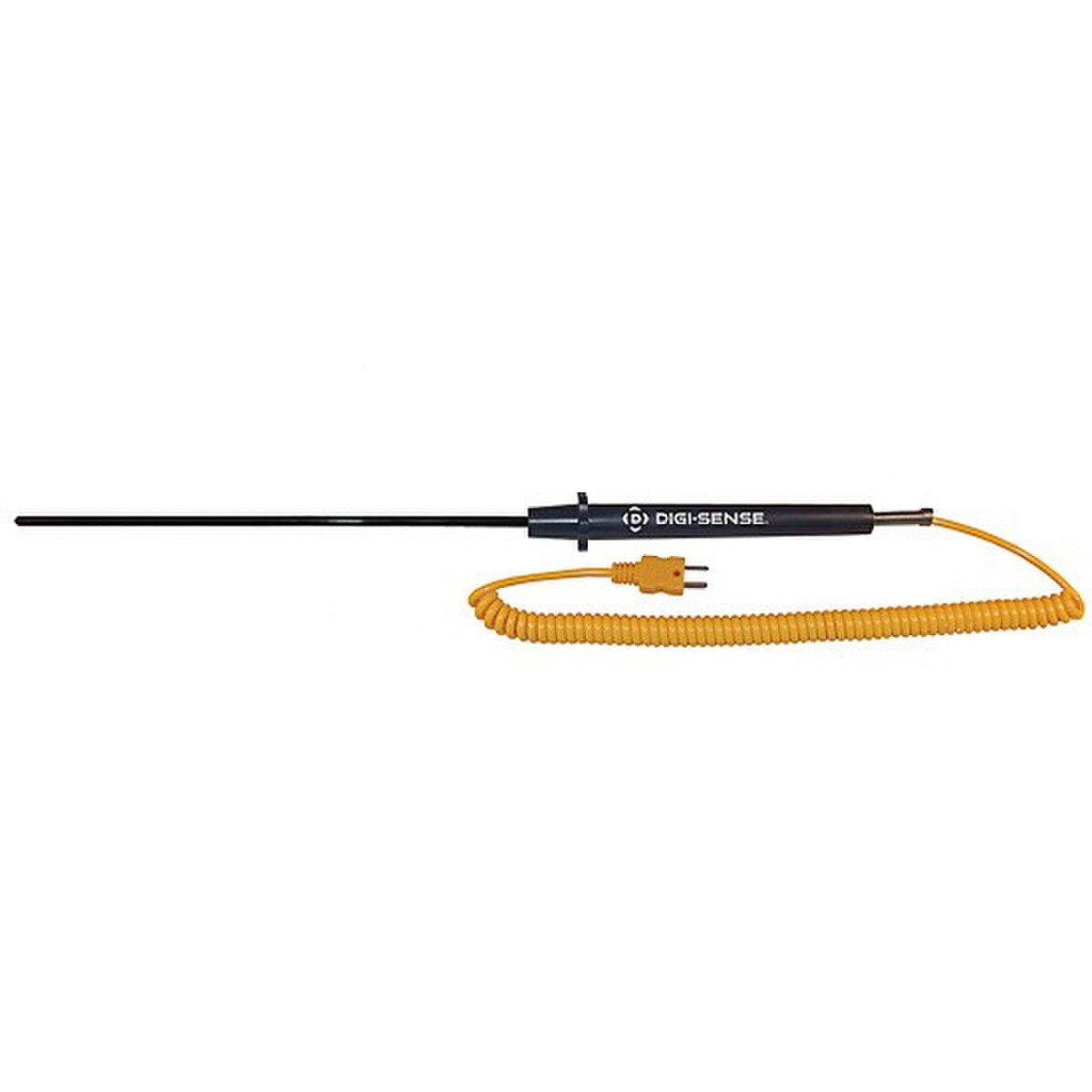

Digi-Sense Type-K Thermocouple Probe, Extra-Long PFA Coated, 10 inch L x 0.145 inch Dia, Grounded Junction, 5 feet Cable, Mini ANSI Connector (each)

General-Purpose Probes with PFA-Coating are designed for use with corrosive chemicals and strong acids

  • Response Time: 2 seconds or greater
  • PFA coated probes are ideal for measuring corrosive materials
  • ABS handles provide a light weight design for ease of use along with durability
  • Probe handles feature a strain relief spring that protects the cable connection against damage due to repeated flexing and tugging
  • Can be used on caustic materials
  • Each probe comes with a color coded ANSI Mini-Connectors: type J-black
Note: The temperature range is for the probe tip only. ABS handles are rated to 220°F (104°C); Mini Connectors are rated to 392°F (200°C).


Product Type: Thermocouple Probe
Brand: Cole-Parmer
Class: Type-K
Grade: Extra-Long PFA Coated
Material: 316 Stainless Steel
Temperature Range: -250 to 400°F (-150 to 204°C)
Temperature Accuracy: ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Connections: Mini ANSI Connector
Probe Length: 10 inches x 0.145 inch diameter
Cable Length: 5 feet
Overall Dimensions: Sheath: 10 inch length x 0.063 inch diameter; Handle: 5.5 inches
Notes: Grounded Junction
