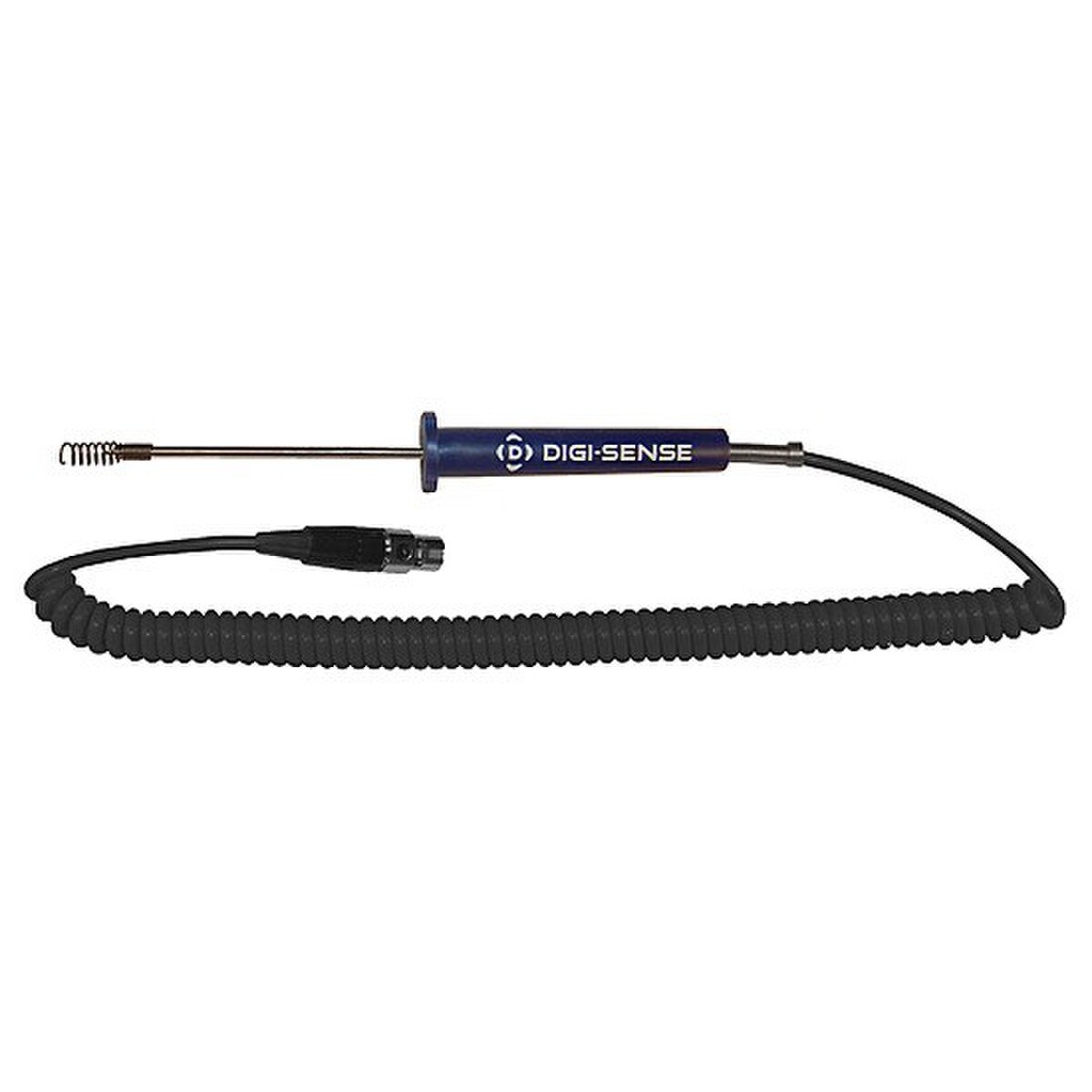

Cole-Parmer Air/Gas RTD Probe, 100 Ohm, 3-Pin Connector, 5" Length, 5 ft Coil Cord

(0)No Reviews yet
$106.75 $122.00
4 +$103.70
SKU: CPI-93821-20
Item Number: CPI-93821-20
Model Number: 93821-20
Manufacturer: Oakton Instruments
Brand: Cole-Parmer
MPN: 93821-20
Condition: New


Digi-Sense RTD Probe, Compact Air/Gas, 5.75 inch L x 0.125 inch Dia, 5 feet Cable, Digi-Sense 3-pin Connector (each)

Designed to give the same accuracy and benefits of a RTD Probe in a compact economical design. These 100? RTD probes are for general-purpose use with liquids, gases and semisolids.

  • Time constant : 1-3 seconds or greater
Note: Time constant is the time required to reach 63.2% of the new reading. To determine how long it will take to reach 99% of the new reading multiply the time constant by five. Maximum error for probe assembly is ±1.1°C + 0.12% of reading below 300°F, ±0.35% of reading above 300°F. Alpha coefficient is 0.003850 omega/omega/°C (DIN IEC 751). Resistance at ice point (0°C) is 100 omega.

Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C).

Product Type: RTD Probe
Brand: Cole-Parmer
Class: RTD
Grade: Compact Air/Gas
Material: 304 Stainless Steel, PVC Plastic
Temperature Range: -58 to 900°F (-50 to 482°C)
Temperature Accuracy: ±1.1°C, ±0.12% of reading
Connections: Digi-Sense 3-pin Connector
Probe Length: 5.75 inches x 0.125 inch diameter
Cable Length: 5 feet
Overall Dimensions: Sheath: 5.75 inch length x 0.125 inch diameter; Handle: 1.25 inches
