Digi-Sense Ind Bolt-On RTD Probe, 1 x .812" Mount, Spd Lugs, 4ft FEP Ins Cable

(0)No Reviews yet
$153.64 $180.75
2 +$144.60
SKU: CPI-93822-50
Item Number: CPI-93822-50
Model Number: 93822-50
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 93822-50
Condition: New

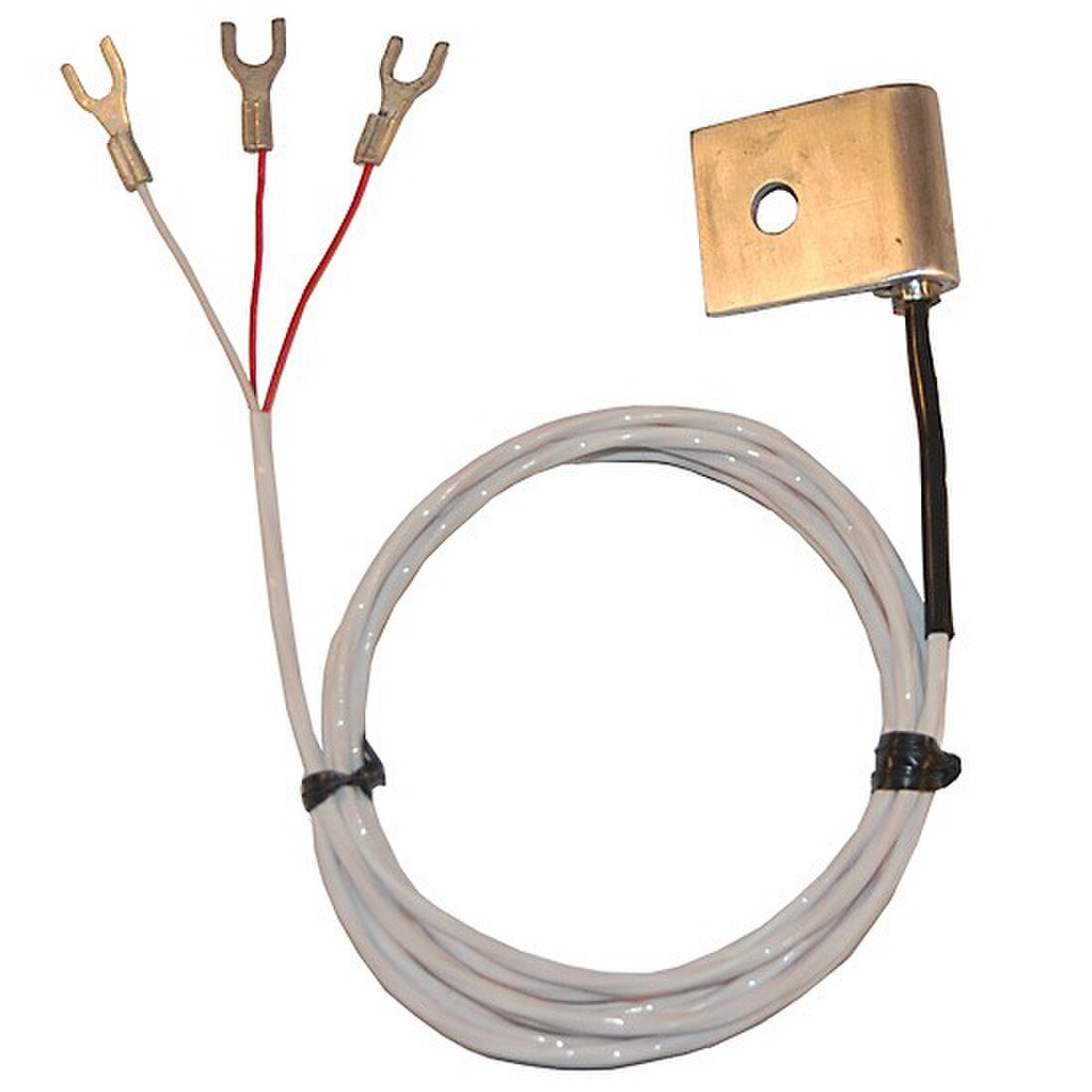

Digi-Sense RTD Probe, Industrial Bolt-On, 1 x .812 inch Mount, 4 feet Cable, 3 Spade Lugs (each)

RTD Bolt-On probes ideal for long term installation in harsh industrial environments. These 100? RTD probes are for general-purpose use with liquids, gases and semisolids.

  • Protected by a sturdy aluminum housing ideal for permanent mounting on equipment
  • Time constant : 1-3 seconds or greater
Note: Time constant is the time required to reach 63.2% of the new reading. To determine how long it will take to reach 99% of the new reading multiply the time constant by five. Maximum error for probe assembly is ±1.1°C + 0.12% of reading below 300°F, ±0.35% of reading above 300°F. Alpha coefficient is 0.003850 omega/omega/°C (DIN IEC 751). Resistance at ice point (0°C) is 100 omega.

Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C).

Product Type: RTD Probe
Brand: Digi-Sense
Class: RTD
Grade: Industrial Bolt-On
Material: Screw-Mount Aluminum Housing
Temperature Range: -58 to 400°F (-50 to 204°C)
Temperature Accuracy: ±1.1°C, ±0.12% of reading
Connections: 3 Spade Lugs
Cable Length: 4 feet
Overall Dimensions: Mount: 1 x .812 inches
