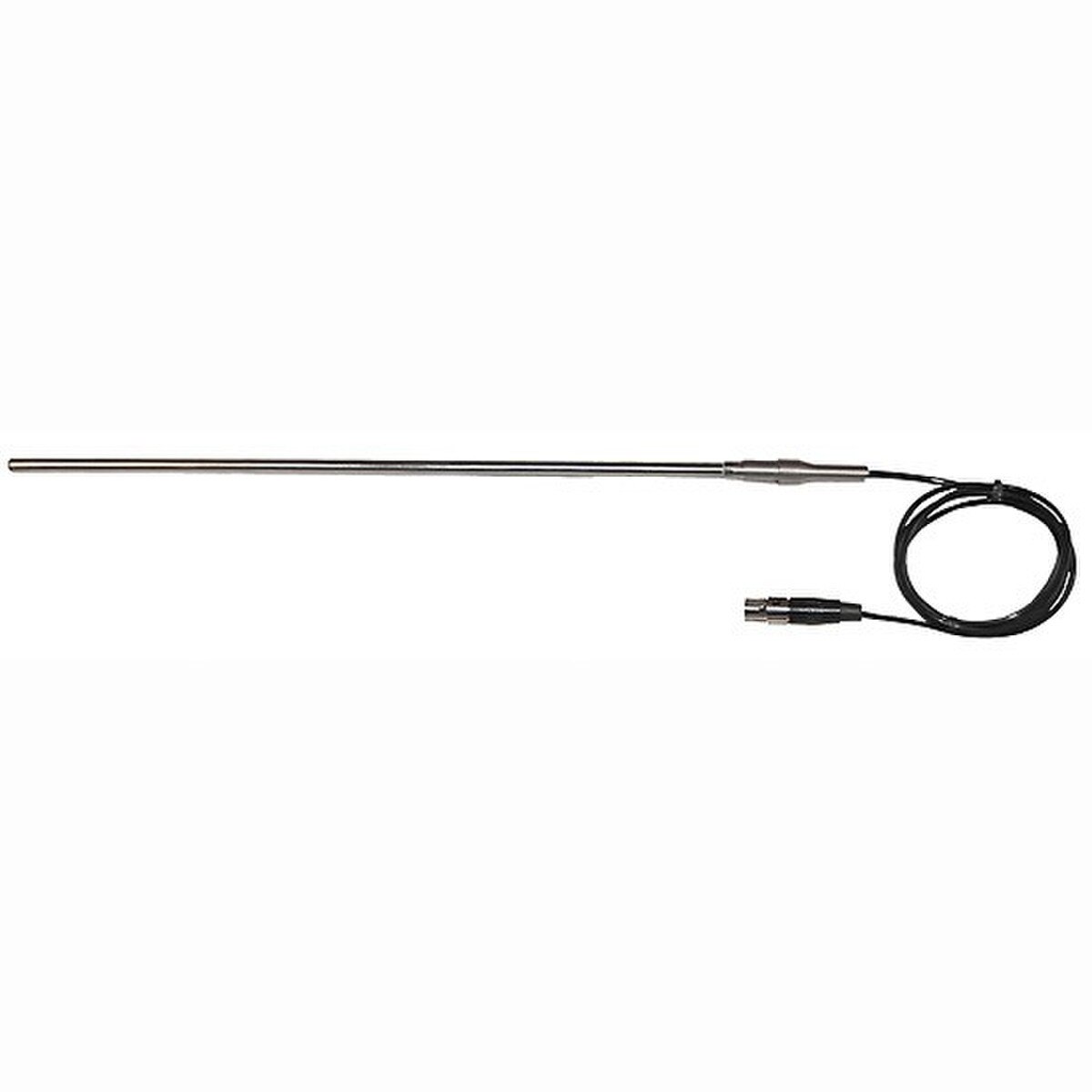

Digi-Sense Economical Hi-Accy RTD Probe 3 Wire 3 P" Connector, 1 / 4" Dia 20" L 1M Cable

(0)No Reviews yet
$311.95 $367.00
QuantityPrice
1$311.95
2 +$293.60
SKU: CPI-93822-60
Item Number: CPI-93822-60
Model Number: 93822-60
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 93822-60
Condition: New

New

Digi-Sense RTD Probe, Economical Hi-Accuracy, 20 inch L x 0.25 inch Dia, 3 feet Cable, Digi-Sense 3-pin Connector (each)

Ideal for applications where accuracy is a factor but so is cost. These 100? RTD probes are for general-purpose use with liquids, gases and semisolids.

  • Time constant : 2 seconds or greater
Note: Time constant is the time required to reach 63.2% of the new reading. To determine how long it will take to reach 99% of the new reading multiply the time constant by five. Maximum error for probe assembly is ±1.1°C + 0.12% of reading below 300°F, ±0.35% of reading above 300°F. Alpha coefficient is 0.003850 omega/omega/°C (DIN IEC 751). Resistance at ice point (0°C) is 100 omega.

Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C).


Product Type: RTD Probe
Brand: Digi-Sense
Class: RTD
Grade: Economical Hi-Accuracy
Material: 316 Stainless Steel
Temperature Range: -328 to 751°F (-200 to 400°C)
Temperature Accuracy: ±0.75°C from -51° to -200°C; ±0.5°C from -50° to 400°C
Connections: Digi-Sense 3-pin Connector
Probe Length: 20 inches x 0.25 inch diameter
Cable Length: 3 feet
Overall Dimensions: Sheath: 20 inch length x 0.25 inch diameter; Handle: 1.5 inch length
