CPI-93823-01

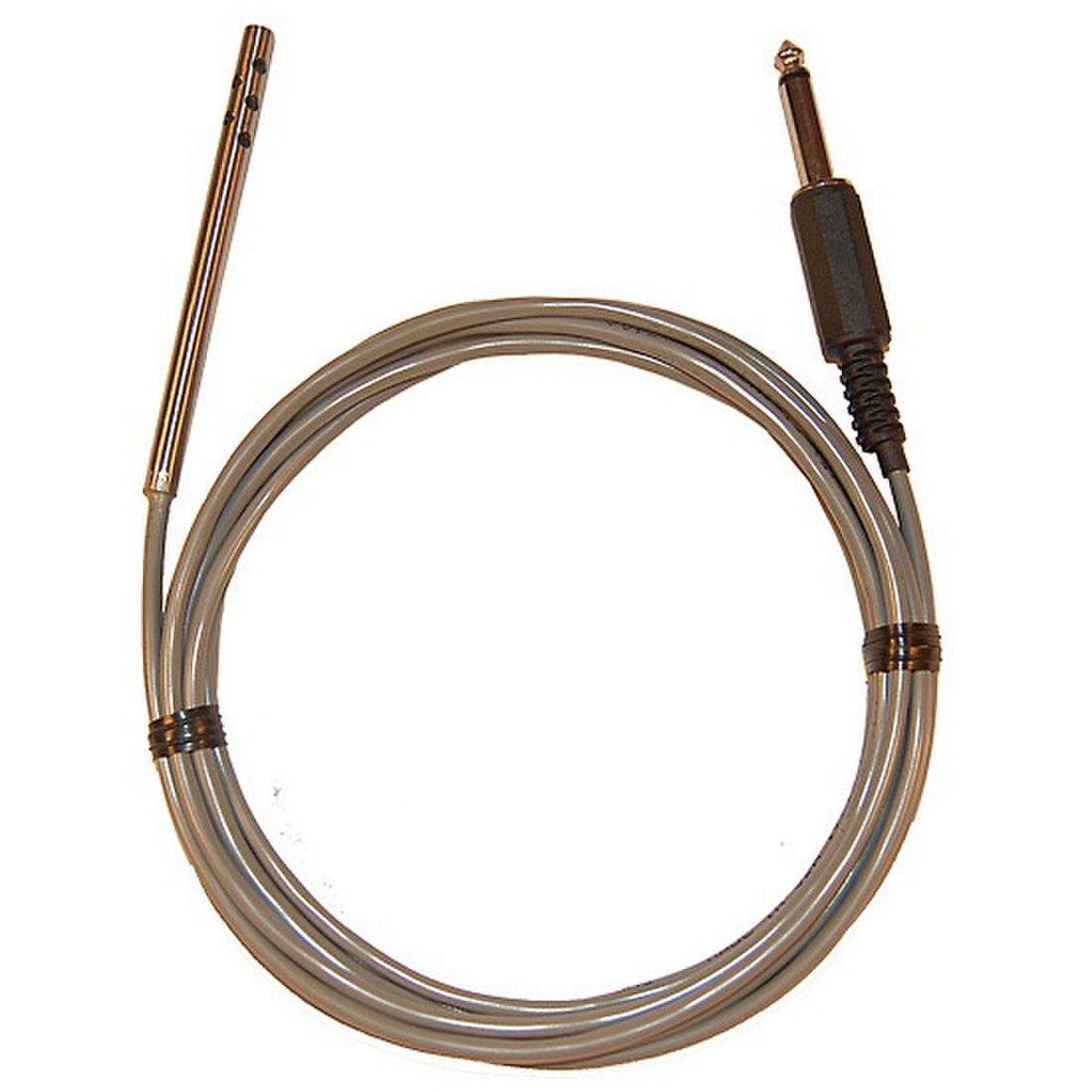

Digi-Sense Thermistor Probe, Air/Gas, 0.8125 inch L x 0.25 inch Dia, Screw Mount, 10 feet Cable, 1/4 inch Phono Plug (each)

Thermistor Probes offer excellent accuracy over the biological temperature range. These 100? RTD probes are for use with liquids, gases and semisolids.

• Probes are electronically isolated and with a 1/4 inch mono plug
• Epoxy coated probes can be used in liquid immersions
• Time constant : 1-4 seconds or greater

Note: Time constant is the time required to reach 63.2% of the new reading. To determine how long it will take to reach 99% of the new reading multiply the time constant by five. Maximum error for probe assembly is ±1.1°C + 0.12% of reading below 300°F, ±0.35% of reading above 300°F. Alpha coefficient is 0.003850 omega/omega/°C (DIN IEC 751). Resistance at ice point (0°C) is 100 omega.

Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material.
