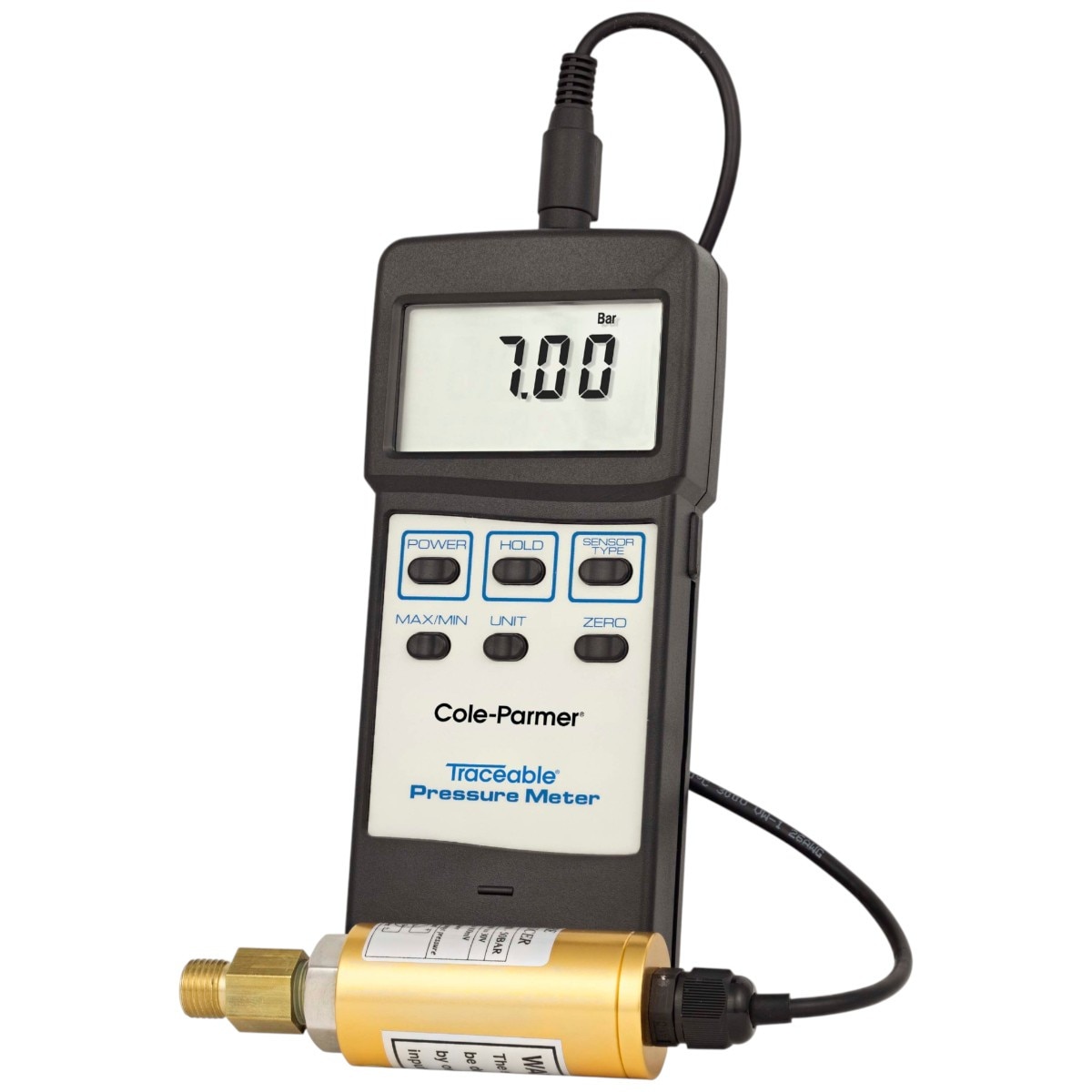

Traceable® 3165TR Pressure/Vacuum Gauge (–14.7 to 725 psi)
Images are for representation only. Actual product may differ in size, color or options.
Traceable® 3165TR Pressure/Vacuum Gauge (–14.7 to 725 psi)
This Traceable® pressure/vacuum gauge measures from –14.7 to 725 psi and displays readings in eight selectable units. The unit zeros at the touch of a button and features MIN, MAX, and Hold functions for capturing critical values. A serial output port allows direct connection to a PC for data acquisition. The instrument includes a NIST-traceable calibration certificate issued by an A2LA-accredited ISO/IEC 17025 laboratory.
- Item Number: 98766-89
- Model: 3165TR
- Pressure Range: –14.7 to 725 psi
- Units: psi, bar, mH2O, atm, Torr, inHg, mmHg, kPa
- Accuracy: ±0.3% of full scale
- Functions: MIN/MAX, Hold, zero function
- Output: Serial port for PC connection
- Display: LCD
- Included: Transducer sensor, 40-inch cable, 9V battery, NIST-traceable certificate
- Warranty: 1 year
| Product Type: | Pressure / Vacuum Gauge |
| Brand: | Traceable |
| Range: | Max: 725 psi |
| Accuracy: | 1% full-scale plus 1 digit |
| Overall Dimensions: | 7 x 3 x 1-1/2 inches |
| Includes: | Traceable® Certificate, transducer sensor, 9-volt alkaline battery |
