CPI-3251
Images are for representation only. Actual product may differ in size, color or options.

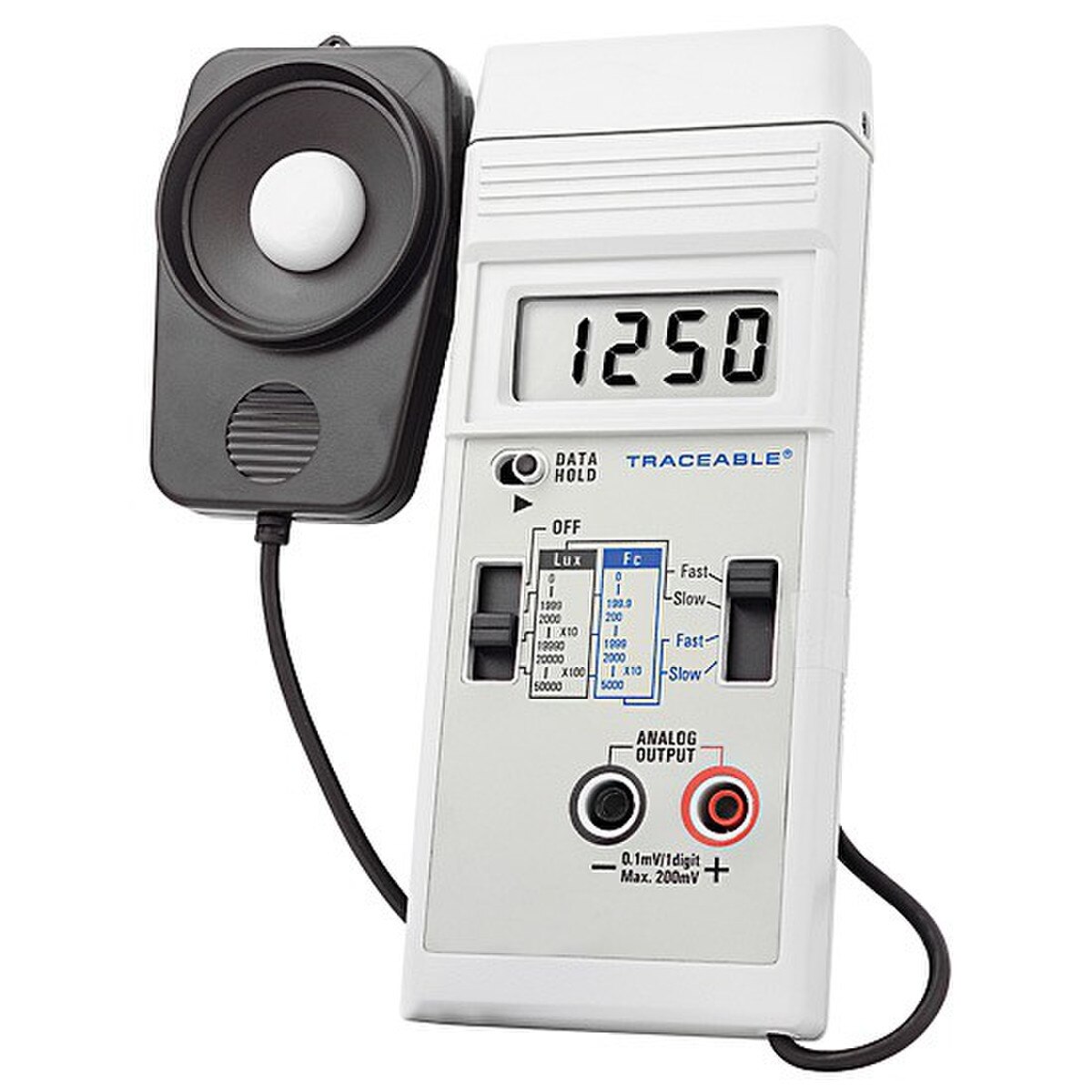

Traceable® 0 to 50,000 lux / 0 to 5,000 Fc Dual Range Light Meter w/Outputs with a NIST Traceable® Calibration Certificate (each)
Dual-Range Meter reads both lux and foot-candles on a large 1/2-inch-high display. An analog output of 0.1 millivolt per digit allows readings to be captured by a recorder. Precision selenium photovoltaic cells and microprocessor provide for a fast-response sampling rate of 0.4 seconds and an automatic zero adjustment. Display update rate may be set to 1 or 2 seconds.
To assure accuracy an individually serial-numbered Traceable® Certificate is provided from our ISO 17025 calibration laboratory accredited by A2LA. It indicates traceability to standards provided by NIST (National Institute of Standards and Technology).
Monitor and store results
DATA HOLD button freezes the display to capture readings. Precise photodiode and color-correction filter provide cosine- and color-corrected measurements.
Readings in lux and foot-candles
Dual-Range Meter measures lux in three ranges: 0 to 1999 (1 lux resolution), 2000 to 19,990 (10 lux resolution), and 20,000 to 50,000 (100 lux resolution). Readings in foot-candles: 0 to 199.9 (0.1 Fc resolution), 200 to 1999 (1 Fc resolution), 2000 to 5000 (10 Fc resolution). For accuracy see chart. Unit is supplied with 2 inch diameter photocell, 40-inch cable, Traceable® Certificate, 9-volt alkaline battery, and recorder output. Size is 6-1/2 x 3 x 1-1/2 inches. Weight is 10 ounces. Replacement battery Cat. No. 1112.
Dual-Range Meter reads both lux and foot-candles on a large 1/2-inch-high display. An analog output of 0.1 millivolt per digit allows readings to be captured by a recorder. Precision selenium photovoltaic cells and microprocessor provide for a fast-response sampling rate of 0.4 seconds and an automatic zero adjustment. Display update rate may be set to 1 or 2 seconds.
To assure accuracy an individually serial-numbered Traceable® Certificate is provided from our ISO 17025 calibration laboratory accredited by A2LA. It indicates traceability to standards provided by NIST (National Institute of Standards and Technology).
Monitor and store results
DATA HOLD button freezes the display to capture readings. Precise photodiode and color-correction filter provide cosine- and color-corrected measurements.
Readings in lux and foot-candles
Dual-Range Meter measures lux in three ranges: 0 to 1999 (1 lux resolution), 2000 to 19,990 (10 lux resolution), and 20,000 to 50,000 (100 lux resolution). Readings in foot-candles: 0 to 199.9 (0.1 Fc resolution), 200 to 1999 (1 Fc resolution), 2000 to 5000 (10 Fc resolution). For accuracy see chart. Unit is supplied with 2 inch diameter photocell, 40-inch cable, Traceable® Certificate, 9-volt alkaline battery, and recorder output. Size is 6-1/2 x 3 x 1-1/2 inches. Weight is 10 ounces. Replacement battery Cat. No. 1112.
| Product Type: | Light Meter |
| Brand: | Traceable |
| Range: | 0 to 1,999 / 2000 to 19,999 / 20,000 to 50,000 (lux), 0 to 199.9 / 200 to 1999 2000 to 5000 (Fc) |
| Resolution: | 1 / 10 / 100 (lux), 0.1 / 1 / 10 (Fc) |
| Accuracy: | ±5% reading + 10 / ±5% reading + 100 / ±5% reading + 100 (lux), ±5% reading + 1 / ±5% reading + 10 / ±5% reading + 100 (Fc) |
| Overall Dimensions: | 6-1/2 x 3 x 1-1/2 inches |
| Includes: | Traceable® Certificate |
