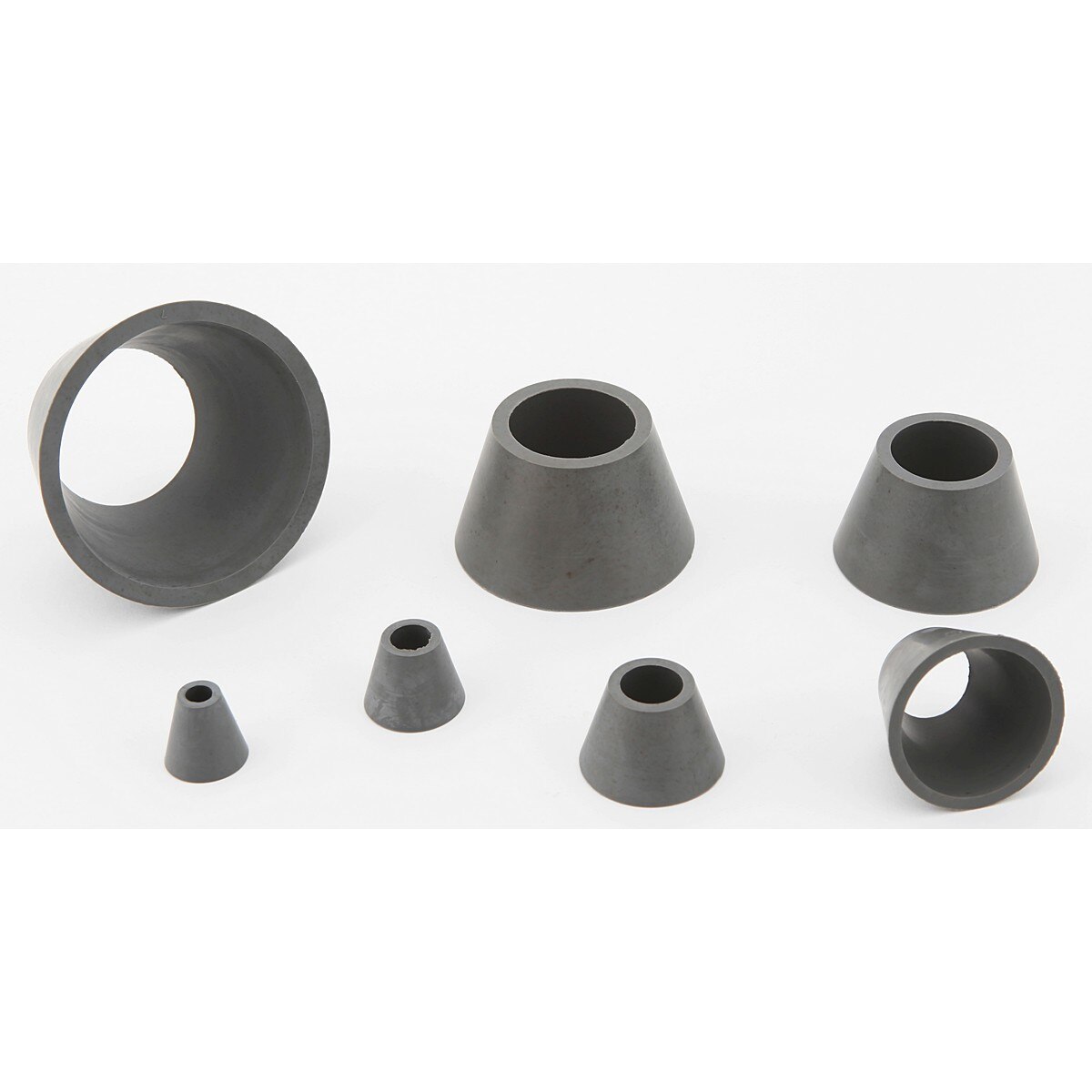

Kartell Supports for Buchner Funnels, Neoprene Adapters (Set of 7)
Images are for representation only. Actual product may differ in size, color or options.
Kartell Supports for Buchner Funnels, Neoprene Adapters (Set of 7)
The 242864-0000 Kartell support set contains seven neoprene rubber adapters sized to fit a range of Buchner funnel tapers, providing cushioned support and a secure seal between funnels and filtration flasks. Supplied as one kit containing all seven adapters; closures are not applicable.
Specifications
- Part Number: 242864-0000
- Material: Neoprene rubber
- Contents: Set of 7 adapters (one each size)
- Application: Support and seal Buchner funnels to flasks and filtration assemblies
- Quantity per Pack: Set of 7
Adapter Dimensions
| Adapter | Outer O.D. mm | Inner I.D. mm | Height mm |
|---|---|---|---|
| 1 | 21 | 11 | 21 |
| 2 | 27 | 16 | 22 |
| 3 | 37 | 22 | 25 |
| 4 | 46 | 29 | 29 |
| 5 | 58 | 38 | 35 |
| 6 | 69 | 45 | 40 |
| 7 | 86 | 57 | 45 |
Applications
Ideal for laboratory filtration setups using Buchner funnels; adapters cushion the funnel and help create a stable, leak-resistant connection to filter flasks.
| Brand: | Dynalon |
| Material: | Neoprene |
| Overall Dimensions: | 7 x 6 x 6 in |
