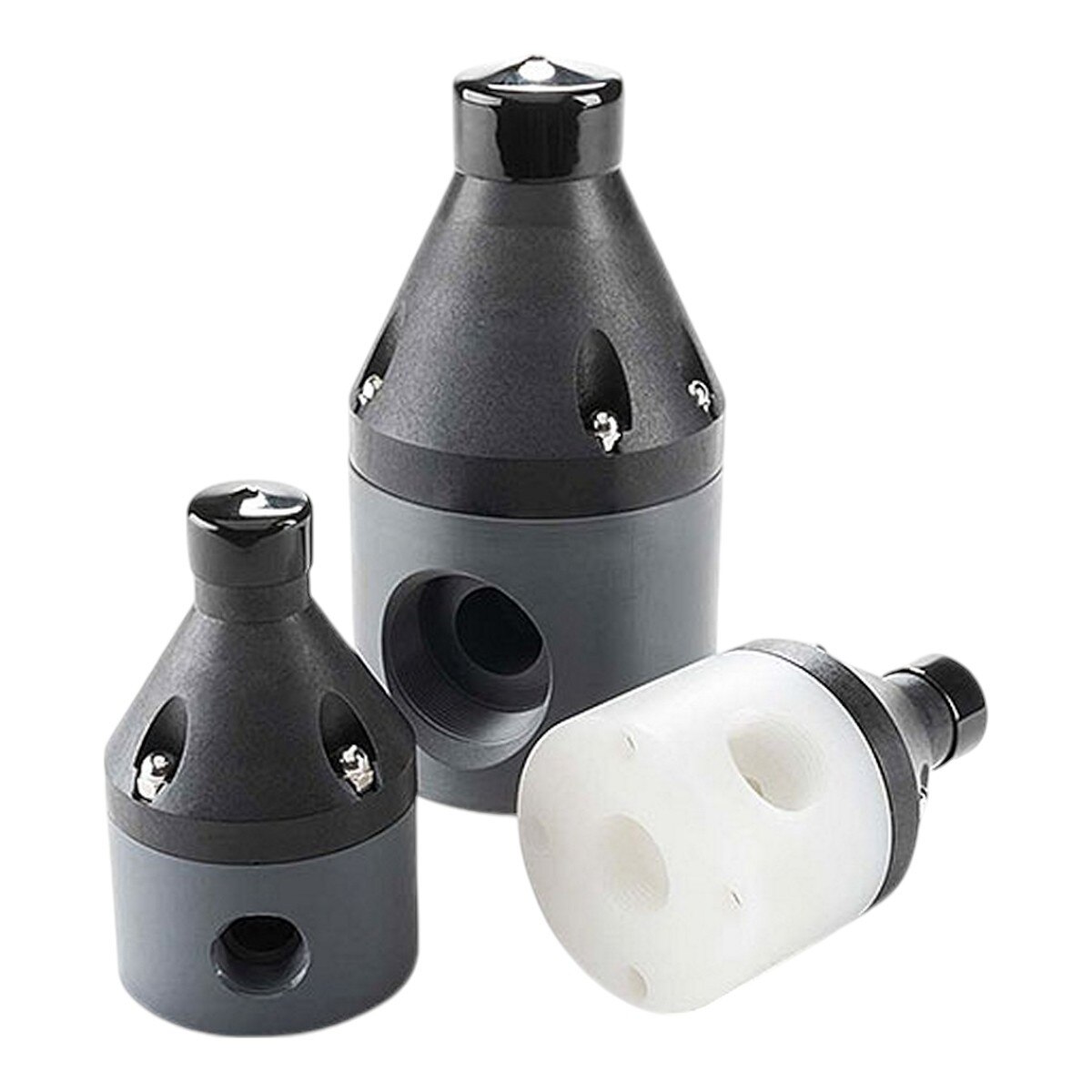

Griffco G-Series Pressure Relief Valve (1 to 10 bar, PVDF, DN15 Flange)
Images are for representation only. Actual product may differ in size, color or options.
Griffco G-Series Pressure Relief Valve (1 to 10 bar, PVDF, DN15 Flange)
Griffco G-Series pressure relief valves are designed to protect chemical feed systems from over pressure damage caused by defective equipment or a blockage in the chemical feed line. Robust construction ensures reliability in the rigorous service of municipal and industrial applications.
| Product Type: | Pressure Relief Valve |
| Brand: | Griffco Valve |
| Range: | 1 to 10 bar |
| Temperature Range: | 300°F (149°C) Maximum |
| Housing: | PVDF Body; Noryl Top |
| Max Pressure (PSI): | 10 bar |
| Diaphragm: | PTFE/EPDM |
| Connections: | DN15 Flange |
