GVI-PRMPG100SF300
Images are for representation only. Actual product may differ in size, color or options.

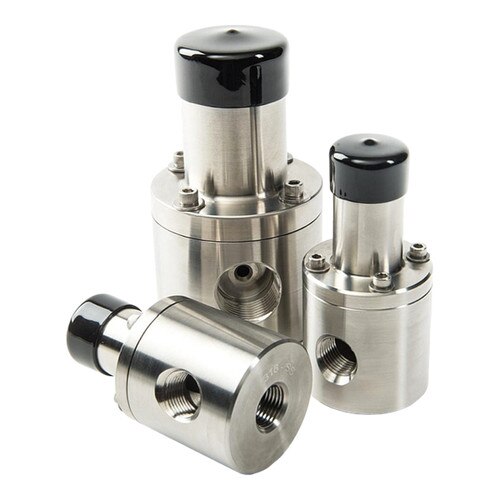

Griffco PRMP-Series Pressure Relief Valve (100 to 600 PSI, 316 SS, 1" Flange)
Griffco PRMP-Series medium pressure relief valves are designed to protect chemical feed systems from over pressure damage caused by defective equipment or a blockage in the chemical feed line. Robust construction ensures reliability in the rigorous service of municipal and industrial applications.
| Product Type: | Pressure Relief Valve |
| Brand: | Griffco Valve |
| Range: | 100 to 600 PSI |
| Temperature Range: | 300°F (149°C) Maximum |
| Housing: | 316 SS Body; 316 SS Top |
| Max Pressure (PSI): | 600 |
| Diaphragm: | PTFE/EPDM |
| Connections: | 1" Flange |
| Notes: | Class 300 Flanges |
