JeioTech VDR-20UG Vacuum Desiccator – 6L UV-Protected Polycarbonate, With Gauge

JeioTech VDR-20UG Vacuum Desiccator – 6L UV-Protected Polycarbonate, With Gauge

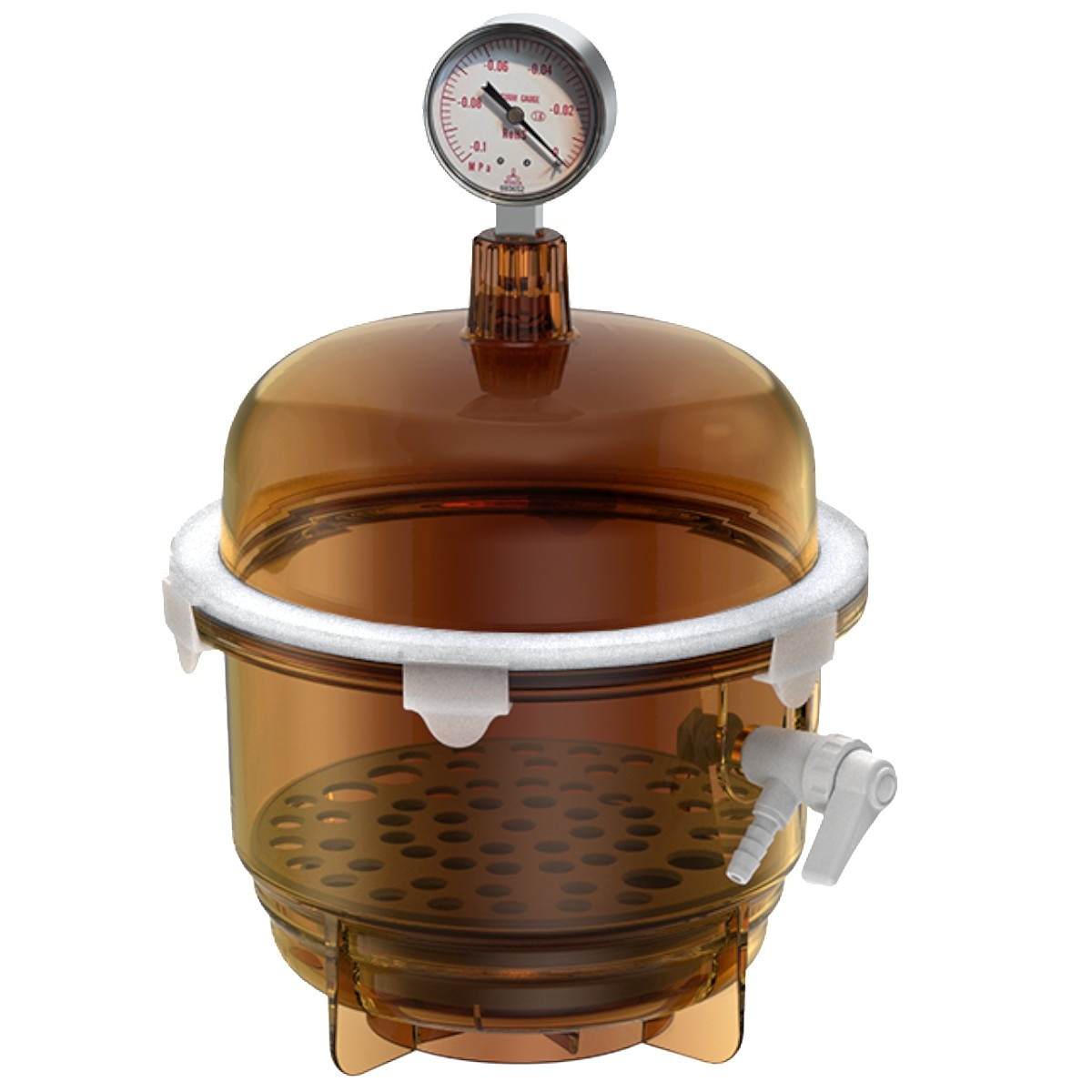

The JeioTech AAAD2041 VDR-20UG vacuum desiccator is a compact, round-style moisture control chamber designed for safe storage of light-sensitive samples. Its amber-tinted polycarbonate construction blocks UV radiation while maintaining excellent impact resistance and visibility. This 6-liter model includes a centrally mounted analog vacuum gauge for easy pressure monitoring, along with a greaseless silicone vacuum seal and 3-way valve for vacuum formation, release, and gas exchange. Ideal for labs requiring visual confirmation of vacuum levels and protection from photodegradation.

Key Features

• Model: VDR-20UG
• Catalog No.: AAAD2041
• Capacity: 6 liters
• Material: UV-blocking polycarbonate lid and base
• Seal: Silicone vacuum seal (greaseless)
• Valve: 3-way valve for vacuum control
• Gauge: Analog vacuum gauge mounted on lid
• Locker: Included for safe transport and pressure retention
• RoHS Compliant: Not applicable for UV models

Dimensions

• Overall size: Ø242 × H354 mm
• Perforated shelf diameter: Ø192 mm
• Desiccant tray size: 159 × 31 mm
• Nozzle diameter: 9.5 mm
• Net weight: 1.7 kg

Performance

• Maximum vacuum: 1 Torr (1.33 × 10⁻⁴ MPa)
• Vacuum retention: Maintains 1 Torr for 72 hours
• Max load per shelf: 15 kg

Applications

• Storage of light-sensitive samples and reagents
• General-purpose vacuum drying
• Chemical, biological, and environmental labs

Accessories

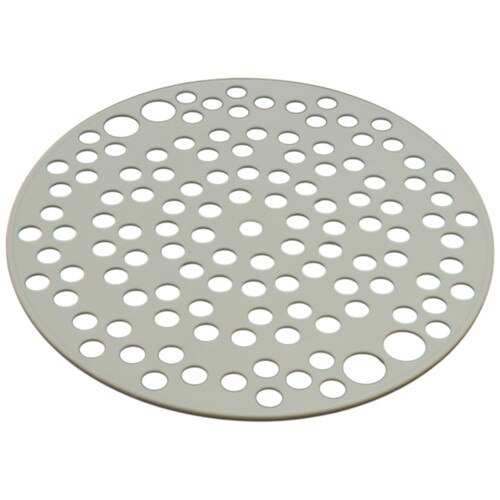

• Perforated shelf: AAAD1511
• Desiccant tray: AAAD1501
• 3-way valve: AAAD1521

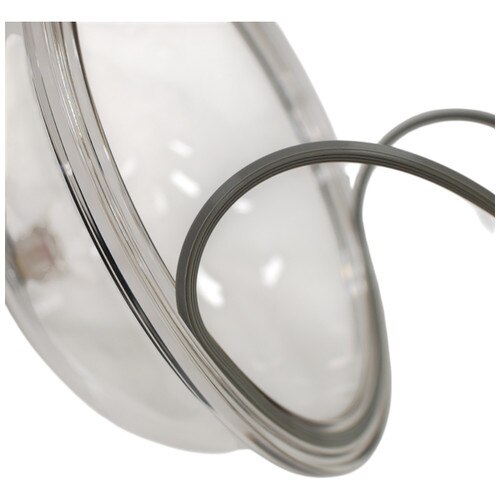

• Silicone vacuum seal: VDR0001

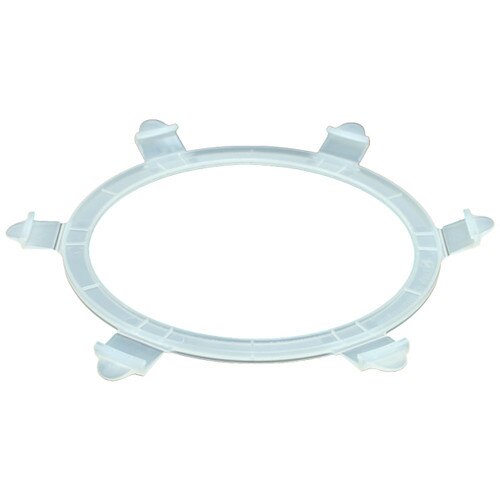

• Locker replacement: VDR0015
• Vacuum gauge: EDA4300
• Silica gel packets: VDR0004 (20g), VDR0005 (40g)
