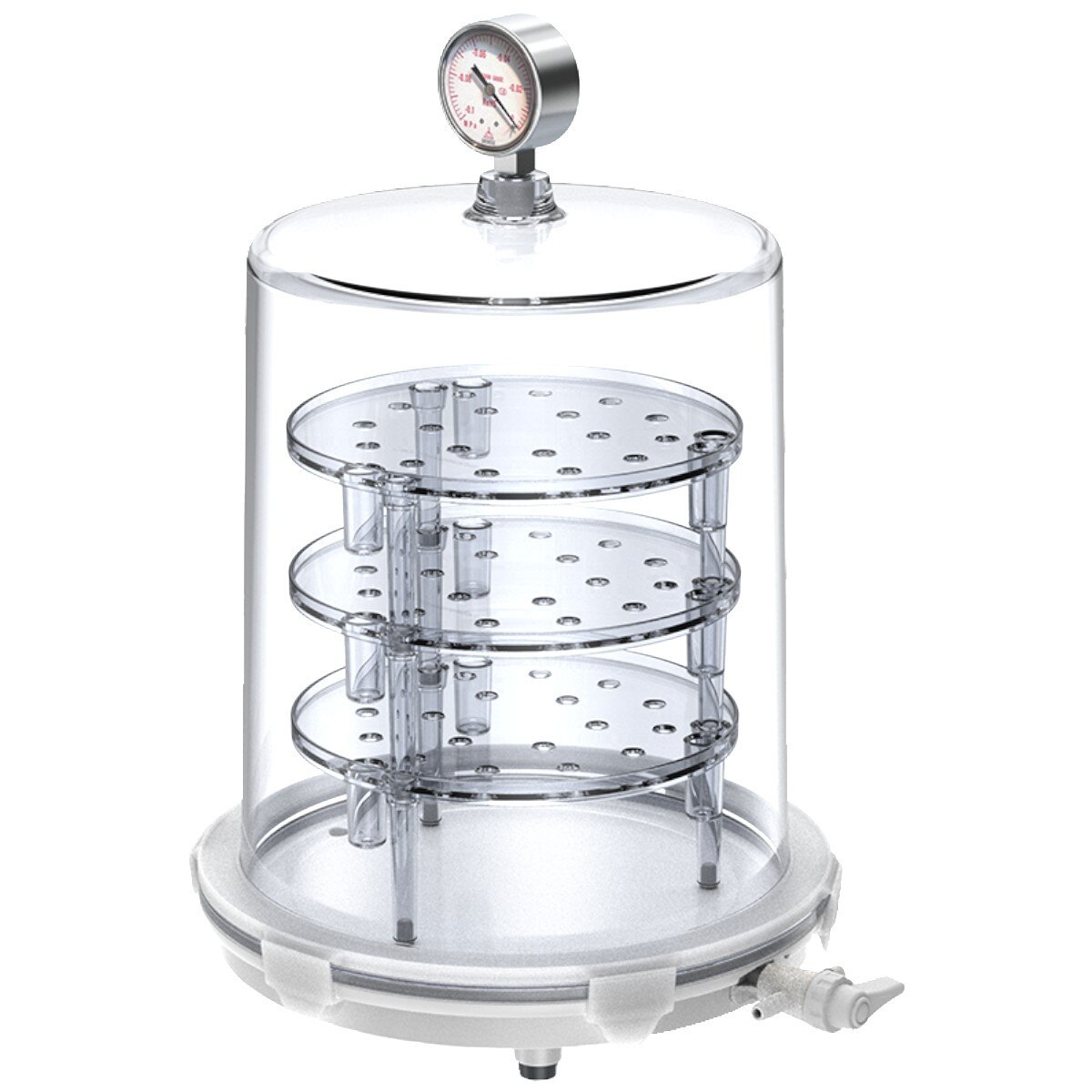

JeioTech VDP-25G Vacuum Desiccator – 16L Clear Polycarbonate Cylinder, With Gauge

JeioTech VDP-25G Vacuum Desiccator – 16L Clear Polycarbonate Cylinder, With Gauge

The JeioTech AAAD3111 VDP-25G vacuum desiccator is a cylindrical-style moisture control chamber designed for safe storage of tall or bulky samples. Its highly transparent polycarbonate body offers excellent impact resistance and chemical durability. This 16-liter model includes a centrally mounted analog vacuum gauge for real-time pressure monitoring, along with a greaseless silicone vacuum seal and a 3-way valve for vacuum draw, release, and gas exchange. Ideal for laboratories requiring vertical clearance and visual confirmation of vacuum levels.

Key Features

• Model: VDP-25G
• Catalog No.: AAAD3111
• Capacity: 16 liters
• Material: Clear polycarbonate body and base
• Seal: Silicone vacuum gasket (greaseless)
• Valve: 3-way stopcock for vacuum control and gas exchange
• Gauge: Analog vacuum gauge mounted on lid
• Locker: Included for safe transport and pressure retention
• RoHS Compliant: Yes

Dimensions

• Internal size: Ø244 × H318 mm
• Overall size: Ø308 × H449 mm
• Nozzle diameter: 9.5 mm
• Net weight: 2.8 kg

Performance

• Maximum vacuum: 1 Torr (1.33 × 10⁻⁴ MPa)
• Vacuum retention: Maintains 1 Torr for 72 hours
• Perforated shelf capacity: Up to 5 shelves (or 3 with wider spacing)

Applications

• Storage of moisture-sensitive and tall samples
• General-purpose vacuum drying
• Chemical, biological, and environmental labs

Accessories

• Perforated shelf: AAAD3511
• Desiccant tray: AAAD1502
• 3-way valve: AAAD3501
• Silicone vacuum seal: VDR0001
• Locker replacement: VDR0015
• Vacuum gauge: EDA4300
• Silica gel packets: VDR0004 (20g), VDR0005 (40g)
