JeioTech VDP-30UG Vacuum Desiccator – 24.9L UV-Protected Polycarbonate Cylinder, With Gauge

JeioTech VDP-30UG Vacuum Desiccator – 24.9L UV-Protected Polycarbonate Cylinder, With Gauge

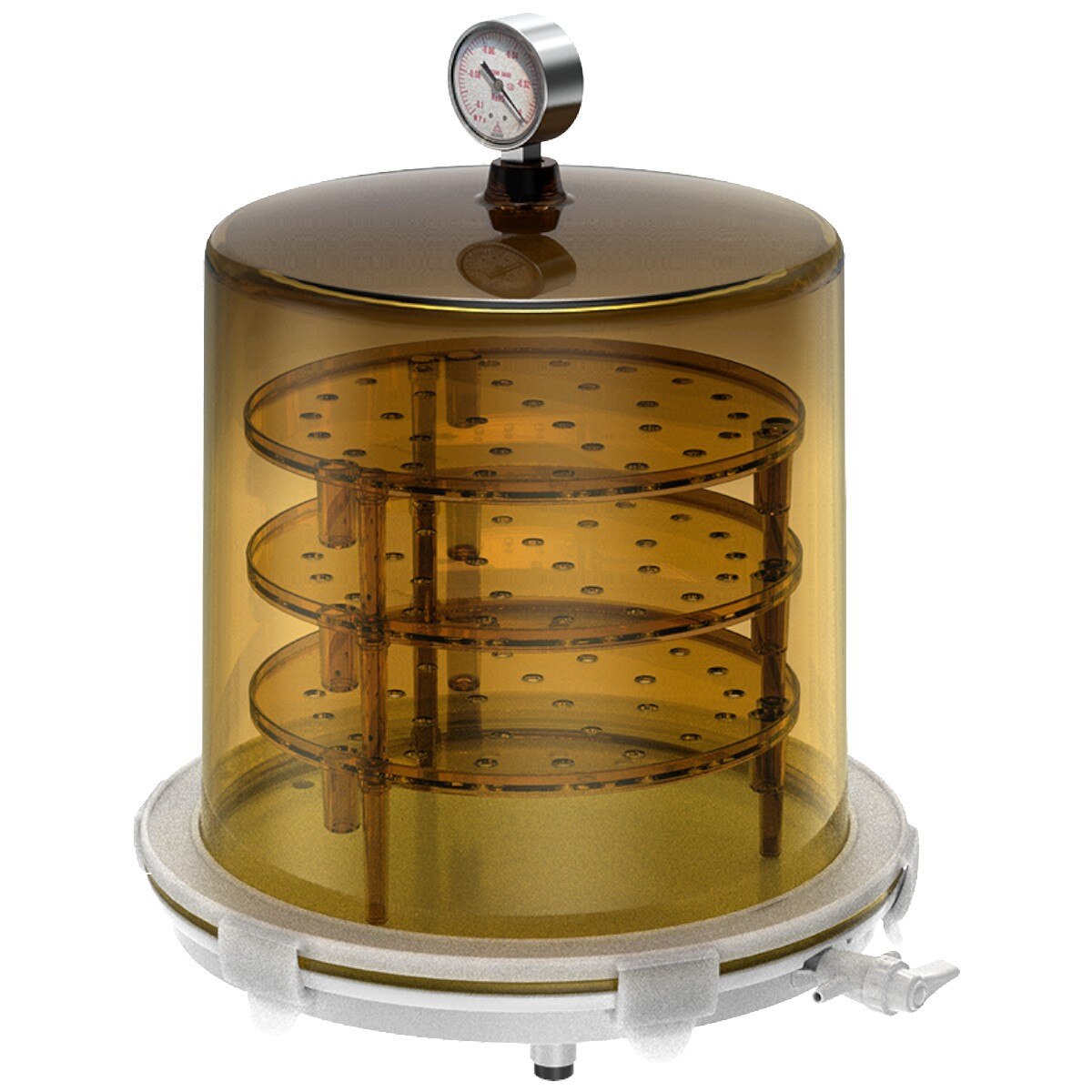

The JeioTech AAAD3321 VDP-30UG vacuum desiccator is a high-capacity cylindrical-style moisture control chamber designed for safe storage of tall, light-sensitive samples. Its amber-tinted polycarbonate body blocks UV radiation while offering excellent impact resistance and chemical durability. This 24.9-liter model includes a centrally mounted analog vacuum gauge for real-time pressure monitoring, along with a greaseless silicone vacuum seal and a 3-way valve for vacuum draw, release, and gas exchange. Ideal for laboratories requiring vertical clearance, visual vacuum feedback, and protection from photodegradation.

Key Features

• Model: VDP-30UG
• Catalog No.: AAAD3321
• Capacity: 24.9 liters
• Material: UV-blocking polycarbonate body and base
• Seal: Silicone vacuum gasket (greaseless)
• Valve: 3-way stopcock for vacuum control and gas exchange
• Gauge: Analog vacuum gauge mounted on lid
• Locker: Included for safe transport and pressure retention
• RoHS Compliant: Not applicable for UV models

Dimensions

• Internal size: Ø305 × H322 mm
• Overall size: Ø387 × H459 mm
• Nozzle diameter: 9.5 mm
• Net weight: 4.1 kg

Performance

• Maximum vacuum: 1 Torr (1.33 × 10⁻⁴ MPa)
• Vacuum retention: Maintains 1 Torr for 72 hours
• Perforated shelf capacity: Up to 5 shelves (or 3 with wider spacing)

Applications

• Storage of moisture-sensitive and tall light-sensitive samples
• General-purpose vacuum drying
• Chemical, biological, and environmental labs

Accessories

• Perforated shelf: AAAD3512
• Desiccant tray: AAAD1503
• 3-way valve: AAAD3501
• Silicone vacuum seal: VDR0001
• Locker replacement: VDR0015
• Vacuum gauge: EDA4300
• Silica gel packets: VDR0004 (20g), VDR0005 (40g)
