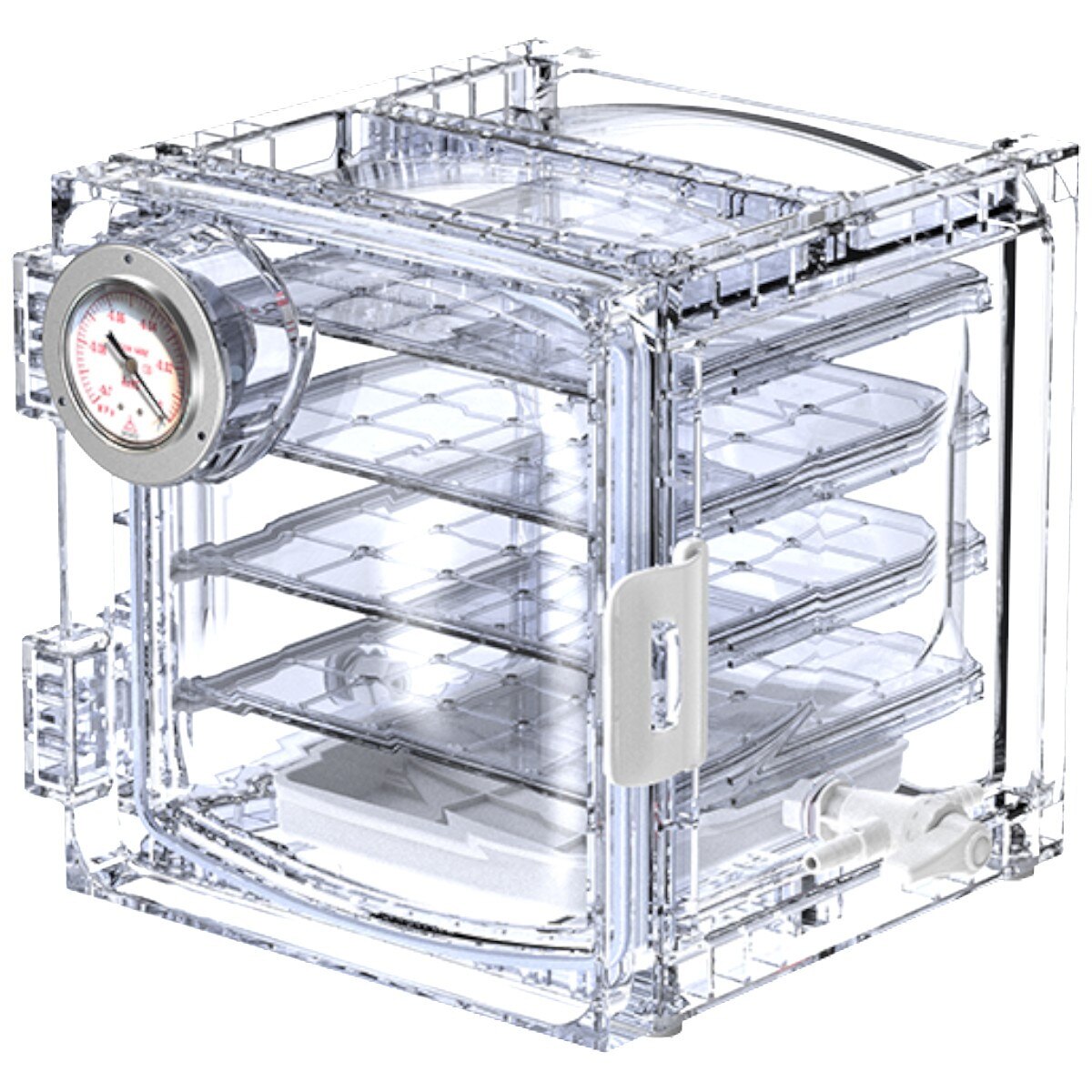

JeioTech VDC-11 Vacuum Desiccator – 11L Clear Polycarbonate, Cubic Type

The JeioTech AAAD4001 VDC-11 vacuum desiccator is a compact cubic-style moisture control chamber designed for safe storage of sensitive samples. Its integrally molded polycarbonate body ensures exceptional vacuum retention and structural durability. With a 3-way valve for vacuum draw and release, and a greaseless silicone seal, this 11-liter unit is ideal for labs requiring reliable vacuum performance in a space-efficient footprint.

Key Features

• Model: VDC-11
• Catalog No.: AAAD4001
• Capacity: 11 liters
• Material: Clear polycarbonate body and door
• Seal: Silicone vacuum gasket (greaseless)
• Valve: 3-way stopcock for vacuum control and gas exchange
• Stackable: Yes, for space-saving lab setups
• RoHS Compliant: Yes

Dimensions

• Internal size: 248 × 254 × 238 mm
• Overall size: 322 × 285 × 271 mm
• Perforated shelf size: 202 × 204 × 6.5 mm
• Desiccant tray size: 158 × 194 × 24 mm
• Nozzle diameter: 9.5 mm
• Net weight: 4.2 kg

Performance

• Maximum vacuum: 1 Torr (1.33 × 10⁻⁴ MPa)
• Vacuum retention: Maintains 1 Torr for 72 hours
• Shelf capacity: Up to 4 shelves
• Max load per shelf: 3 kg

Applications

• Moisture-sensitive sample storage
• General-purpose vacuum drying
• Chemical, biological, and environmental labs

Accessories

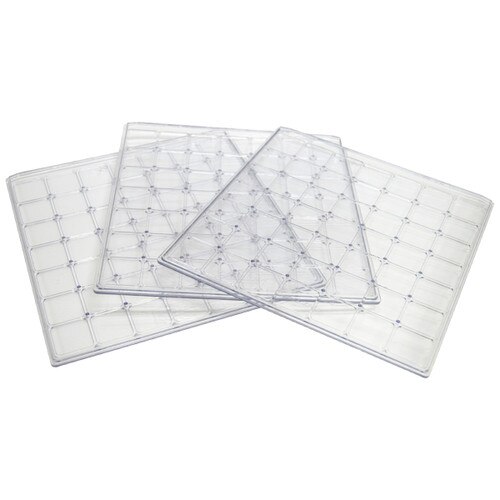

• Perforated shelf: VDC0035
• Desiccant tray: VDC0037

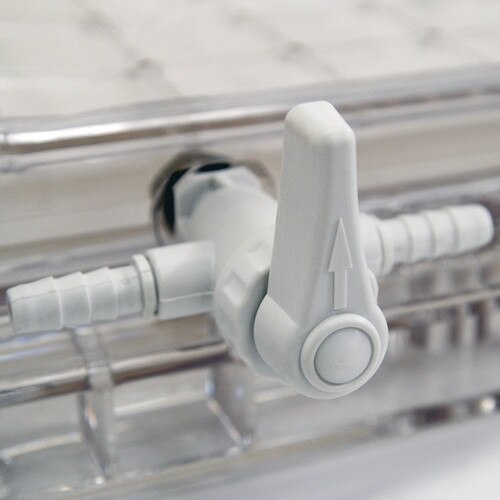

• 3-way valve: AAAD4501

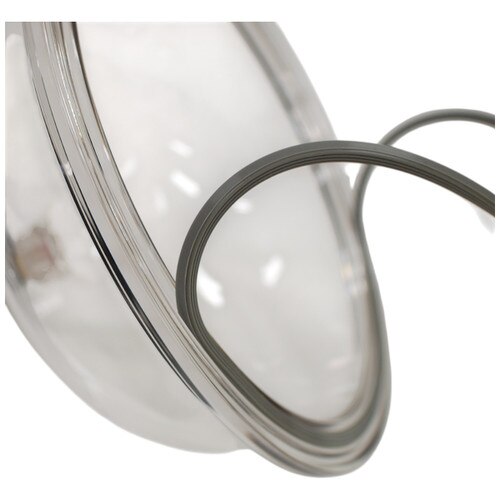

• Silicone vacuum seal: VDC0032
• Locker replacement: VDC0015
• Silica gel packets: BEA00078603 (1kg)
