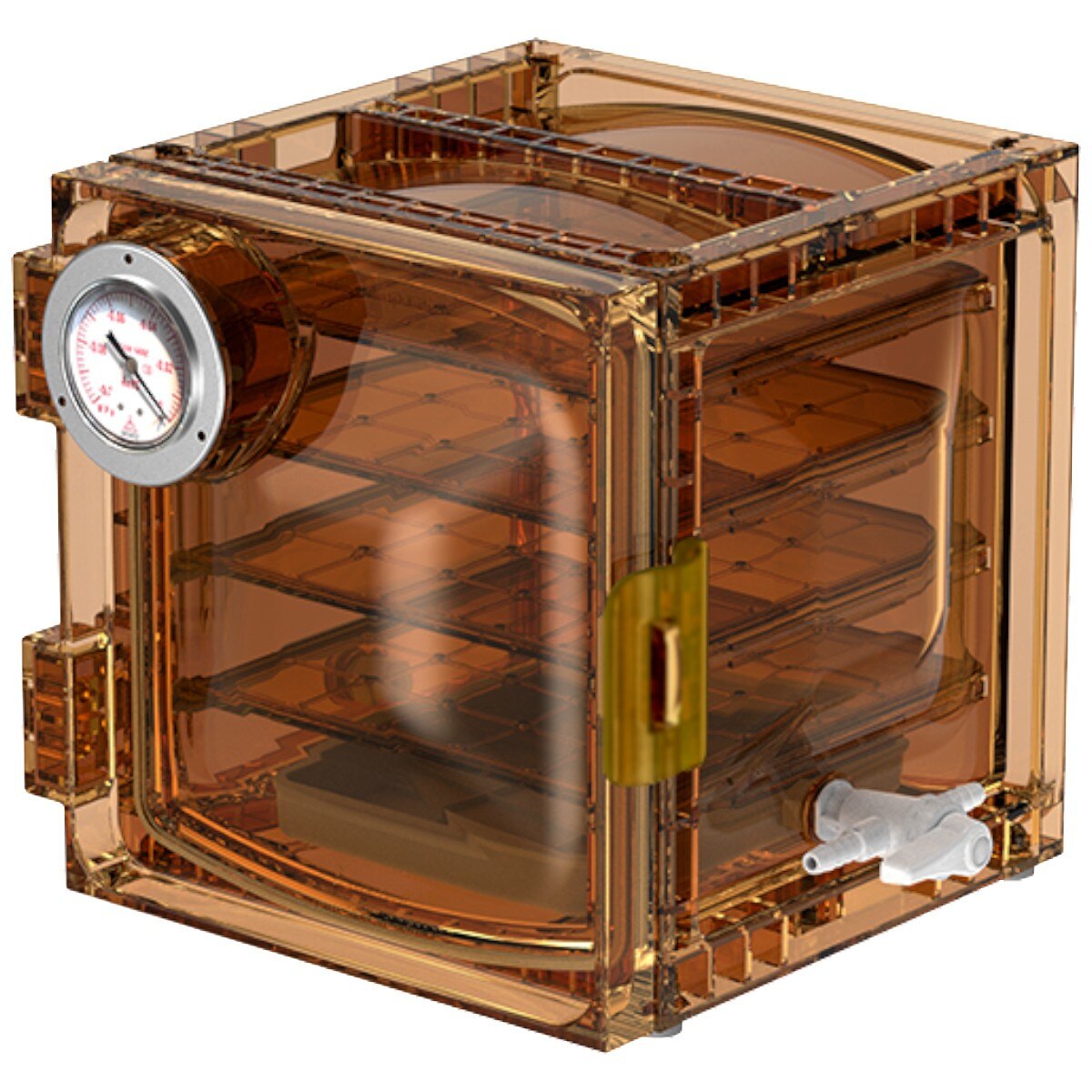

JeioTech VDC-11U Vacuum Desiccator – 11L UV-Protected Polycarbonate, Cubic Type

JeioTech VDC-11U Vacuum Desiccator – 11L UV-Protected Polycarbonate, Cubic Type

The JeioTech AAAD4101 VDC-11U vacuum desiccator is a compact cubic-style moisture control chamber designed for safe storage of light-sensitive samples. Its amber-tinted polycarbonate body blocks UV radiation while maintaining excellent vacuum retention and structural durability. With a 3-way valve for vacuum draw and release, and a greaseless silicone seal, this 11-liter unit is ideal for laboratories working with photosensitive reagents in space-constrained environments.

Key Features

• Model: VDC-11U
• Catalog No.: AAAD4101
• Capacity: 11 liters
• Material: UV-blocking polycarbonate body and door
• Seal: Silicone vacuum gasket (greaseless)
• Valve: 3-way stopcock for vacuum control and gas exchange
• Stackable: Yes, for space-saving lab setups
• RoHS Compliant: Not applicable for UV models

Dimensions

• Internal size: 248 × 254 × 238 mm
• Overall size: 322 × 285 × 271 mm
• Perforated shelf size: 202 × 204 × 6.5 mm
• Desiccant tray size: 158 × 194 × 24 mm
• Nozzle diameter: 9.5 mm
• Net weight: 4.2 kg

Performance

• Maximum vacuum: 1 Torr (1.33 × 10⁻⁴ MPa)
• Vacuum retention: Maintains 1 Torr for 72 hours
• Shelf capacity: Up to 4 shelves
• Max load per shelf: 3 kg

Applications

• Storage of light-sensitive samples and reagents
• General-purpose vacuum drying
• Chemical, biological, and environmental labs

Accessories

• Perforated shelf: VDC0035
• Desiccant tray: VDC0037
• 3-way valve: AAAD4501
• Silicone vacuum seal: VDC0032
• Locker replacement: VDC0015
• Silica gel packets: BEA00078603 (1kg)
