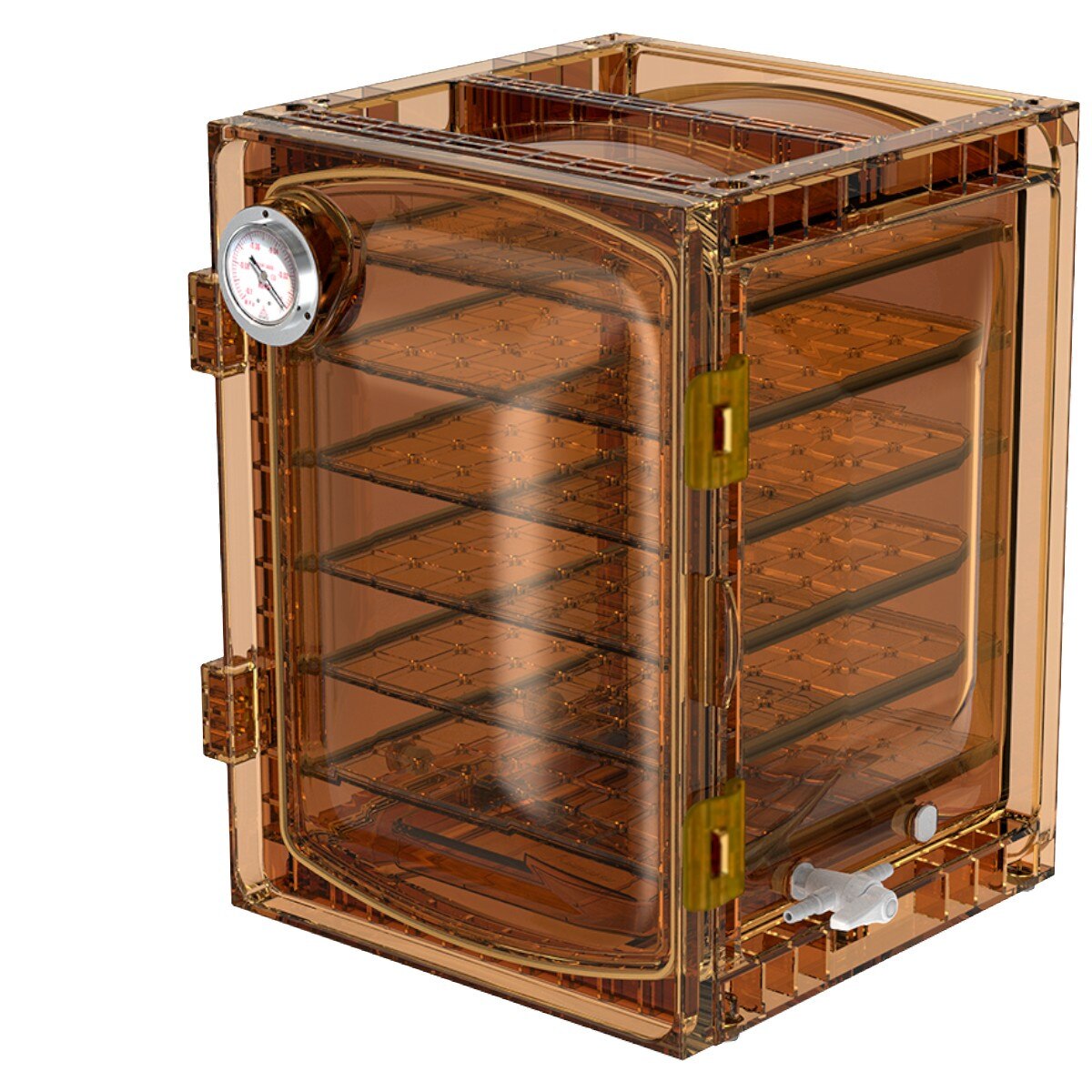

JeioTech VDC-41U Vacuum Desiccator – 45L UV-Protected Polycarbonate, Cubic Type

The JeioTech AAAD4131 VDC-41U vacuum desiccator is the largest UV-protected model in the cubic-style series, designed for safe storage of high-volume, light-sensitive samples. Its amber-tinted polycarbonate body blocks UV radiation while maintaining excellent vacuum retention and structural durability. With a 3-way valve for vacuum draw and release, and a greaseless silicone seal, this 45-liter unit supports multi-level sample storage and stackable lab configurations. Ideal for laboratories requiring maximum internal space and protection from photodegradation.

Key Features

• Model: VDC-41U
• Catalog No.: AAAD4131
• Capacity: 45 liters
• Material: UV-blocking polycarbonate body and door
• Seal: Silicone vacuum gasket (greaseless)
• Valve: 3-way stopcock for vacuum control and gas exchange
• Stackable: Yes, for space-saving lab setups
• RoHS Compliant: Not applicable for UV models

Dimensions

• Internal size: 355 × 374 × 445 mm
• Overall size: 420 × 397 × 491 mm
• Perforated shelf size: 289 × 304 × 11 mm
• Desiccant tray size: 218 × 268 × 26 mm
• Nozzle diameter: 9.5 mm
• Net weight: 12.2 kg

Performance

• Maximum vacuum: 1 Torr (1.33 × 10⁻⁴ MPa)
• Vacuum retention: Maintains 1 Torr for 72 hours
• Shelf capacity: Up to 6 shelves
• Max load per shelf: 5 kg

Applications

• Storage of light-sensitive samples and reagents
• General-purpose vacuum drying
• Chemical, biological, and environmental labs

Accessories

• Perforated shelf: VDC0003
• Desiccant tray: VDC0005
• 3-way valve: AAAD4501

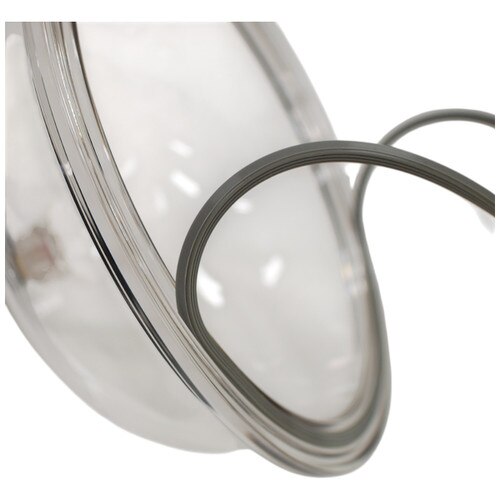

• Silicone vacuum seal: VDC0033
• Locker replacement: VDC0015
• Silica gel packets: BEA00078603 (1kg)
