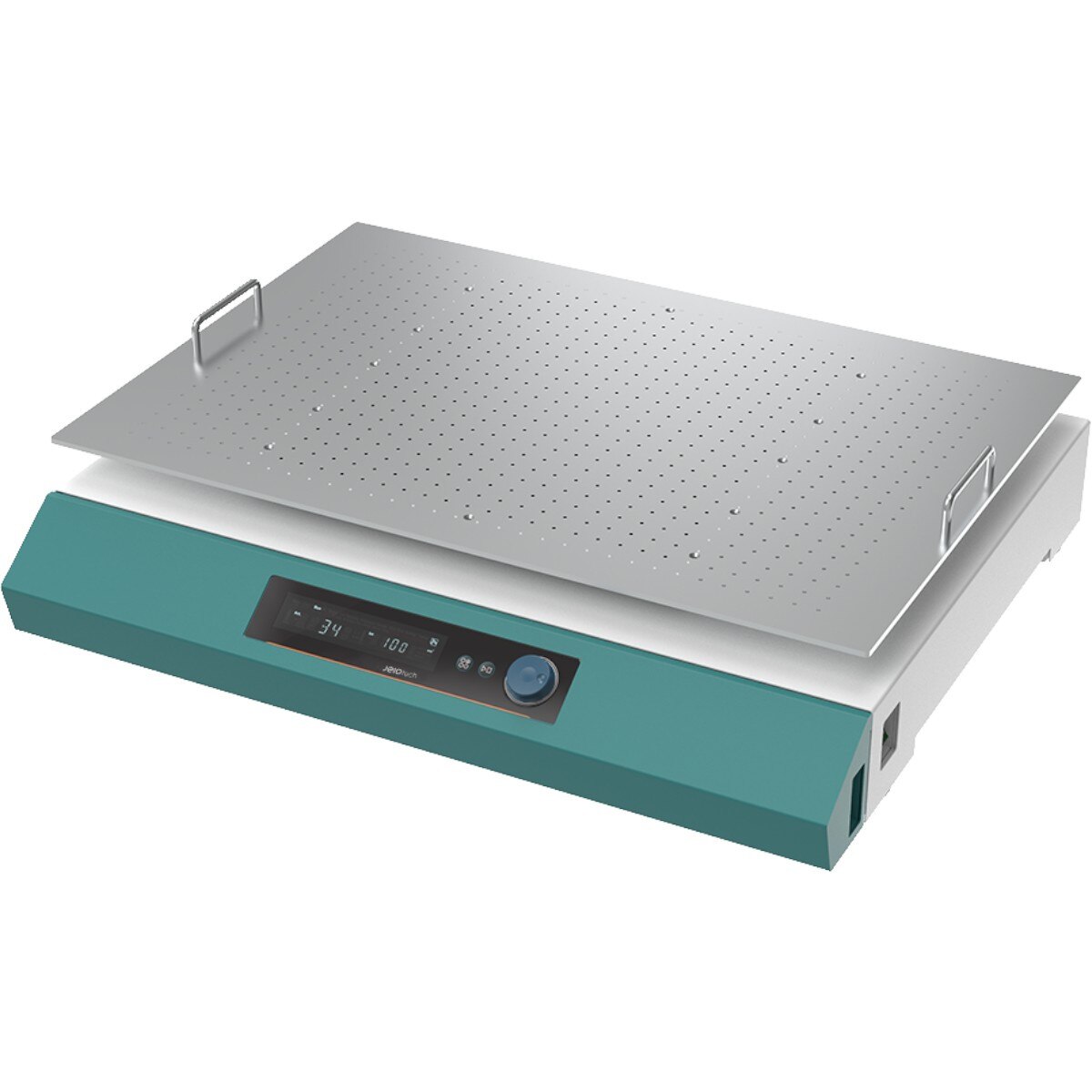

OS-7200 Shaker (Orbital, 2.0"), 115 VAC

OS-7200 Shaker (Orbital, 2.0"), 115 VAC

Jeio Tech OS-7200 is a heavy-duty, low-profile orbital shaker built for laboratories requiring vigorous mixing of large or high-mass vessels. A direct-drive brushless DC motor with a triple-cam mechanism delivers smooth, maintenance-free motion across a 30 – 300 rpm speed range, even under loads up to 35 kg. The 50.8 mm (2 in) orbital diameter maximizes aeration in culture flasks and viscous liquid agitation, making it ideal for demanding protocols. Microprocessor PID control ensures precise speed regulation, while the VFD readout and membrane keypad provide intuitive adjustments and real-time monitoring.

Key Features:

• Wide Speed & Load Capacity: Maintains 300 rpm with 23 kg and 250 rpm with 35 kg; "Best Effort Run" auto-adjusts speed under overload conditions.
• Large 2-inch Orbit: 50.8 mm stroke delivers vigorous mixing for flasks up to 50 L when used with optional holders.
• Stable Low-Profile Design: 151 mm body height minimizes vibration and ensures secure vessel placement.
• Smooth Start/Stop Logic: Prevents splash-over and glassware damage during acceleration/deceleration.
• Data Connectivity: Built-in RS-232 and USB ports allow PC control and data logging; compatible with LC GreenBox for remote monitoring (sold separately).
• Safety Suite: Speed-deviation alarm, over-current protection, stalled-platform detection, and auto-restart after power loss.
• User-Centric Interface:Bright VFD, membrane keypad, incremental rpm selection (1/5/10 rpm), and repeat-position stop (platform returns to the same orientation after stopping).
• Platform Flexibility: Universal platform, flask clamps, tube racks, and heavy-duty carboy holders (up to 50 L) available for customization.

Technical Specifications:

• Motion Type: Orbital
• Orbital Diameter: 50.8 mm (2 in)
• Speed Range: 30 – 300 rpm
• Speed Stability: ±1 rpm (≤ 100 rpm) / ±1 % (> 100 rpm)
• Maximum Load: 300 rpm @ 23 kg • 250 rpm @ 35 kg
• Timer Range: 1 min – 999 h 59 min
• Platform Dimensions: 755 × 520 mm (29.6 × 20.5 in)
• Overall Dimensions: 755 × 627 × 151 mm (29.7 × 24.7 × 5.9 in)
• Net Weight: 117 kg (257.9 lb)
• Electrical (SKU AAH3D1565U): 120 V ± 10 %, 50/60 Hz, 0.8 A
• Materials: Powder-coated steel body
• Included: Shaker body, power cord, user manual
• Optional Accessories: Universal platform, flask clamps, tube racks, heavy-duty carboy holders, LC GreenBox

Jeio Tech OS-7200 is the go-to choice for laboratories requiring high-mass, wide-orbit shaking with digital precision, superior stability, and remote monitoring capabilities. Let me know if you need any refinements!
