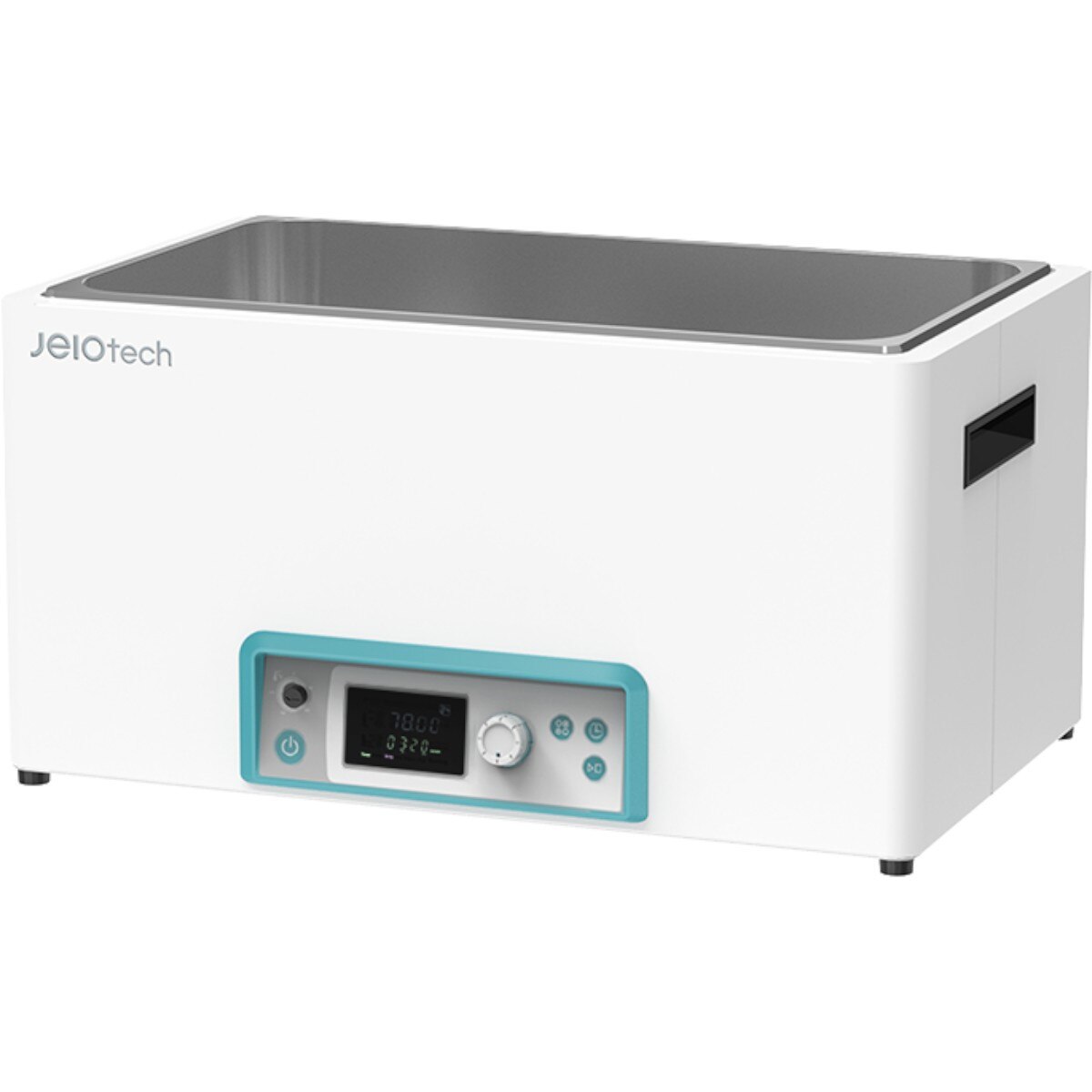

JeioTech BW3-20G Water Bath – 20 L (0.7 cu ft), 120 V

This 20 L water bath expands capacity for high-volume heating applications while maintaining ambient + 7 °C to 100 °C control. The microprocessor PID controller offers automatic tuning and calibration, dual timer modes, and memory for three setpoints. Its corrosion-resistant stainless-steel tank and low-profile design accommodate large glassware and multiple flasks, while splash-proof keypad and safety interlocks ensure reliable operation.

Specifications

• Catalog Number: AAH41326U
• Model: BW3-20G
• Capacity: 20 L / 0.7 cu ft
• Temperature Range: Ambient + 7 °C to 100 °C
• Controller: Microprocessor PID with auto-tuning and calibration
• Display: Digital LED (0.1 °C resolution)
• Timer Modes: Dual wait on/off timer (1 min to 99 hr 59 min)
• Memory Function: Stores up to three set temperatures
• Reservoir Material: Corrosion-resistant stainless steel
• Reservoir Design: Low-profile for easy loading of large vessels
• Safety Protections: Low fluid level, dry-run, over-temperature, over-current
• Keypad: Splash-proof
• Voltage: 120 V ± 10%, 50/60 Hz

Features

• Extra-large 20 L capacity
• PID control with auto-calibration
• Programmable timer and setpoint memory
• Durable stainless-steel reservoir
• Comprehensive safety interlocks

Applications

• High-volume reagent preparation
• Batch heating of multiple vessels
• Sample incubation and quality-control assays
• Industrial and research lab heating tasks
