KOF-1.25-80-4-12-2
Images are for representation only. Actual product may differ in size, color or options.

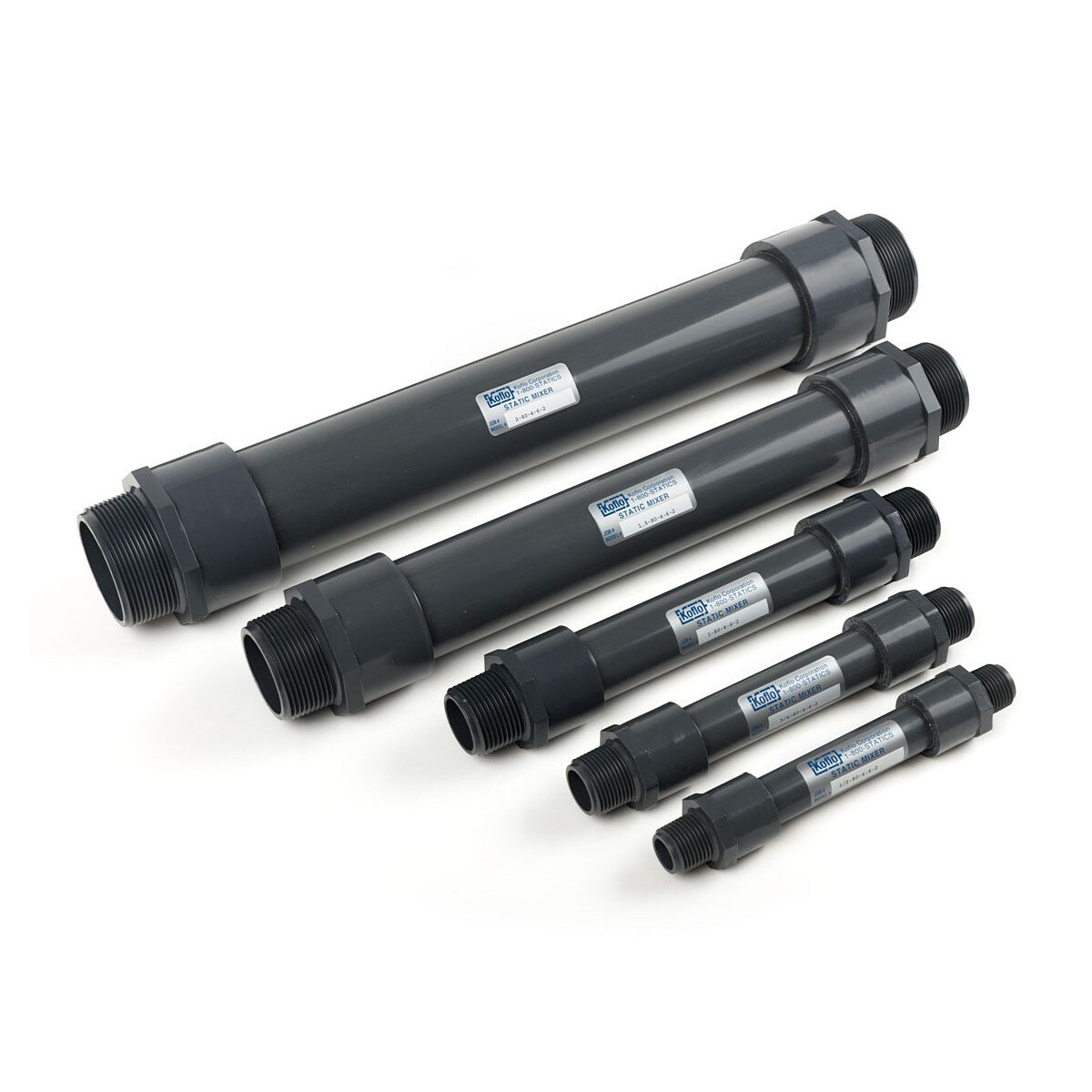

1.25" MNPT Static Mixer 12 elements, 25" long, Gray PVC SCH 80
Koflo Gray PVC static mixers are solvent cemented into the PVC housing to create a high-strength bond and edge-seal the mixer to the wall to prevent liquid from "slip streaming" around the mixing elements and are in stock for immediate delivery.
Typical Applications
- Admixing of water treatment chemicals.
- pH control.
- Chlorination and ozonation.
- Process control sampling.
Static mixers are versatile mixing devices that can be used in a wide range of industries and applications beyond those listed above.
Features
Housing: Schedule 80 Clear PVC.
Elements: Koflo Blade™ Style PVC.
End Connections: Male NPT (Threaded Ends).
- PVC construction provides a durable and cost-effective mixing option.
- Mixers are edge-sealed using a high-strength PVC solvent cement to ensure efficient mixing.
- Third party certified to NSF / ANSI 61.
| Model Number | Pipe Dia. MNPT Ends | Number of Elements | Length | Weight | Max. Working Pressure (PSI @ 75°F) | Max. Working Temperature (°F) |
|---|---|---|---|---|---|---|
| 1.25-80-4-12-2 | 1.25" | 12 | 25" | 1.45 lbs | 260 | 120 |
| Product Type: | Static Mixer |
| Brand: | Koflo |
| Material: | PVC |
| Color: | Gray |
| Certifications: | NSF 61 Certified |
