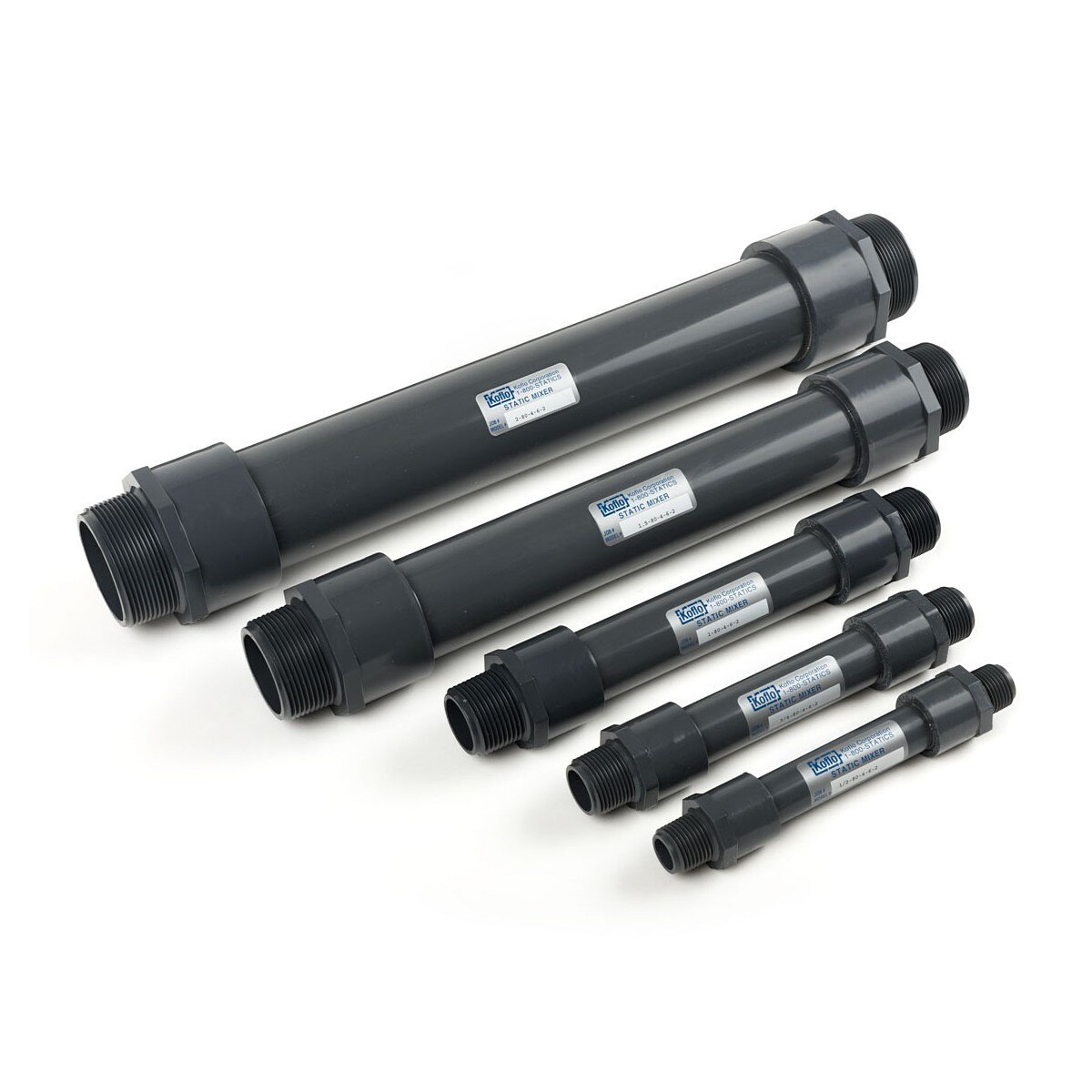

1.25" MNPT Static Mixer 6 elements, 14" long, Gray PVC SCH 80
Images are for representation only. Actual product may differ in size, color or options.
1.25" MNPT Static Mixer 6 elements, 14" long, Gray PVC SCH 80
Koflo Gray PVC static mixers are solvent cemented into the PVC housing to create a high-strength bond and edge-seal the mixer to the wall to prevent liquid from "slip streaming" around the mixing elements and are in stock for immediate delivery.
Typical Applications
Features
Housing: Schedule 80 Clear PVC.
Elements: Koflo Blade™ Style PVC.
End Connections: Male NPT (Threaded Ends).
Koflo Gray PVC static mixers are solvent cemented into the PVC housing to create a high-strength bond and edge-seal the mixer to the wall to prevent liquid from "slip streaming" around the mixing elements and are in stock for immediate delivery.
Typical Applications
- Admixing of water treatment chemicals.
- pH control.
- Chlorination and ozonation.
- Process control sampling.
Features
Housing: Schedule 80 Clear PVC.
Elements: Koflo Blade™ Style PVC.
End Connections: Male NPT (Threaded Ends).
- PVC construction provides a durable and cost-effective mixing option.
- Mixers are edge-sealed using a high-strength PVC solvent cement to ensure efficient mixing.
- Third party certified to NSF / ANSI 61.
| Model Number | Pipe Dia. MNPT Ends | Number of Elements | Length | Weight | Max. Working Pressure (PSI @ 75°F) | Max. Working Temperature (°F) |
|---|---|---|---|---|---|---|
| 1.25-80-4-6-2 | 1.25" | 6 | 14" | 0.85 lbs | 260 | 120 |
| Product Type: | Static Mixer |
| Brand: | Koflo |
| Material: | PVC |
| Color: | Gray |
| Certifications: | NSF 61 Certified |
