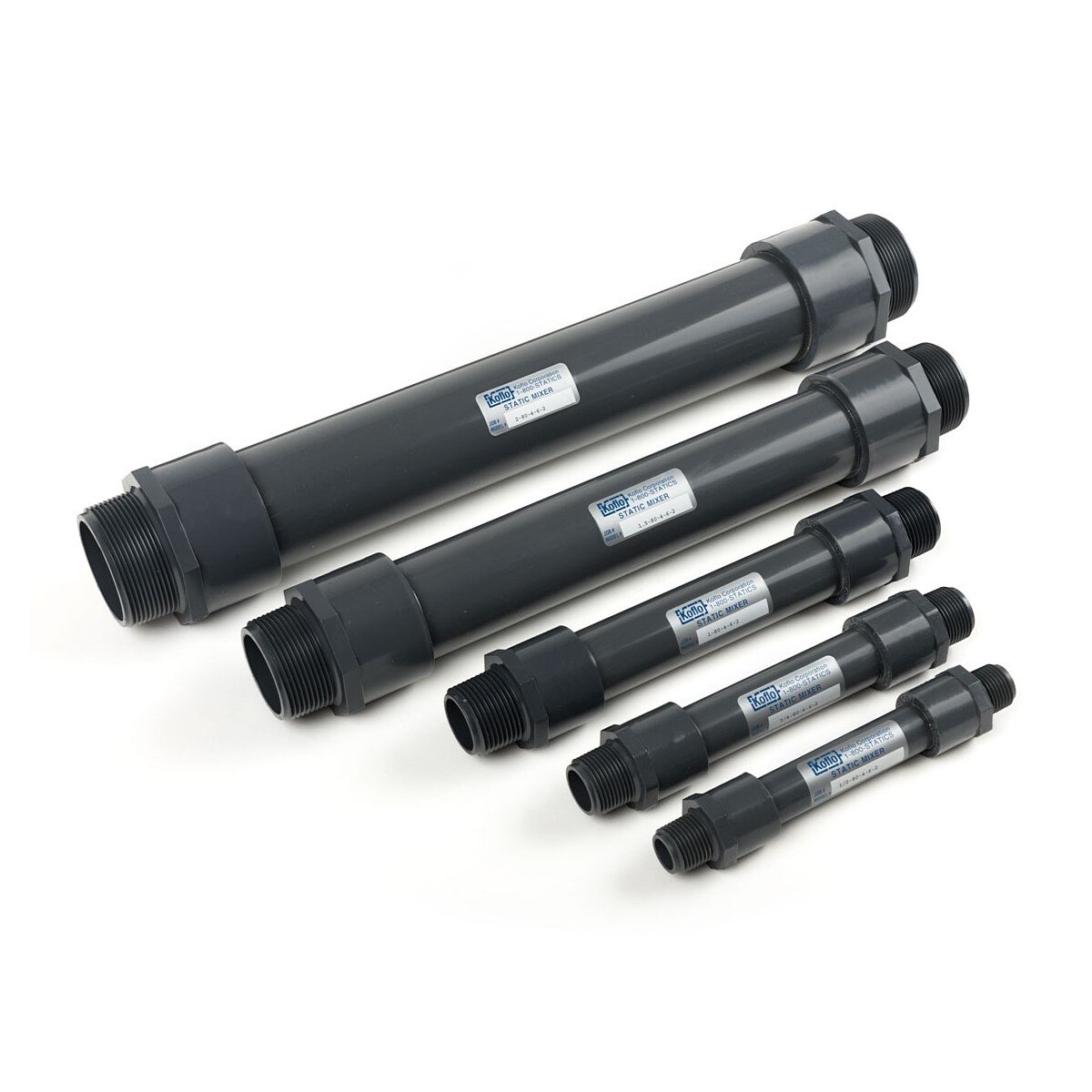

1.5" Gray PVC Static Mixer (6 Elements, 15" Length)
Images are for representation only. Actual product may differ in size, color or options.
1.5" Gray PVC Static Mixer (6 Elements, 15" Length)
Robust 1.5" Schedule 80 PVC static mixer for larger flow systems. Six internal elements provide dependable inline blending for water treatment and chemical conditioning.
Typical Applications
- Admixing of water treatment chemicals
- pH control
- Chlorination and ozonation
- Process control sampling
Features
- Housing: Schedule 80 PVC
- Elements: Koflo Blade™ style PVC
- End Connections: Male NPT (threaded)
- Edge-sealed with high-strength PVC solvent cement
- NSF / ANSI 61 certified
Specifications
- Length: 15"
- Weight: 1.20 lb
- Max Pressure: 240 psi @ 75°F
- Max Temp: 120°F
Model Specifications
| Model Number | Pipe Dia. MNPT Ends | Elements | Length | Weight | Max Pressure @ 75°F | Max Temp (°F) |
|---|---|---|---|---|---|---|
| 1/2-80-4-6-2 | 1/2" | 6 | 7" | 0.19 lb | 420 psi | 120 |
| 1/2-80-4-12-2 | 1/2" | 12 | 11" | 0.28 lb | 420 psi | 120 |
| 3/4-80-4-6-2 | 3/4" | 6 | 8" | 0.30 lb | 340 psi | 120 |
| 3/4-80-4-12-2 | 3/4" | 12 | 14" | 0.45 lb | 340 psi | 120 |
| 1-80-4-6-2 | 1" | 6 | 10" | 0.50 lb | 320 psi | 120 |
| 1-80-4-12-2 | 1" | 12 | 19" | 0.85 lb | 320 psi | 120 |
| 1.25-80-4-6-2 | 1.25" | 6 | 14" | 0.85 lb | 260 psi | 120 |
| 1.25-80-4-12-2 | 1.25" | 12 | 25" | 1.45 lb | 260 psi | 120 |
| 1.5-80-4-6-2 | 1.5" | 6 | 15" | 1.20 lb | 240 psi | 120 |
| 1.5-80-4-12-2 | 1.5" | 12 | 26" | 2.00 lb | 240 psi | 120 |
| 2-80-4-6-2 | 2" | 6 | 18" | 1.95 lb | 200 psi | 120 |
| 2-80-4-12-2 | 2" | 12 | 33" | 3.40 lb | 200 psi | 120 |
| Product Type: | Static Mixer |
| Brand: | Koflo |
| Material: | PVC |
| Color: | Gray |
| Certifications: | NSF 61 Certified |
