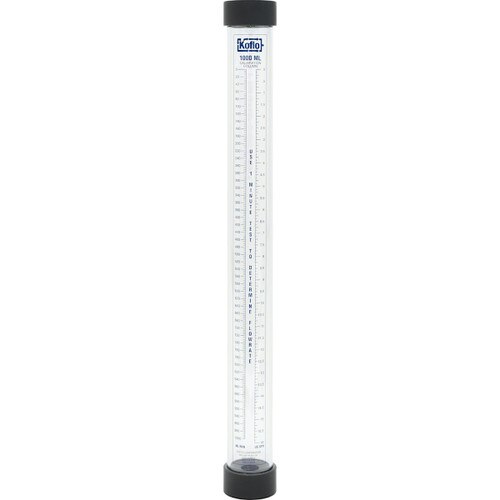

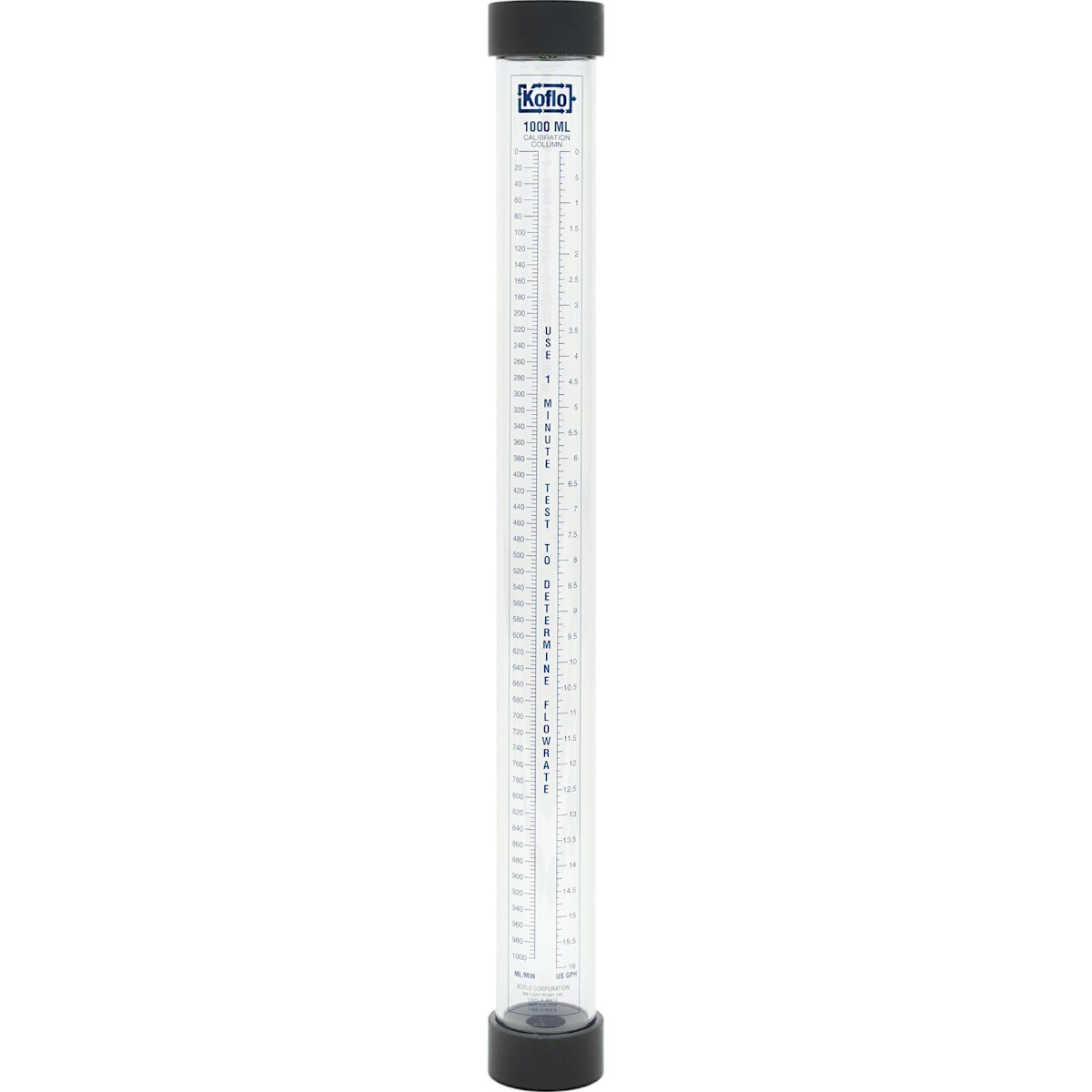

0 to 16 GPH Pump Calibration Column, PVC (each)
Images are for representation only. Actual product may differ in size, color or options.
0 to 16 GPH Pump Calibration Column, PVC (each)
Koflo pump calibration columns (also known as calibration cylinders) provide a simple method for determining pump flowrate using industry-standard graduations of milliliters/minute and gallons/hour. All columns feature top-aligned graduated scales that allow the operator to survey both ml/min and GPH in a single, one-minute test. High-contrast blue lettering enhances readability in all light conditions, and all scales have a protective lamination layer to protect against chemical attack.
For non-corrosive or mild chemicals, PVC calibration columns are an economical choice.
Koflo pump calibration columns (also known as calibration cylinders) provide a simple method for determining pump flowrate using industry-standard graduations of milliliters/minute and gallons/hour. All columns feature top-aligned graduated scales that allow the operator to survey both ml/min and GPH in a single, one-minute test. High-contrast blue lettering enhances readability in all light conditions, and all scales have a protective lamination layer to protect against chemical attack.
For non-corrosive or mild chemicals, PVC calibration columns are an economical choice.
| Product Type: | Calibration Column / Calibration Cylinder |
| Brand: | Koflo |
| Class: | Pump Flow Calibration |
| Capacity: | 1,000 mL/min, 16 GPH |
| Increments: | 5 mL, 0.125 GPH |
| Housing: | Schedule 40 clear PVC column tube and industrial grade machined PVC top and bottom caps |
| Connections: | 3/4" FNPT End Connections (PVC) |
| Net Weight: | 1.9 lbs |
| Overall Dimensions: | 2.375" Tube OD x 25" Column Height |
| Notes: | Fixed Caps, capacity based on one (1) minute test |
