KOF-1000ML-GL-CPVC
Images are for representation only. Actual product may differ in size, color or options.

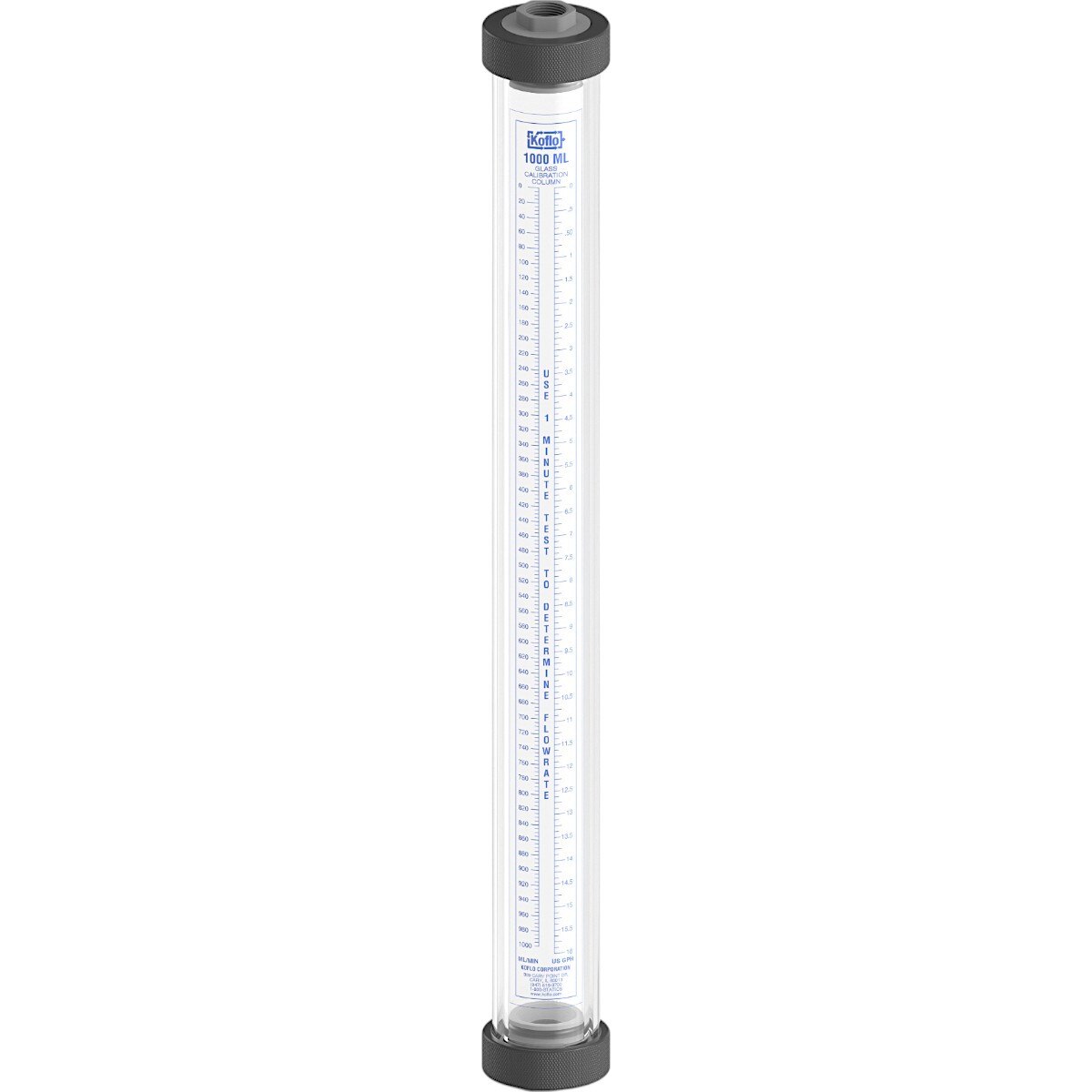

0 to 16 GPH Pump Calibration Column, Glass with CPVC End Caps (each)
Koflo pump calibration columns (also known as calibration cylinders) provide a simple method for determining pump flowrate using industry-standard graduations of milliliters/minute and gallons/hour. All columns feature top-aligned graduated scales that allow the operator to survey both ml/min and GPH in a single, one-minute test. High-contrast blue lettering enhances readability in all light conditions, and all scales have a protective lamination layer to protect against chemical attack.

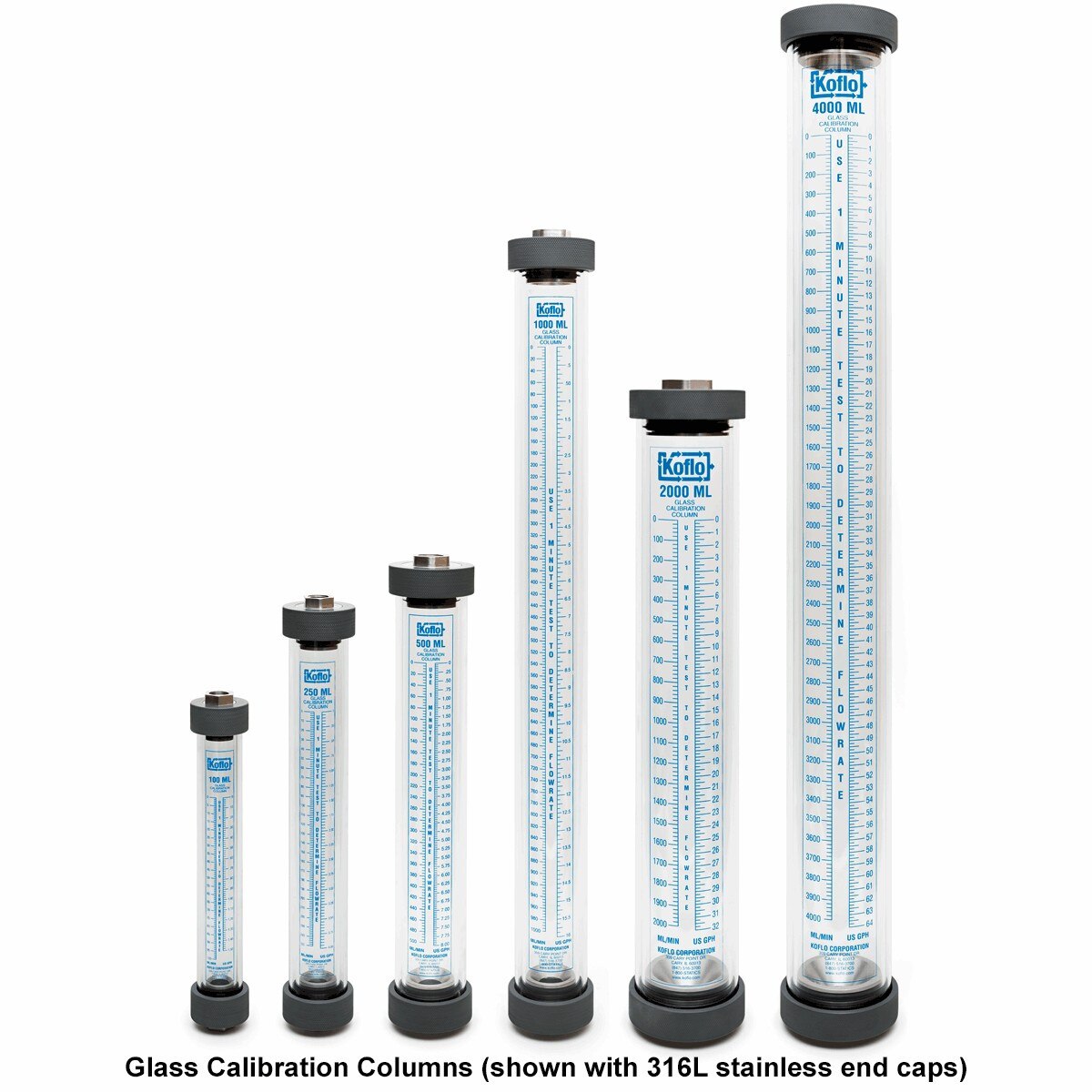

Glass pump calibration columns feature a borosilicate glass interior for extreme chemical resistance and an even higher level of readability when compared to PVC columns. The new design offers an integrated polycarbonate shield for full double-containment of corrosive chemicals with the added benefit of industry-leading impact resistance.
Koflo pump calibration columns (also known as calibration cylinders) provide a simple method for determining pump flowrate using industry-standard graduations of milliliters/minute and gallons/hour. All columns feature top-aligned graduated scales that allow the operator to survey both ml/min and GPH in a single, one-minute test. High-contrast blue lettering enhances readability in all light conditions, and all scales have a protective lamination layer to protect against chemical attack.
Glass pump calibration columns feature a borosilicate glass interior for extreme chemical resistance and an even higher level of readability when compared to PVC columns. The new design offers an integrated polycarbonate shield for full double-containment of corrosive chemicals with the added benefit of industry-leading impact resistance.
Product Type: | Calibration Column / Calibration Cylinder |
Brand: | Koflo |
Class: | Pump Flow Calibration |
Material: | Glass |
Capacity: | 1,000 mL/min, 16 GPH |
Increments: | 5 mL, 0.125 GPH |
Housing: | Glass column tube with polycarbonate shield and CPVC top and bottom caps |
Connections: | 3/4" FNPT End Connections (CPVC) |
Net Weight: | 4.0 lbs |
Overall Dimensions: | 2.75" Tube OD x 29" Column Height |
Notes: | capacity based on one (1) minute test |
