KOF-2000ML-GL-316L
Images are for representation only. Actual product may differ in size, color or options.

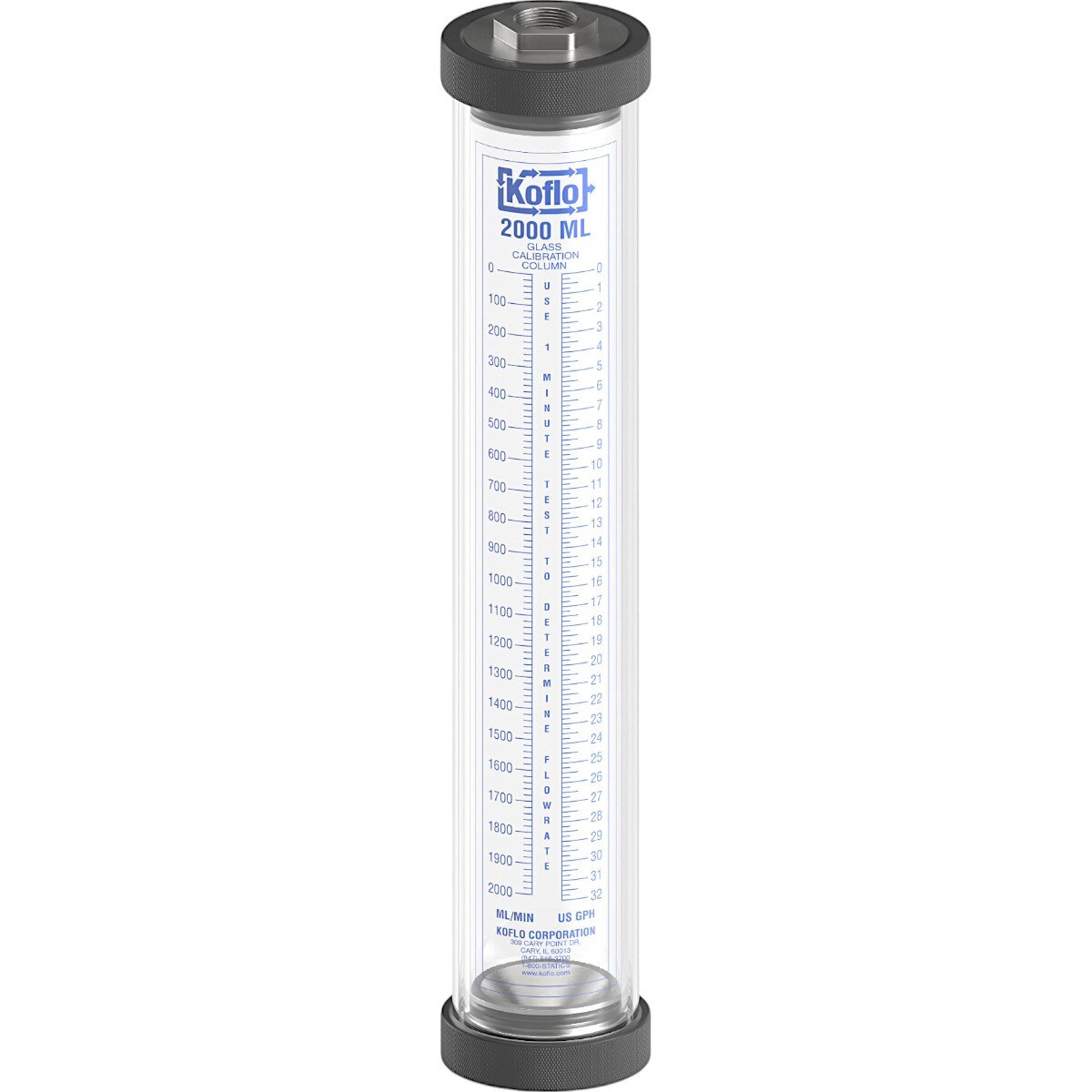

0 to 32 GPH Pump Calibration Column, Glass with 316L End Caps (each)
Koflo pump calibration columns (also known as calibration cylinders) provide a simple method for determining pump flowrate using industry-standard graduations of milliliters/minute and gallons/hour. All columns feature top-aligned graduated scales that allow the operator to survey both ml/min and GPH in a single, one-minute test. High-contrast blue lettering enhances readability in all light conditions, and all scales have a protective lamination layer to protect against chemical attack.

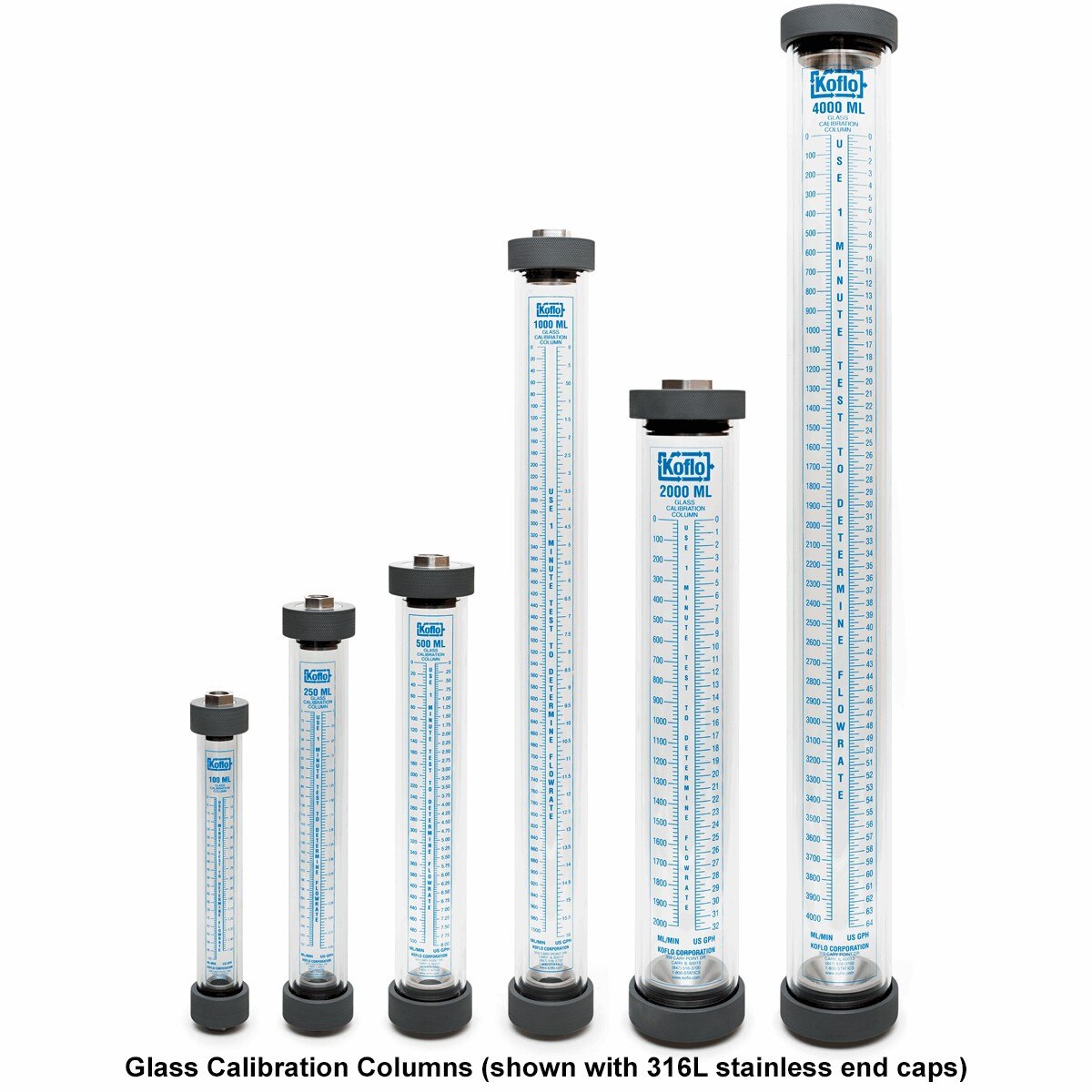

Glass pump calibration columns feature a borosilicate glass interior for extreme chemical resistance and an even higher level of readability when compared to PVC columns. The new design offers an integrated polycarbonate shield for full double-containment of corrosive chemicals with the added benefit of industry-leading impact resistance.
Koflo pump calibration columns (also known as calibration cylinders) provide a simple method for determining pump flowrate using industry-standard graduations of milliliters/minute and gallons/hour. All columns feature top-aligned graduated scales that allow the operator to survey both ml/min and GPH in a single, one-minute test. High-contrast blue lettering enhances readability in all light conditions, and all scales have a protective lamination layer to protect against chemical attack.
Glass pump calibration columns feature a borosilicate glass interior for extreme chemical resistance and an even higher level of readability when compared to PVC columns. The new design offers an integrated polycarbonate shield for full double-containment of corrosive chemicals with the added benefit of industry-leading impact resistance.
Product Type: | Calibration Column / Calibration Cylinder |
Brand: | Koflo |
Class: | Pump Flow Calibration |
Material: | Glass |
Capacity: | 2,000 mL/min, 32 GPH |
Increments: | 10 mL, 0.25 GPH |
Housing: | Glass column tube with polycarbonate shield and 316L top and bottom caps |
Connections: | 1" FNPT End Connections (316L) |
Net Weight: | 6.7 lbs |
Overall Dimensions: | 4" Tube OD x 24" Column Height |
Notes: | capacity based on one (1) minute test |
