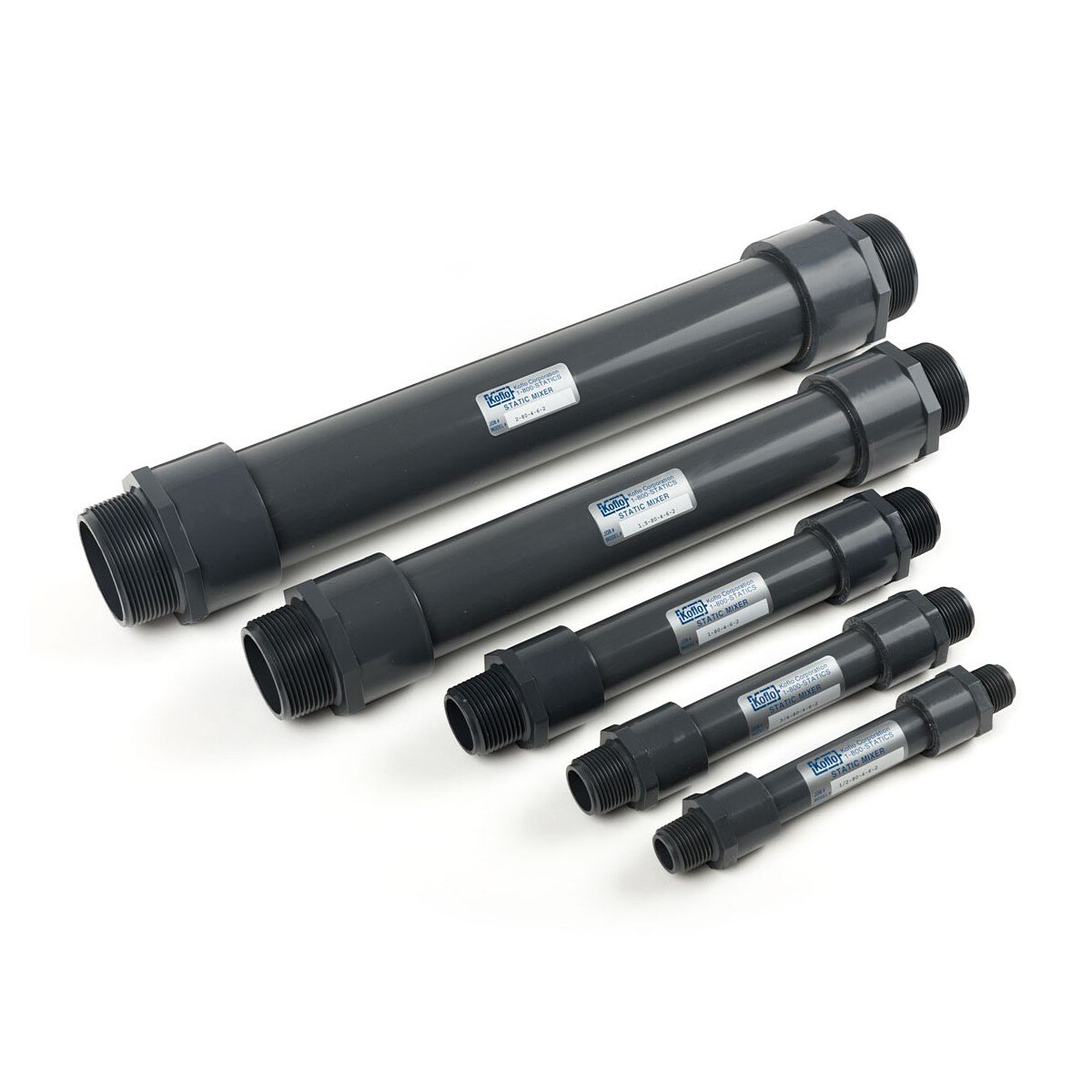

3/4" Gray PVC Static Mixer (12 Elements, 14" Length)
Images are for representation only. Actual product may differ in size, color or options.
3/4" Gray PVC Static Mixer (12 Elements, 14" Length)
High-efficiency mixer with twelve elements for improved chemical dispersion in 3/4" lines. Suitable for water treatment and process control.
Typical Applications
- Admixing of water treatment chemicals
- pH control
- Chlorination and ozonation
- Process control sampling
Features
- Housing: Schedule 80 PVC
- Elements: Koflo Blade™ style PVC
- End Connections: Male NPT (threaded)
- Edge-sealed with high-strength PVC solvent cement
- NSF / ANSI 61 certified
Specifications
- Length: 14"
- Weight: 0.45 lb
- Max Pressure: 340 psi @ 75°F
- Max Temp: 120°F
Model Specifications
| Model Number | Pipe Dia. MNPT Ends | Elements | Length | Weight | Max Pressure @ 75°F | Max Temp (°F) |
|---|---|---|---|---|---|---|
| 1/2-80-4-6-2 | 1/2" | 6 | 7" | 0.19 lb | 420 psi | 120 |
| 1/2-80-4-12-2 | 1/2" | 12 | 11" | 0.28 lb | 420 psi | 120 |
| 3/4-80-4-6-2 | 3/4" | 6 | 8" | 0.30 lb | 340 psi | 120 |
| 3/4-80-4-12-2 | 3/4" | 12 | 14" | 0.45 lb | 340 psi | 120 |
| 1-80-4-6-2 | 1" | 6 | 10" | 0.50 lb | 320 psi | 120 |
| 1-80-4-12-2 | 1" | 12 | 19" | 0.85 lb | 320 psi | 120 |
| 1.25-80-4-6-2 | 1.25" | 6 | 14" | 0.85 lb | 260 psi | 120 |
| 1.25-80-4-12-2 | 1.25" | 12 | 25" | 1.45 lb | 260 psi | 120 |
| 1.5-80-4-6-2 | 1.5" | 6 | 15" | 1.20 lb | 240 psi | 120 |
| 1.5-80-4-12-2 | 1.5" | 12 | 26" | 2.00 lb | 240 psi | 120 |
| 2-80-4-6-2 | 2" | 6 | 18" | 1.95 lb | 200 psi | 120 |
| 2-80-4-12-2 | 2" | 12 | 33" | 3.40 lb | 200 psi | 120 |
| Product Type: | Static Mixer |
| Brand: | Koflo |
| Material: | PVC |
| Color: | Gray |
| Certifications: | NSF 61 Certified |
