0 to 64 GPH Pump Calibration Column, Glass with PTFE End Caps (each)
Images are for representation only. Actual product may differ in size, color or options.

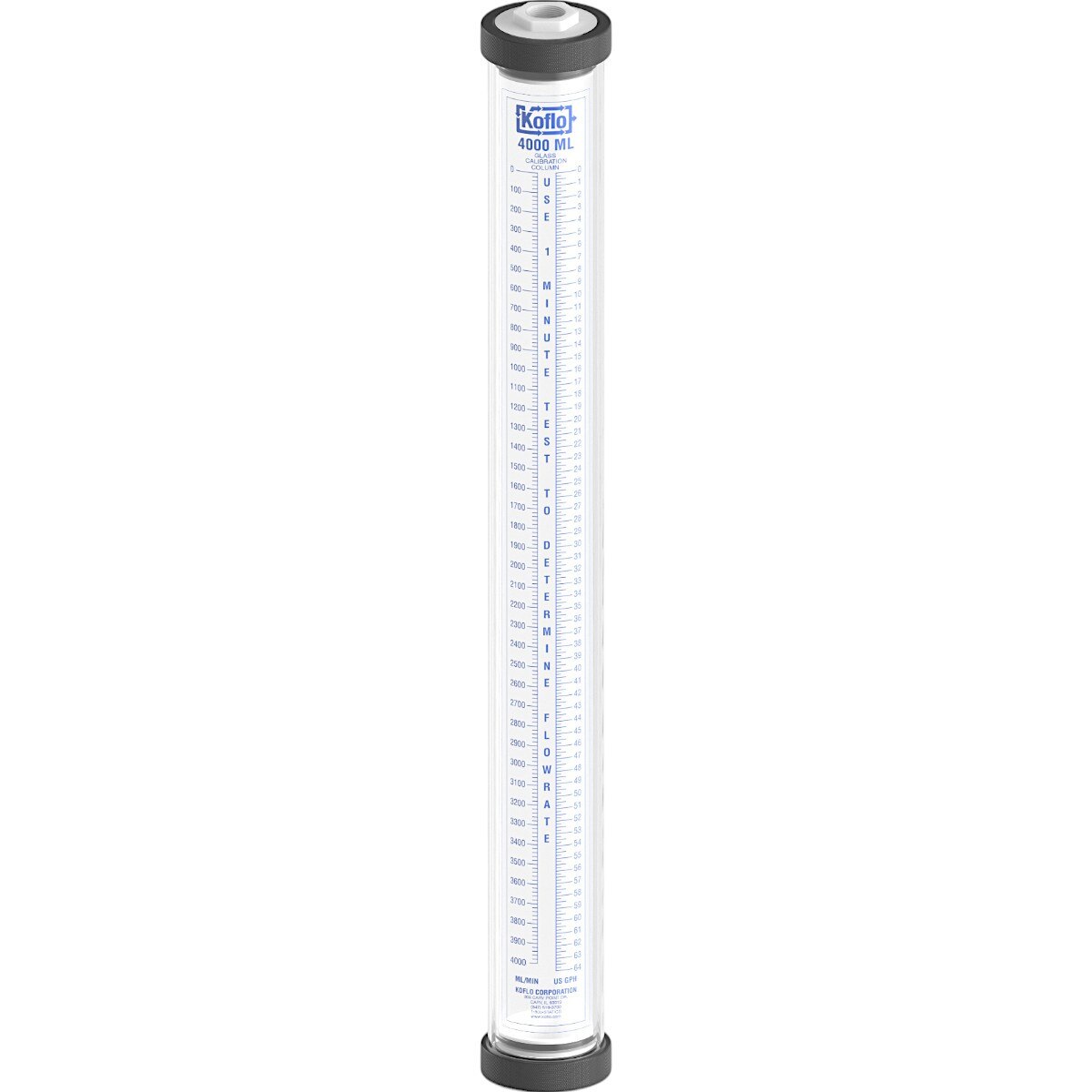

0 to 64 GPH Pump Calibration Column, Glass with PTFE End Caps (each)
Koflo pump calibration columns (also known as calibration cylinders) provide a simple method for determining pump flowrate using industry-standard graduations of milliliters/minute and gallons/hour. All columns feature top-aligned graduated scales that allow the operator to survey both ml/min and GPH in a single, one-minute test. High-contrast blue lettering enhances readability in all light conditions, and all scales have a protective lamination layer to protect against chemical attack.

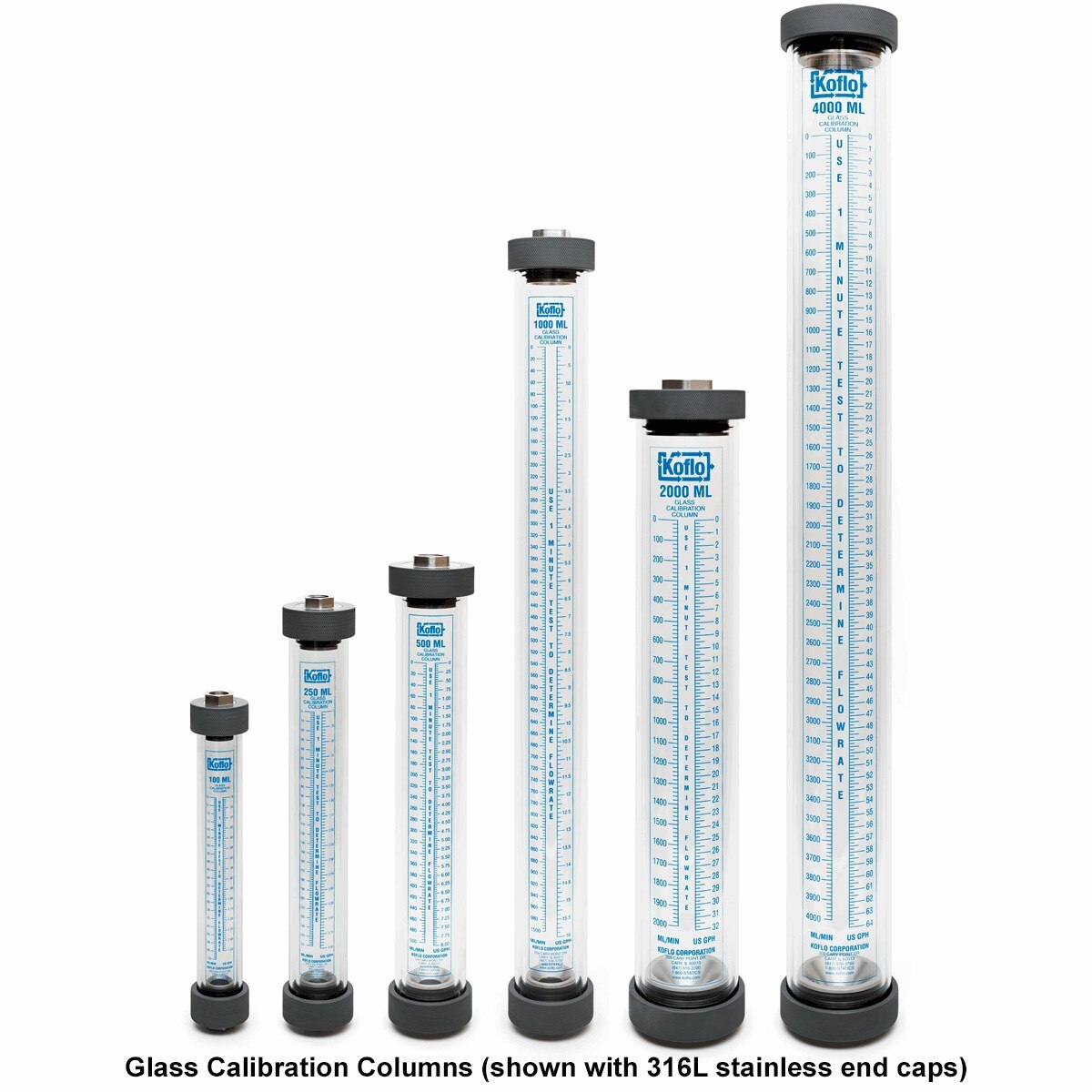

Glass pump calibration columns feature a borosilicate glass interior for extreme chemical resistance and an even higher level of readability when compared to PVC columns. The new design offers an integrated polycarbonate shield for full double-containment of corrosive chemicals with the added benefit of industry-leading impact resistance.
Koflo pump calibration columns (also known as calibration cylinders) provide a simple method for determining pump flowrate using industry-standard graduations of milliliters/minute and gallons/hour. All columns feature top-aligned graduated scales that allow the operator to survey both ml/min and GPH in a single, one-minute test. High-contrast blue lettering enhances readability in all light conditions, and all scales have a protective lamination layer to protect against chemical attack.
Glass pump calibration columns feature a borosilicate glass interior for extreme chemical resistance and an even higher level of readability when compared to PVC columns. The new design offers an integrated polycarbonate shield for full double-containment of corrosive chemicals with the added benefit of industry-leading impact resistance.
| Product Type: | Calibration Column / Calibration Cylinder |
| Brand: | Koflo |
| Class: | Pump Flow Calibration |
| Material: | Glass |
| Capacity: | 4,000 mL/min, 64 GPH |
| Increments: | 20 mL, 0.25 GPH |
| Housing: | Glass column tube with polycarbonate shield and PTFE top and bottom caps |
| Connections: | 1" FNPT End Connections (PTFE) |
| Net Weight: | 9.6 lbs |
| Overall Dimensions: | 4" Tube OD x 39" Column Height |
| Notes: | capacity based on one (1) minute test |
