LMI MFV Retrofit Multifunction Valve Kit, 150 PSI (each)
Images are for representation only. Actual product may differ in size, color or options.
LMI MFV Retrofit Multifunction Valve Kit, 150 PSI (each)

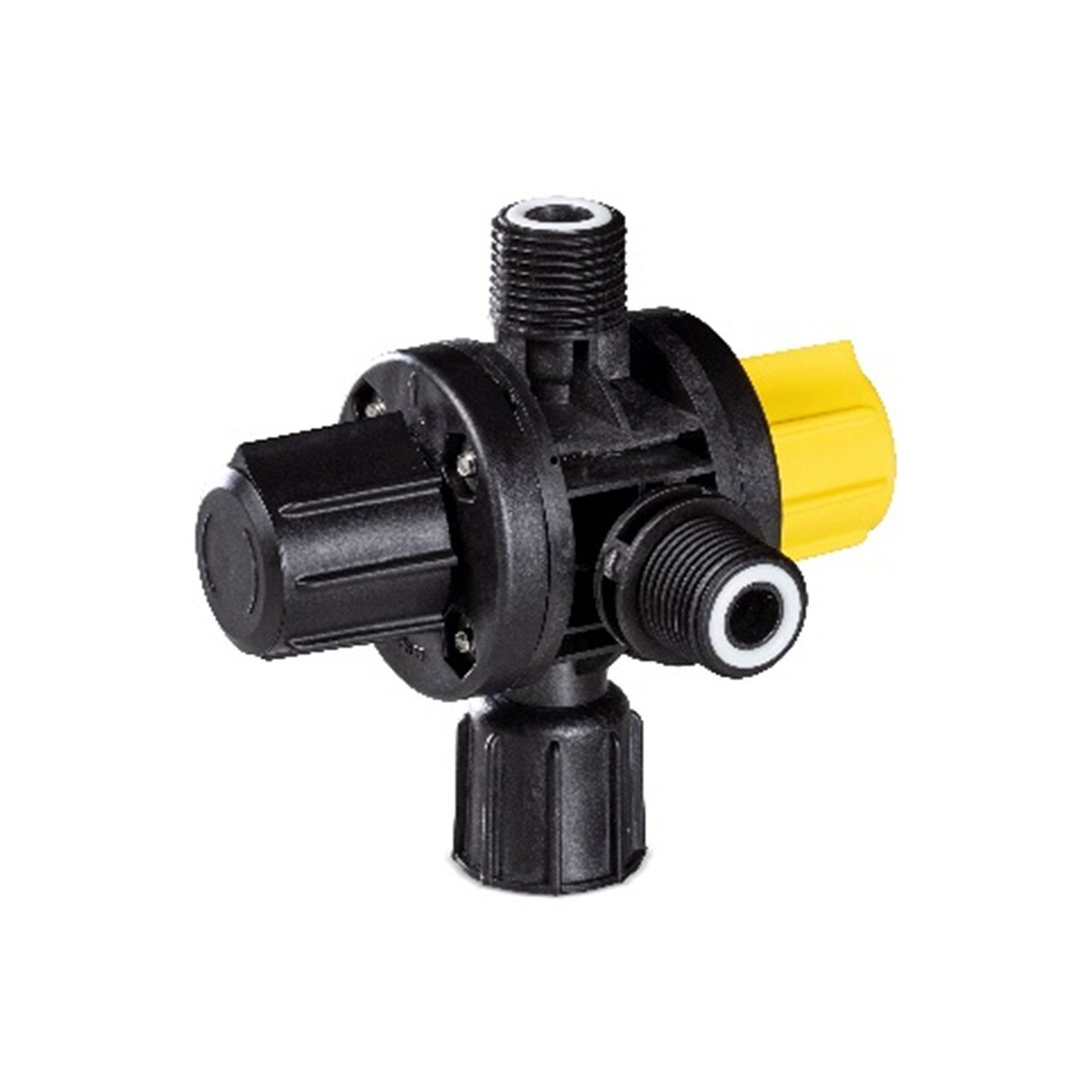

Multi-Function Valve
This compact and economical valve performs four important functions for your LMI pump.

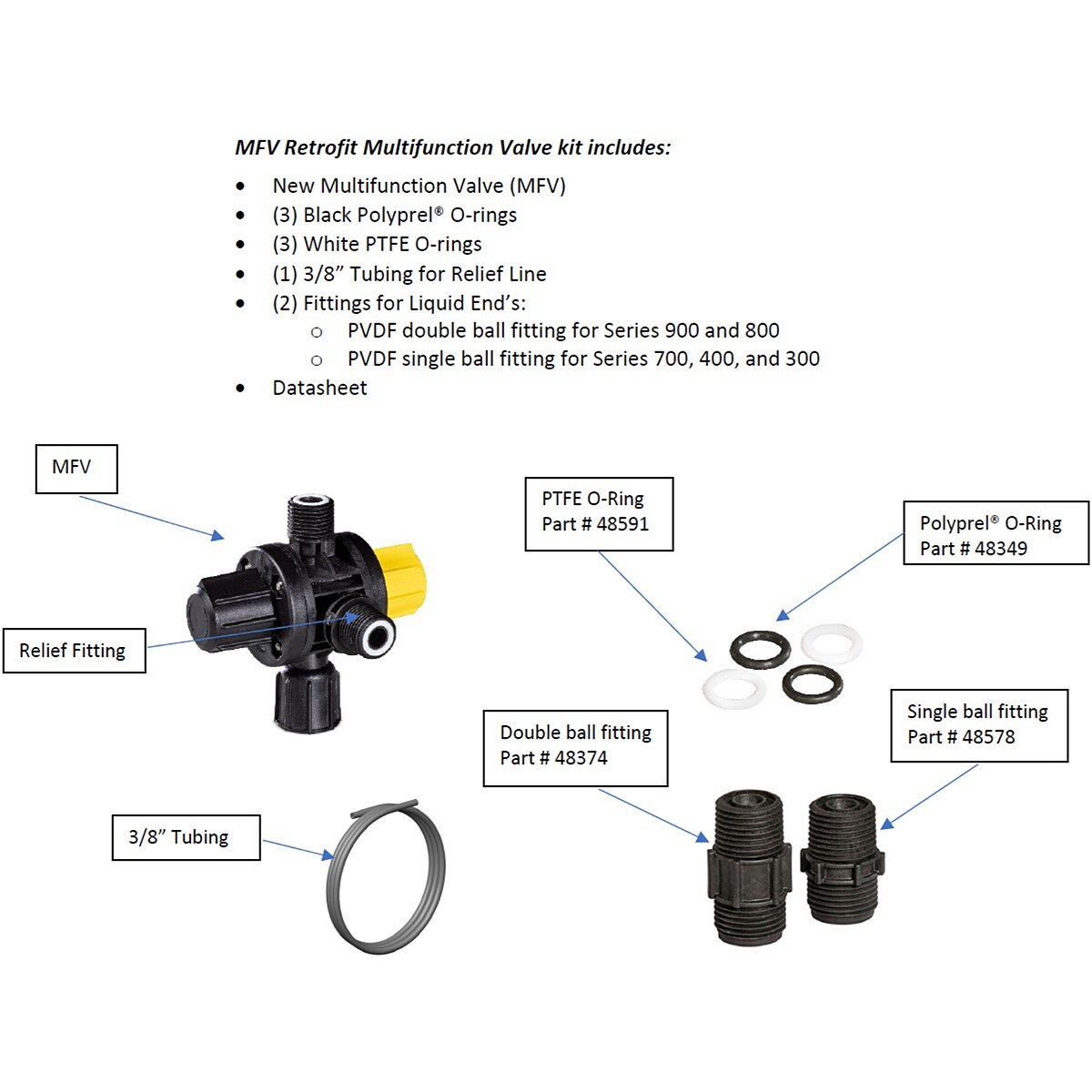

Includes: MFV, (1) PVDF single ball valve housing, (1) double ball valve housing, (2) Aflas O-rings, (2) PFTE O-rings
Multi-Function Valve
This compact and economical valve performs four important functions for your LMI pump.
- Anti-Syphon: A diaphragm allows flow only with the discharge stroke of the pump. This prevents the discharge line from syphoning liquid from the supply tank in most applications.
- Back Pressure: This diaphragm creates approximately 20 psi (1.4 bar) of backpressure. This improves system performance by providing constant pressure against the pump.
- Pressure Relief: A second diaphragm protects the pump from overpressure by releasing fluid through a relief port in the event of excessive discharge line pressure.
- Burp: Turn the yellow knob to eliminate the valve’s backpressure allowing the pump to run at atmospheric pressure.
- Prime: Turn the black knob to divert flow through the relief line to the tank. This allows air to flow through from the head.
- Drain Line: Turn both knobs to open the discharge line to the tank, leaving it open to the atmosphere.
Includes: MFV, (1) PVDF single ball valve housing, (1) double ball valve housing, (2) Aflas O-rings, (2) PFTE O-rings
| Product Type: | Parts & Accessories |
| Brand: | LMI |
| Product Line: | LMI |
