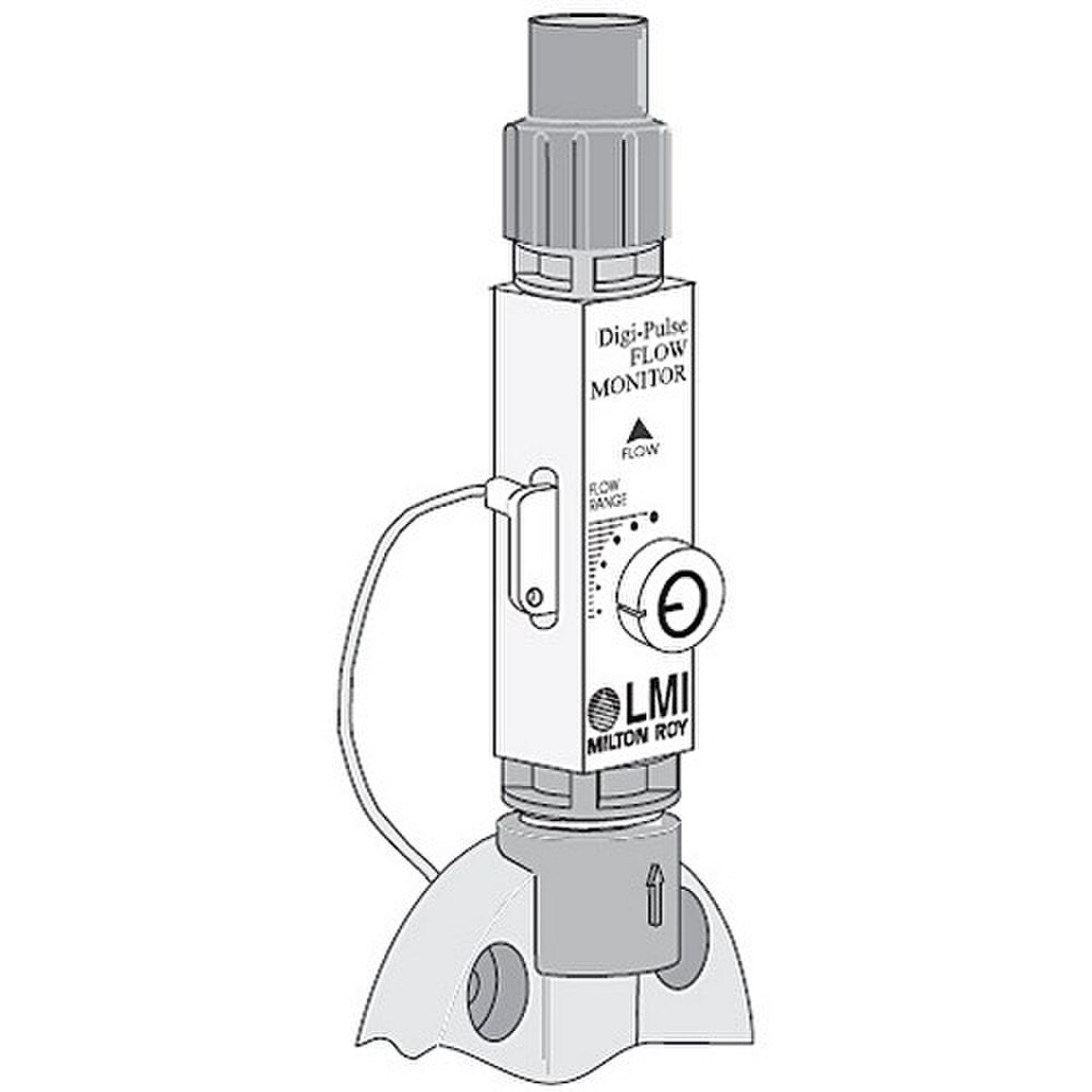

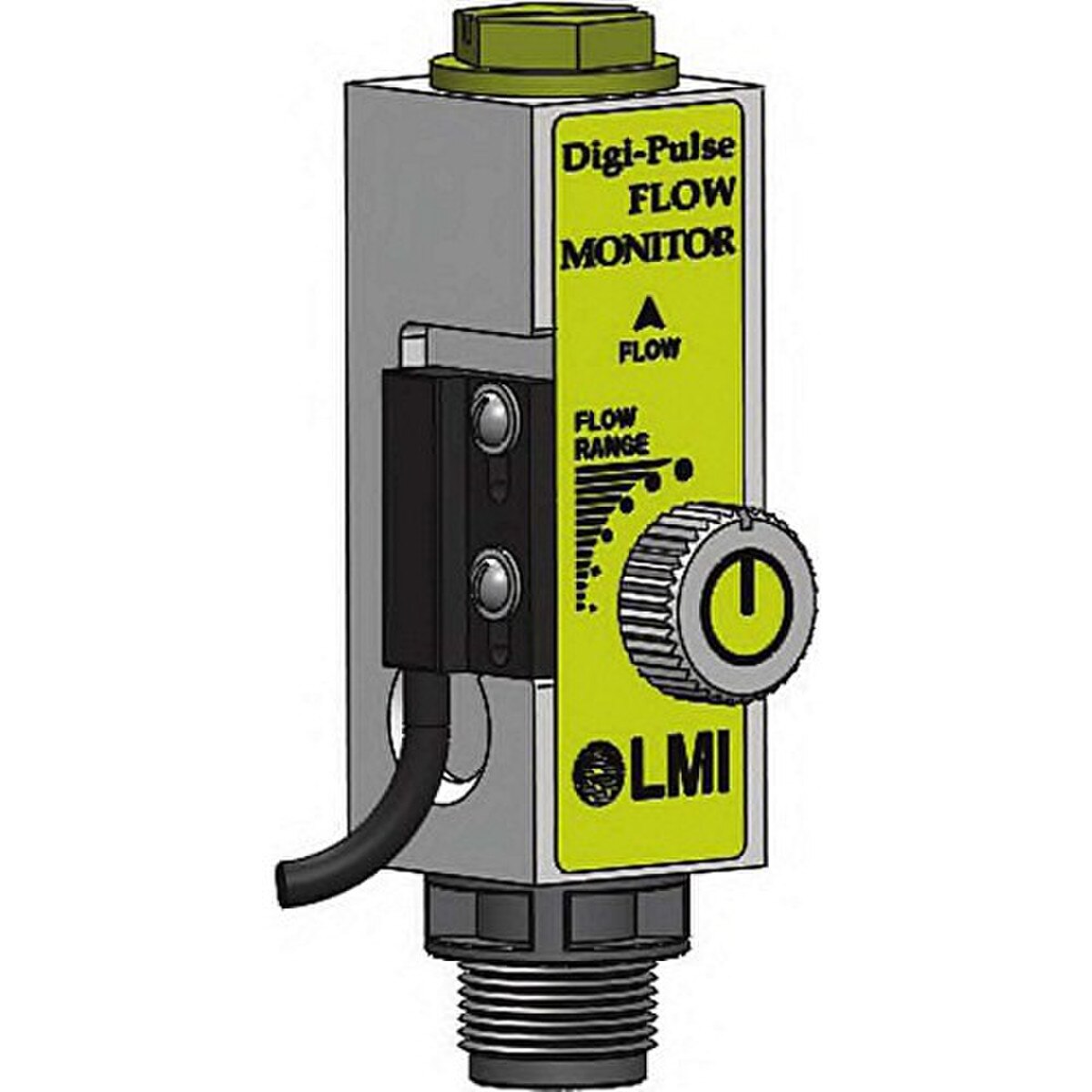

LMI Digi-Pulse Flow Monitor for 300 and 400 Series LIQUIPRO liquid ends
Images are for representation only. Actual product may differ in size, color or options.
LMI Digi-Pulse Flow Monitor for 300 and 400 Series LIQUIPRO liquid ends
Pulsating flow of your pump can be monitored and transmitted using the LMI Digi-Pulse™ Flow Monitor. Designed to electrically signal a low flow or no flow condition, you can be assured of your pumping performance; an advantage when working with pulsating or very low flows. A transmitter can be connected to a remote counting or recording device. The Digi-Pulse™ Flow Monitor is adjustable to any desired pulsating flow rate within its range.
Pulsating flow of your pump can be monitored and transmitted using the LMI Digi-Pulse™ Flow Monitor. Designed to electrically signal a low flow or no flow condition, you can be assured of your pumping performance; an advantage when working with pulsating or very low flows. A transmitter can be connected to a remote counting or recording device. The Digi-Pulse™ Flow Monitor is adjustable to any desired pulsating flow rate within its range.
| Product Type: | Flow Monitor |
| Brand: | LMI |
| Product Line: | Digi-Pulse |
| Material: | PVDF |
| Max Flow (GPH): | 7.9 |
| Max Pressure (PSI): | 150 |
| Max Strokes per Minute: | 240 |
| Valve / Seat / O-Ring: | Polyprel |
| Cable Length: | 10 feet (3 m) |
| Body: | PVDF |
| For Models: | LMI 300 and 400 Series LIQUIPRO liquid ends |
