LMI-SD41X7P
Images are for representation only. Actual product may differ in size, color or options.

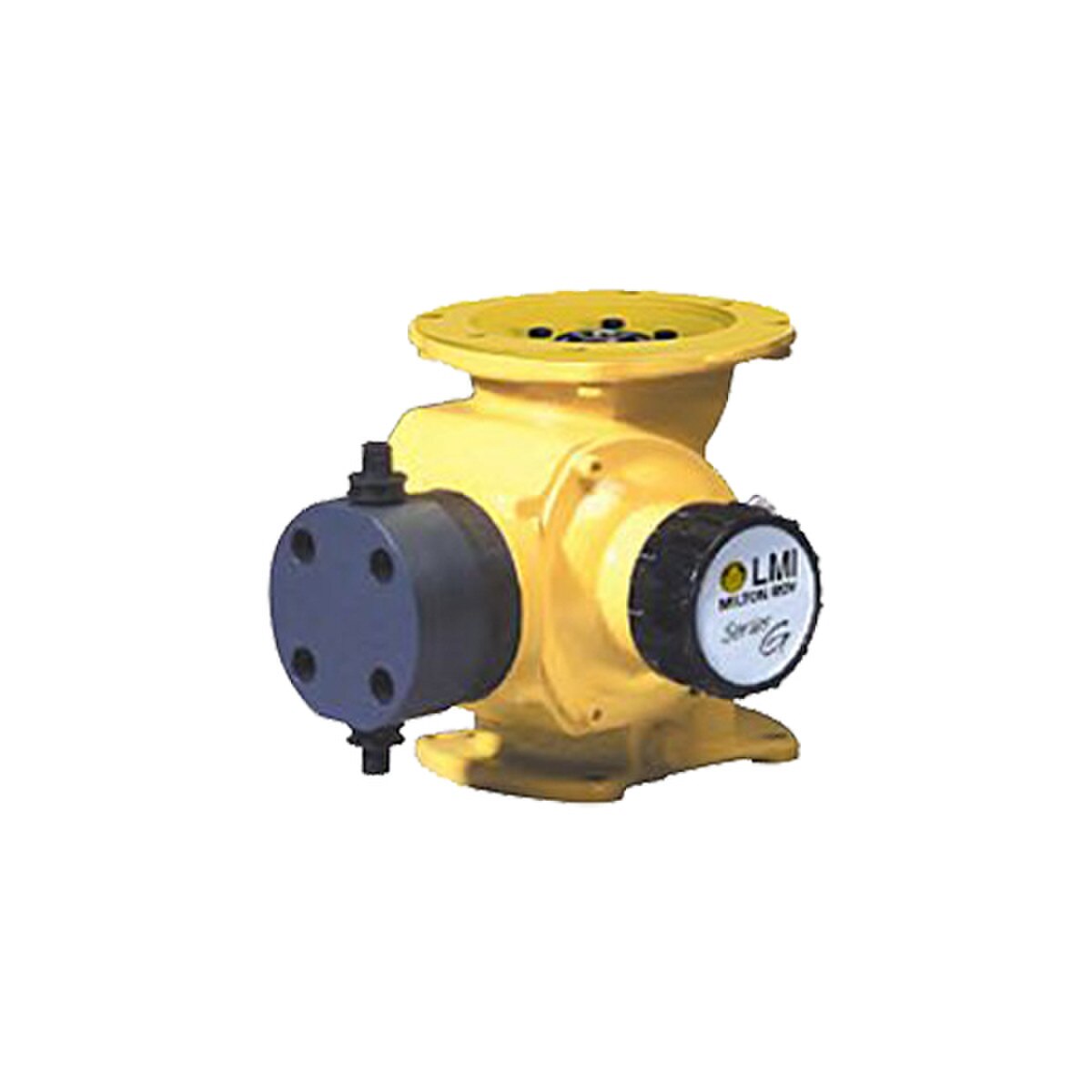

LMI Series G Metering Pump.
3 GPH @ 150 PSI, 316SS Liquid End (ETL Certified to conform to ANSI/NSF STD 50).
.
Manual Stroke Length Control
Manually adjustable eccentric stroke length control.
General Description
LMI Series G chemical metering pumps shall be motor driven mechanically actuated positive displacement diaphragm type pumps. Precision stroke adjustment can be operated while the pump is running or stopped from zero to maximum capacity.
Pump Controls
Stroke length shall be adjustable by a readily accessible dial knob located adjacent to the liquid handling end.
Drive Assembly
A robust metallic, worm gear drive coupled with the industrial duty variable eccentric stroke adjustment mechanism yields a 10 to 1 turn down ratio. All gear components operate in an oil bath for long life.
Materials of Construction
See Specifications tab. Chemical metering pump housing is a durable, metallic housing designed to withstand tough environments. All exposed fasteners shall be stainless steel. Valves shall be serviceable by replacing the cartridge valve assembly.
WARNING: A pressure relief valve MUST be installed in the discharge line of all motor driven pump (order as a separate line item).
3 GPH @ 150 PSI, 316SS Liquid End (ETL Certified to conform to ANSI/NSF STD 50).
.
Manual Stroke Length Control
Manually adjustable eccentric stroke length control.
General Description
LMI Series G chemical metering pumps shall be motor driven mechanically actuated positive displacement diaphragm type pumps. Precision stroke adjustment can be operated while the pump is running or stopped from zero to maximum capacity.
Pump Controls
Stroke length shall be adjustable by a readily accessible dial knob located adjacent to the liquid handling end.
Drive Assembly
A robust metallic, worm gear drive coupled with the industrial duty variable eccentric stroke adjustment mechanism yields a 10 to 1 turn down ratio. All gear components operate in an oil bath for long life.
Materials of Construction
See Specifications tab. Chemical metering pump housing is a durable, metallic housing designed to withstand tough environments. All exposed fasteners shall be stainless steel. Valves shall be serviceable by replacing the cartridge valve assembly.
WARNING: A pressure relief valve MUST be installed in the discharge line of all motor driven pump (order as a separate line item).
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | LMI |
| Product Line: | Series G |
| Max Flow (GPH): | 3.00 |
| Max Flow (GPD): | 72.0 |
| Max Pressure (PSI): | 150 |
| Max Viscosity (CPS): | 1500 cps |
| Max Strokes per Minute: | 43 |
| Flow Control: | Manual Stroke Length Control |
| Turn Down Ratio: | 10:1 |
| Head/Fittings: | 316 SS / 316 SS |
| Valve Balls: | 316 SS |
| Diaphragm: | PTFE |
| Valve / Seat / O-Ring: | PTFE / 316 SS |
| Motor: | NO MOTOR INCLUDED, Flange Mount, NEMA 56C |
| Connections: | Pipe 1/2" NPT M |
| Net Weight: | 45 lbs |
| Includes: | Instruction Manual |
