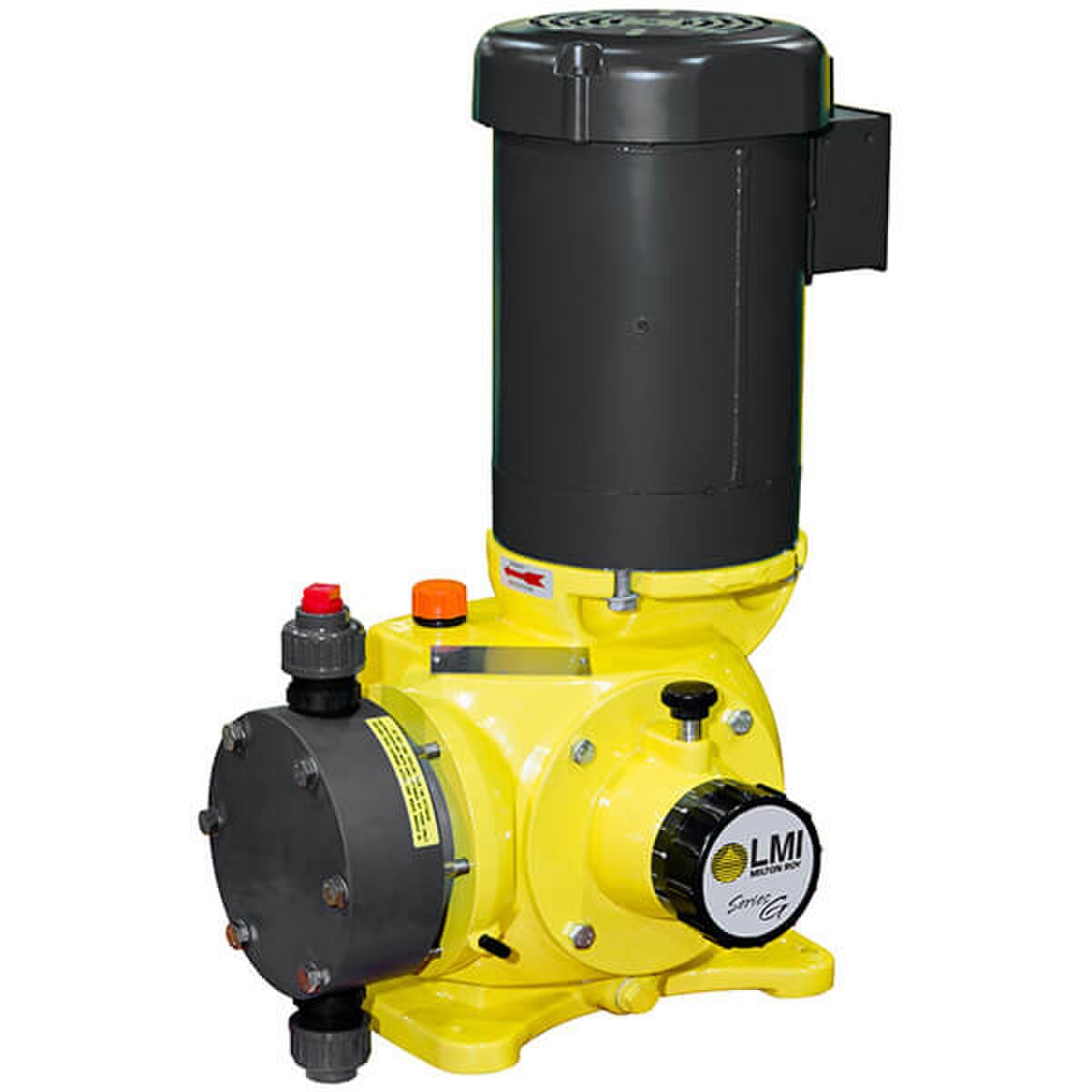

LMI Series G Metering Pump SG, 53 GPH @ 150 PSI, 230/460 VAC

(0)No Reviews yet
$6,854.00
SKU: LMI-SG52J4P
Item Number: LMI-SG52J4P
Model Number: SG52J4P
Manufacturer: LMI Milton Roy
Brand: LMI
MPN: SG52J4P
Condition: New
The manufacturer of this item has mandated a minimum price at which we may advertise this product. Please Login/Register to obtain your best price!

New

LMI Series G Metering Pump.
53 GPH @ 150 PSI, Polypropylene Liquid End.
230/460 VAC, 60 Hz, 3 Phase.

Manual Stroke Length Control

Manually adjustable eccentric stroke length control, stroke frequency is fixed.


General Description
LMI Series G chemical metering pumps shall be motor driven mechanically actuated positive displacement diaphragm type pumps. Precision stroke adjustment can be operated while the pump is running or stopped from zero to maximum capacity.
Pump Controls
The stroke frequency will be fixed. Stroke length shall be adjustable by a readily accessible dial knob located adjacent to the liquid handling end.
Drive Assembly
A robust metallic, worm gear drive coupled with the industrial duty variable eccentric stroke adjustment mechanism yields a 10 to 1 turn down ratio. All gear components operate in an oil bath for long life.
Materials of Construction
See Specifications tab. Chemical metering pump housing is a durable, metallic housing designed to withstand tough environments. All exposed fasteners shall be stainless steel. Valves shall be serviceable by replacing the cartridge valve assembly.

WARNING: A pressure relief valve MUST be installed in the discharge line of all motor driven pump (order as a separate line item).


Product Type: Metering Pump, Diaphragm, Mechanical
Brand: LMI
Class: Polypropylene Liquid End
Max Flow (GPH): 53
Max Flow (GPD): 1272
Max Pressure (PSI): 150
Max Viscosity (CPS): 900 cps
Max Strokes per Minute: 86
Flow Control: Manual Stroke Length Control
Turn Down Ratio: 10:1
Head/Fittings: PP / PVDF
Valve Balls: Ceramic
Diaphragm: PTFE
Valve / Seat / O-Ring: Viton / PVDF
Motor: 1 hp, 1725 rpm, 3 Phase, 60 Hertz, 230/460 Volt, TEFC, NEMA 56C
Connections: Pipe 1/2" NPT F
Power Supply: 230/460 VAC, 60 Hz, 3 Phase
Includes: Instruction Manual
