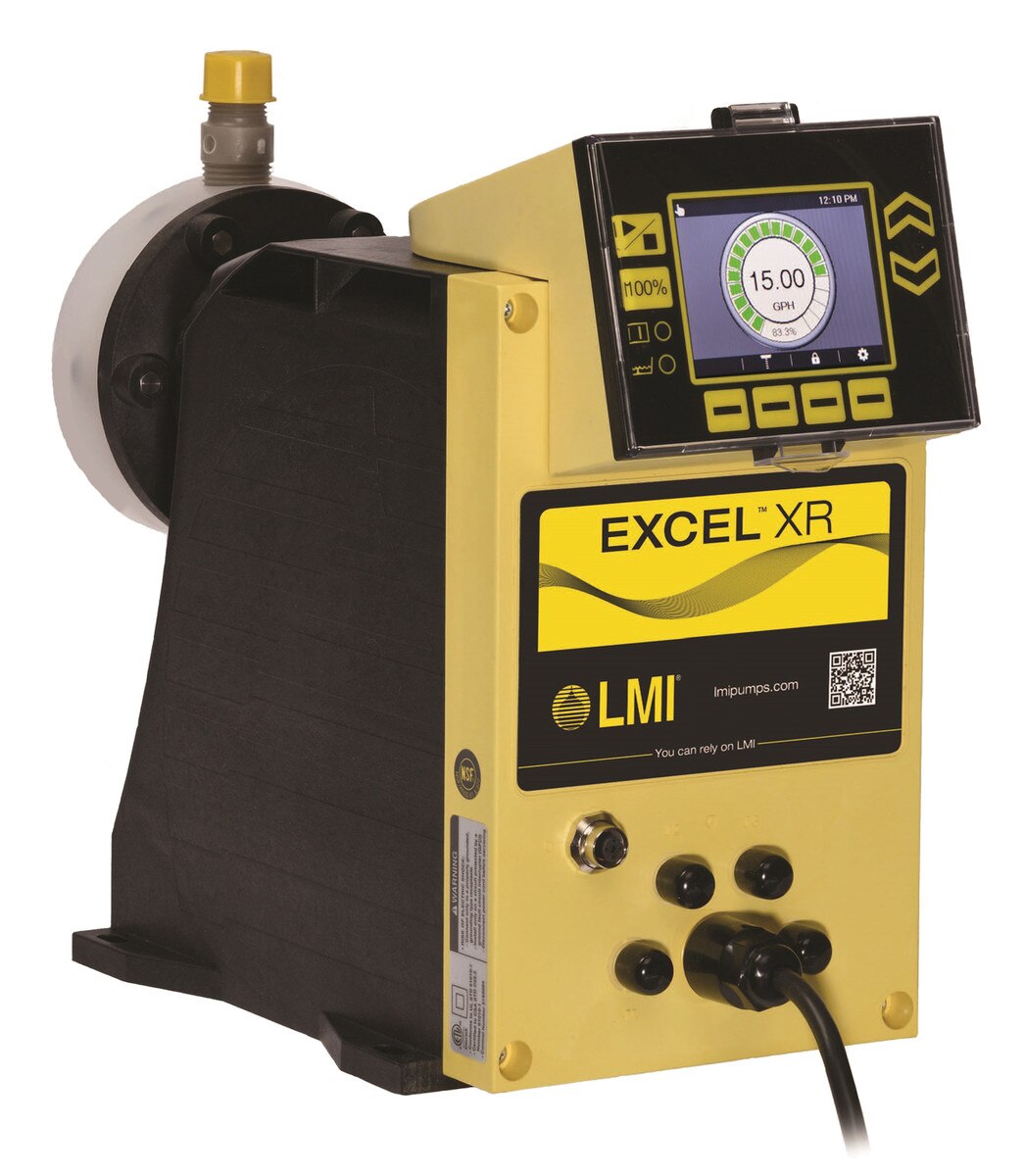

LMI Excel XR Series Metering Pump, 14 GPH @ 75 PSI, Enhanced Control, 220-240 VAC, US Plug
Images are for representation only. Actual product may differ in size, color or options.
LMI Excel XR Series Metering Pump, 14 GPH @ 75 PSI, Enhanced Control, 220-240 VAC, US Plug
The EXCEL XR™ metering pump is a mechanically actuated diaphragm pump driven by advanced variable speed technology to provide the most accurate and reliable performance in the industry. This proven technology is easy to maintain and will provide years of maximum up-time service. Available in two control configurations, manual and enhanced, the EXCEL XR pump fits seamlessly into the process control requirements of every application. The Manual model includes the ideal level of standard features, while the Enhanced model provides a full range of capabilities. All models come standard with a four color backlit display, multilanguage options, remote operation options, all in a design platform that can adapt as technology evolves. The EXCEL XR metering pump provides everything you need for complete control of your process.
LMI Excel XR Series Features (depending on model, see DataSheet):
WARNING: A pressure relief and back pressure valve MUST be installed on all motor driven pumps (order as a separate line item).
The EXCEL XR™ metering pump is a mechanically actuated diaphragm pump driven by advanced variable speed technology to provide the most accurate and reliable performance in the industry. This proven technology is easy to maintain and will provide years of maximum up-time service. Available in two control configurations, manual and enhanced, the EXCEL XR pump fits seamlessly into the process control requirements of every application. The Manual model includes the ideal level of standard features, while the Enhanced model provides a full range of capabilities. All models come standard with a four color backlit display, multilanguage options, remote operation options, all in a design platform that can adapt as technology evolves. The EXCEL XR metering pump provides everything you need for complete control of your process.
LMI Excel XR Series Features (depending on model, see DataSheet):
- Advanced easy-to-use operation interface with backlit color display and enhanced settings enable maximum application customization.
- Remote connectivity enables control and feedback in real time.
- Universal power supply providing maximum flexibility to power your pump: 100-240V, 50/60 Hz
- Multi-language navigation (English, French, Spanish, Portuguese and Chinese) for convenient operation anywhere in the field.
- Innovative drive system creates superior +/- 1% steady state accuracy over 1000:1 turndown ratio for greater flexibility of handling difficult chemicals.
- Optional liquid-end materials to maximize the life of the pump in challenging environments: polypropylene, PVDF, and 316L Stainless Steel.
- Mechanically actuated diaphragms for easy maintenance with years of field experience.
- Rugged construction with NEMA 4X/IP 65 housing and protective cover for the harshest environments.
WARNING: A pressure relief and back pressure valve MUST be installed on all motor driven pumps (order as a separate line item).
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | LMI |
| Product Line: | Excel XR |
| Max Flow (GPH): | 14 |
| Max Flow (GPD): | 336 |
| Max Pressure (PSI): | 75 |
| Flow Control: | Enhanced Control |
| Turn Down Ratio: | 200:1 |
| Head/Fittings: | PVDF |
| Valve Balls: | Ceramic |
| Diaphragm: | PTFE |
| Valve / Seat / O-Ring: | PTFE |
| Connections: | PVDF 1/2” NPT/BSP |
| Power Supply: | 230 VAC 50/60 Hz, US Plug |
| Warranty: | 3 years |
| Net Weight: | 20.0 lbs |
| Includes: | Instruction Manual |
