Lovibond® MD 100 Colorimeter – Copper (Tablet Reagents)

Lovibond® MD 100 Colorimeter – Copper (Tablet Reagents)

This Lovibond® MD 100 is a dedicated copper colorimeter designed for accurate testing using tablet reagents. With dual-range functionality and a rugged waterproof design, it’s ideal for field and lab use in municipal, industrial, and environmental water monitoring.

Also referred to as a photometer, this device is optimized for copper determination using the bicinchoninate method.

Key Features:

• Measurement Parameters:
  • Copper LR: 0.02–1.00 mg/L Cu
  • Copper HR: 0.1–5.0 mg/L Cu
• Reagent Type: Copper No. 1, No. 2, and HR tablet reagents
• Optical System: LED with interference filter, 5 nm bandwidth
• One-Time-Zero (OTZ): Zero once per series—no need to re-zero between tests
• User Calibration: One-point calibration; ABS and %T supported
• Data Storage: Stores 16 results with date/time stamp; IRiM-compatible
• Waterproof Rating: IP68; submersible up to 1 hour at 0.1 m
• Interface: Scroll-driven menu and last-result recall
• Ergonomic Design: Compact housing with rubber feet for lab stability

Technical Specifications:

• Wavelength: 560 nm
• Power Supply: 4 × AAA batteries (approx. 5000 tests)
• Display Units: mg/L, ABS, %T
• Memory: 16 test results
• Warranty: 2 years

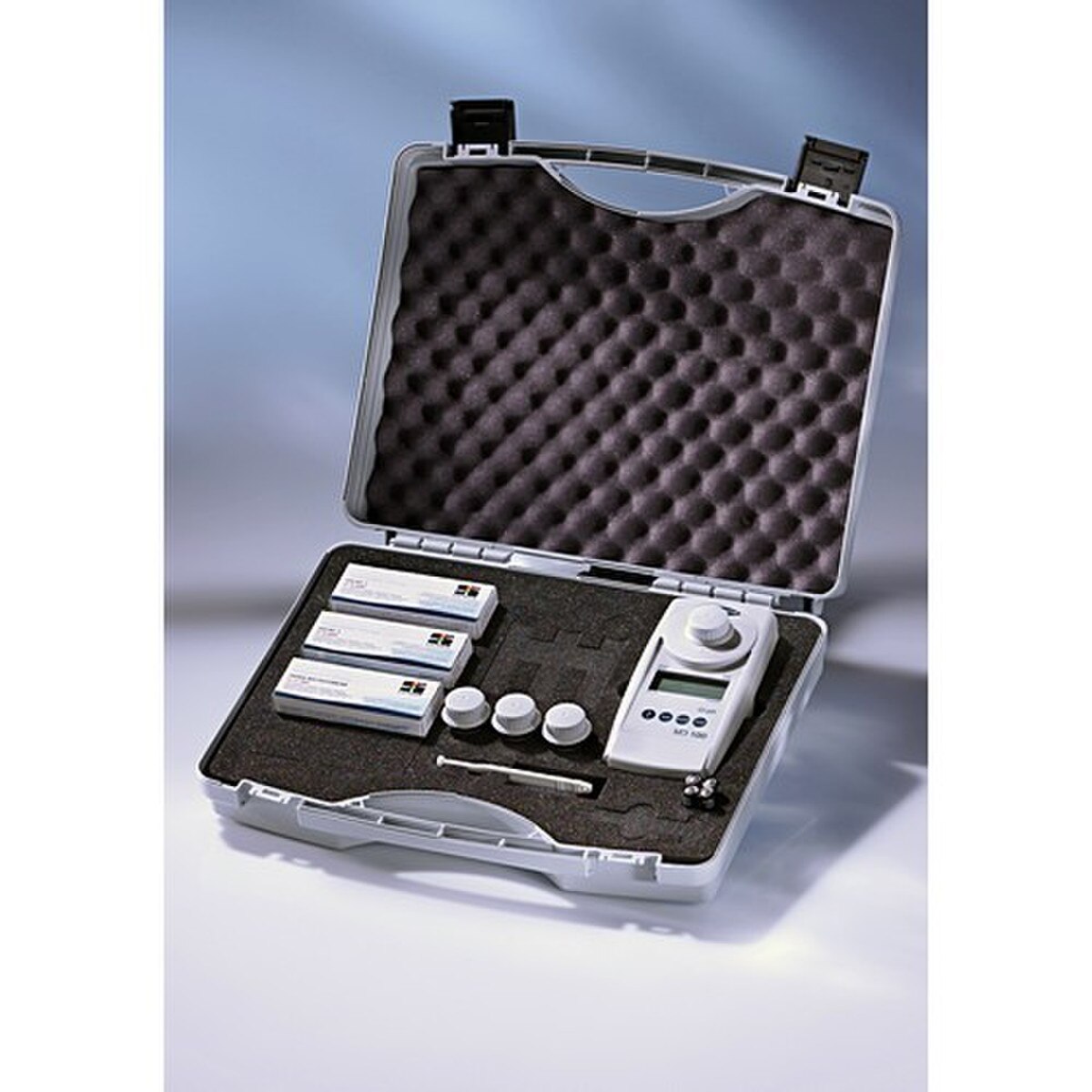

• Included Accessories: 3 × 24 mm round glass vials with lids; Copper No. 1, No. 2, and HR tablets; stirring rod; brush; instruction manual; certificate of compliance; carrying case

Applications:

Ideal for drinking water systems, cooling water monitoring, industrial process control, and environmental compliance, the MD 100 Colorimeter delivers precise copper analysis in both field and laboratory settings.
