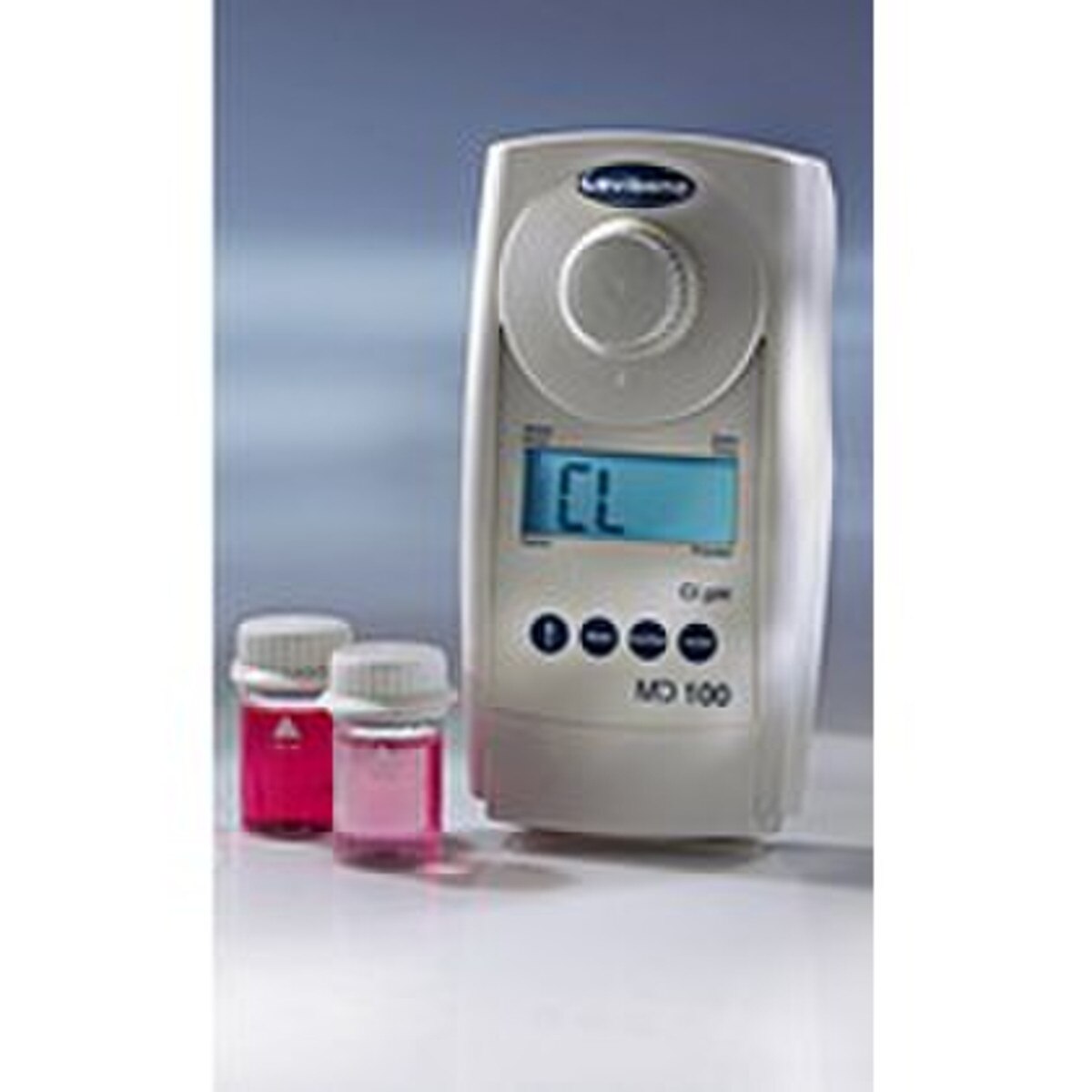

Lovibond® MD 100 Colorimeter – Molybdenum LR (Powder & Tablet Reagents)

This Lovibond® MD 100 is a low-range molybdenum colorimeter designed for accurate testing using tablet and VARIO powder reagents. With three pre-programmed methods and rugged waterproof construction, it’s ideal for field and lab use in cooling water, boiler systems, and industrial process monitoring.

Also known as a photometer, this device supports molybdate determination using the mercaptoacetic acid method.

Key Features:

• Measurement Parameters:
  • Molybdenum LR (Mercaptoacetic Acid): 0.03–3.00 mg/L Mo
  • Molybdenum LR (Mercaptoacetic Acid): 0.05–4.00 mg/L Mo
  • Molybdenum LR (Mercaptoacetic Acid): 0.1–5.00 mg/L Mo
• Reagent Type: VARIO Molybdenum LR Powder Pack Reagents and Molybdenum LR tablet reagents
• Optical System: LED with interference filter, 5 nm bandwidth
• One-Time-Zero (OTZ): Zero once per series—no need to re-zero between tests
• User Calibration: One-point calibration; ABS and %T supported
• Data Storage: Stores 16 results with date/time stamp; IRiM-compatible
• Waterproof Rating: IP68; submersible up to 1 hour at 0.1 m
• Interface: Scroll-driven menu and last-result recall
• Ergonomic Design: Compact housing with rubber feet for lab stability

Technical Specifications:

• Wavelength: 430 nm
• Power Supply: 4 × AAA batteries (approx. 5000 tests)
• Display Units: mg/L, ABS, %T
• Memory: 16 test results
• Warranty: 2 years

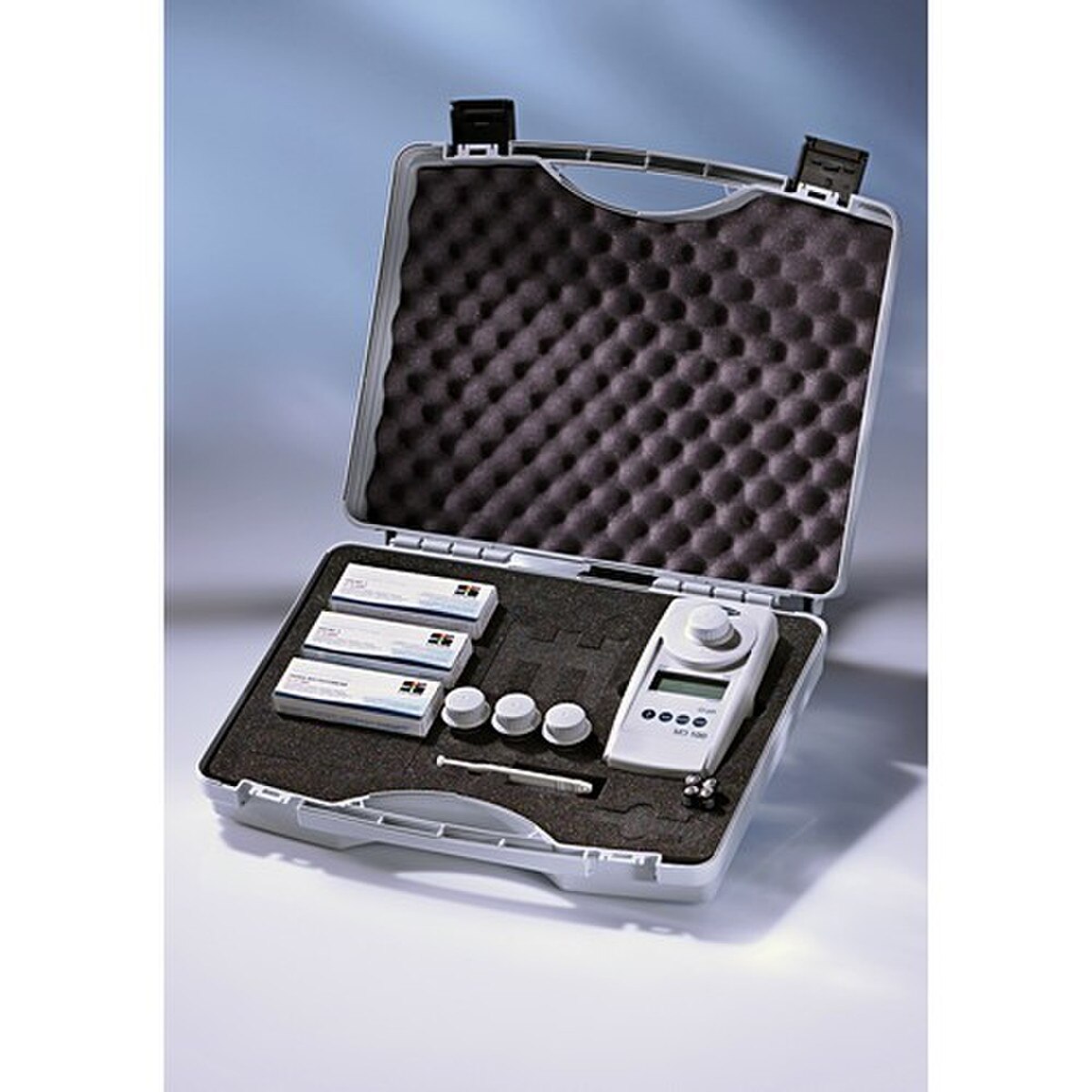

• Included Accessories: 3 × 24 mm round glass vials with lids; VARIO Molybdenum LR Powder Pack Reagents; Molybdenum LR tablets; sealing rings; stirring rod; brush; instruction manual; certificate of compliance; carrying case

Applications:

Ideal for cooling water monitoring, boiler water control, and industrial process validation, the MD 100 Colorimeter delivers precise molybdenum analysis using both powder and tablet reagent formats.
