Lovibond® MD 100 Colorimeter – Aluminum (Powder Reagents)

Lovibond® MD 100 Colorimeter – Aluminium (Powder Reagents)

This Lovibond® MD 100 is a dedicated aluminium colorimeter designed for precise water testing using VARIO powder reagents. With a rugged waterproof design and high-precision optics, it’s ideal for field and lab use in drinking water, wastewater, and industrial process monitoring.

Also known as a photometer, this device determines aluminium concentration using the Eriochrom Cyanine R method.

Key Features:

• Measurement Parameters:
  • Aluminium PP: 0.01–0.25 mg/L Al
  • Aluminium T: 0.01–0.30 mg/L Al

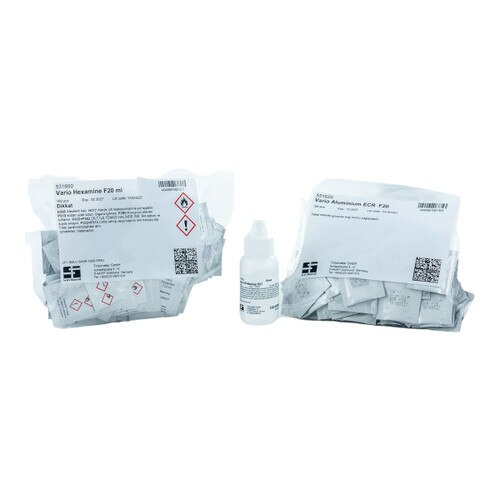

• Reagent Type: VARIO Aluminium ECR F20 PP, Hexamine F20, and ECR masking solution
• Optical System: LED with interference filter, 5 nm bandwidth
• One-Time-Zero (OTZ): Zero once per series—no need to re-zero between tests
• User Calibration: One-point calibration; ABS and %T supported
• Data Storage: Stores 16 results with date/time stamp; IRiM-compatible
• Waterproof Rating: IP68; submersible up to 1 hour at 0.1 m; floats if dropped
• Interface: Scroll-driven menu and last-result recall
• Ergonomic Design: Compact housing with rubber feet for lab stability

Technical Specifications:

• Wavelength: 560 nm
• Power Supply: 4 × AAA batteries (approx. 5000 tests)
• Display Units: mg/L, ABS, %T
• Memory: 16 test results
• Warranty: 2 years

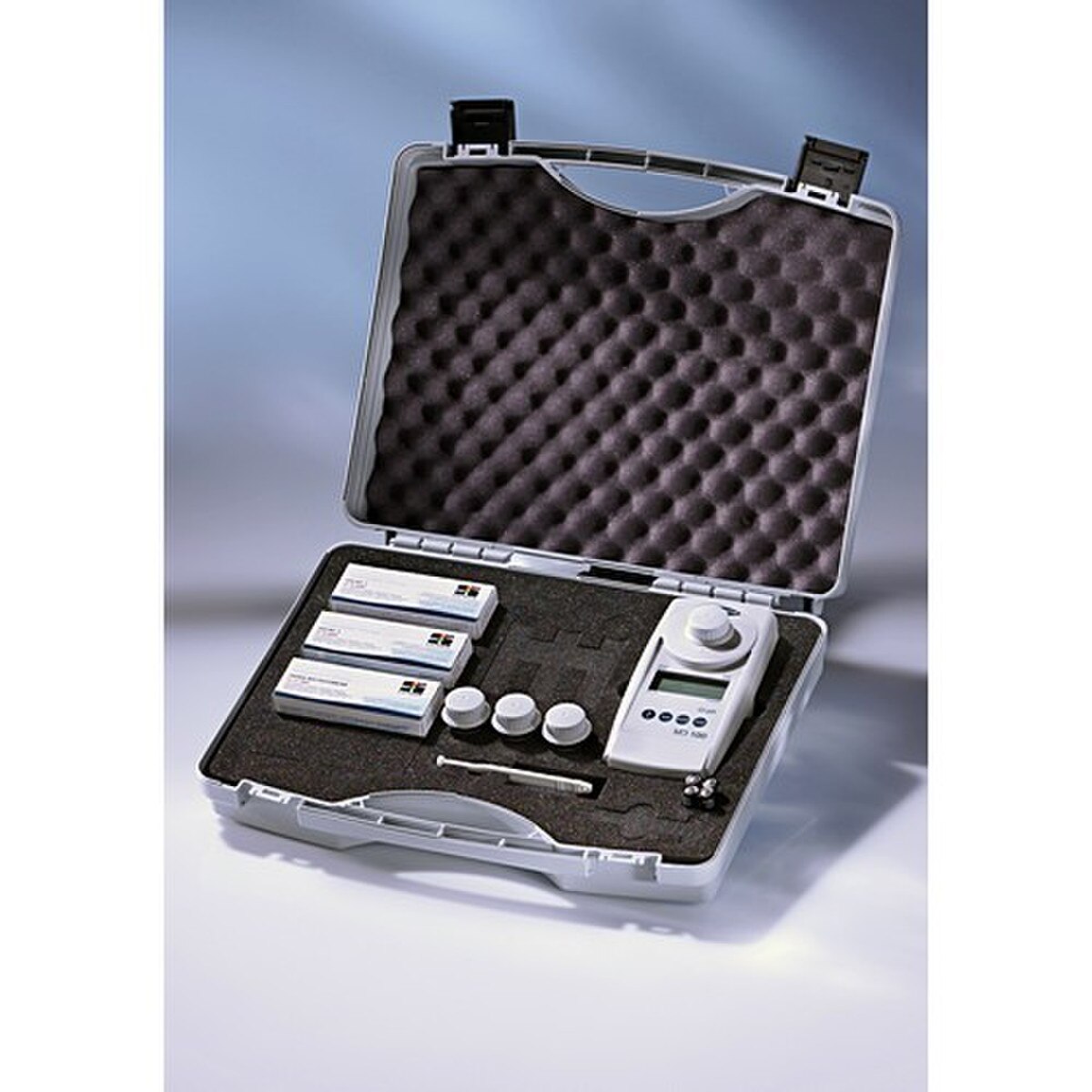

• Included Accessories: 3 × 24 mm round glass vials with lids; VARIO Aluminium Powder Pack Reagents; 1 ml and 10 ml syringes; sealing rings; stirring rod; brush; instruction manual; quick start guide; certificate of compliance; carrying case

Applications:

Ideal for drinking water treatment, wastewater analysis, and industrial process control, the MD 100 Aluminium model delivers reliable aluminium detection using powder reagents in the field or lab.
