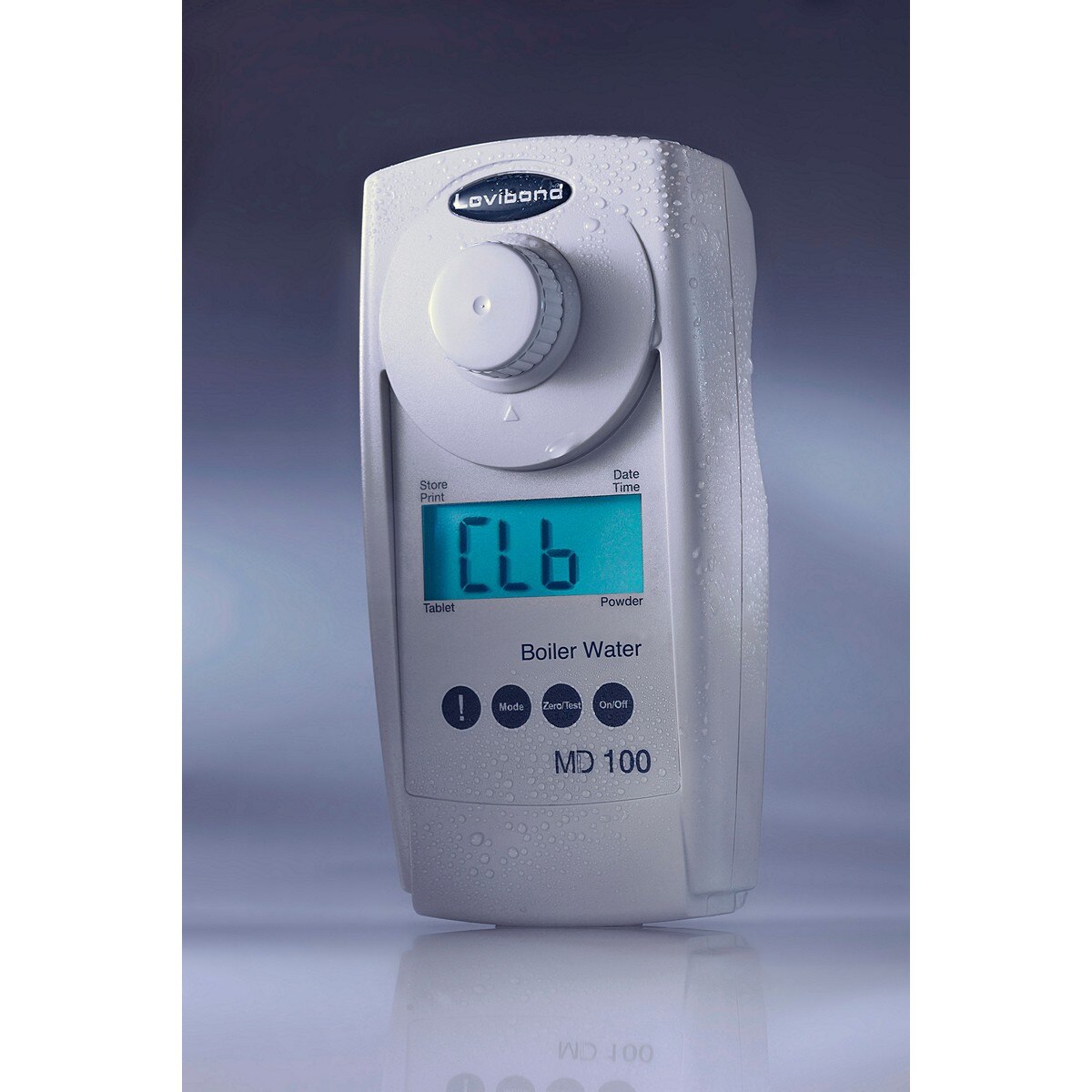

Lovibond® MD 100 Colorimeter – Boiler Water

Lovibond® MD 100 Colorimeter – Boiler Water

This Lovibond® MD 100 is a multi-parameter colorimeter tailored for comprehensive boiler water analysis. With factory-programmed methods and rugged waterproof construction, it’s ideal for field and lab use in power plants, industrial systems, and water treatment facilities.

Also known as a photometer, this device supports a wide range of boiler water parameters using tablet and powder reagents.

Key Features:

• Measurement Parameters:
  • Aluminium PP: 0.01–0.25 mg/L Al
  • Chloride L (B): 0.5–20 mg/L Cl⁻
  • Copper T: 0.05–5.00 mg/L Cu
  • DEHA PP: 0.02–0.5 mg/L DEHA
  • Hydrazine P: 0.05–0.5 mg/L N₂H₄
  • Iron LR L (A): 0.03–2.00 mg/L Fe
  • Oxygen Dissolved C: 10–800 µg/L O₂
  • Phosphate HR L: 5–80 mg/L PO₄
  • Polyacrylate L: 1–30 mg/L
  • Silicate HR PP: 1–90 mg/L SiO₂

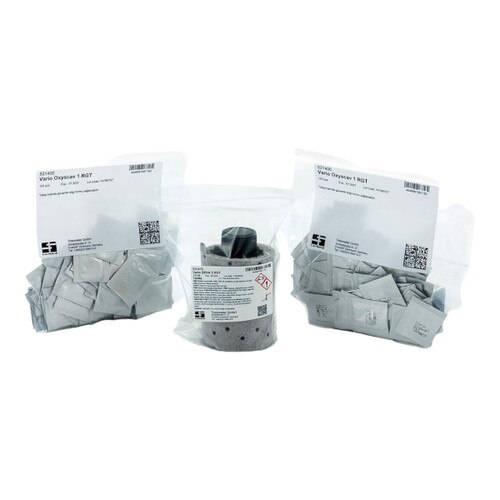

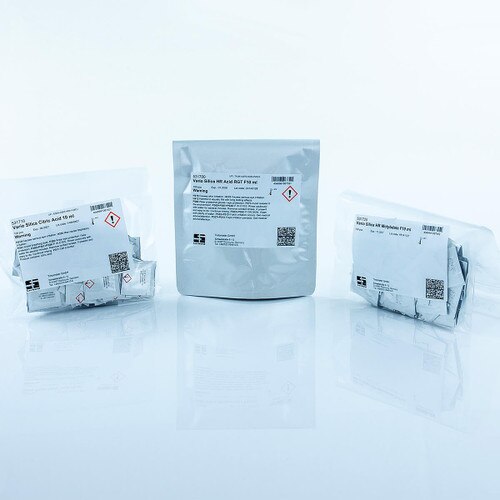

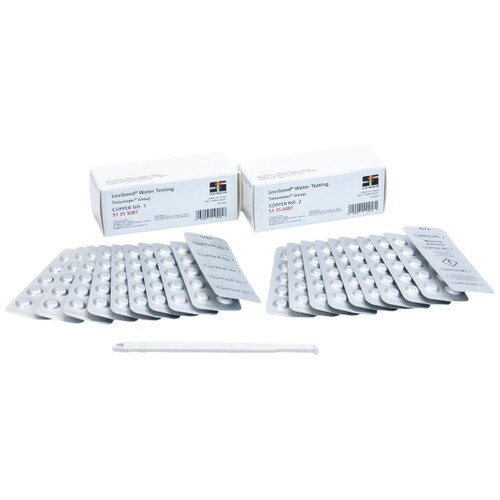

• Reagent Type: Tablet and VARIO powder reagents (parameter-specific)
• Optical System: LED with interference filter, 5 nm bandwidth
• One-Time-Zero (OTZ): Zero once per series—no need to re-zero between tests
• User Calibration: One-point calibration; ABS and %T supported
• Data Storage: Stores 16 results with date/time stamp; IRiM-compatible
• Waterproof Rating: IP68; submersible up to 1 hour at 0.1 m; floats if dropped
• Interface: Scroll-driven menu and last-result recall
• Ergonomic Design: Compact housing with rubber feet for lab stability

Technical Specifications:

• Wavelengths: 430 nm, 530 nm, 560 nm, 580 nm, 610 nm
• Power Supply: 4 × AAA batteries (approx. 5000 tests)
• Display Units: mg/L, µg/L, ABS, %T
• Memory: 16 test results
• Warranty: 2 years

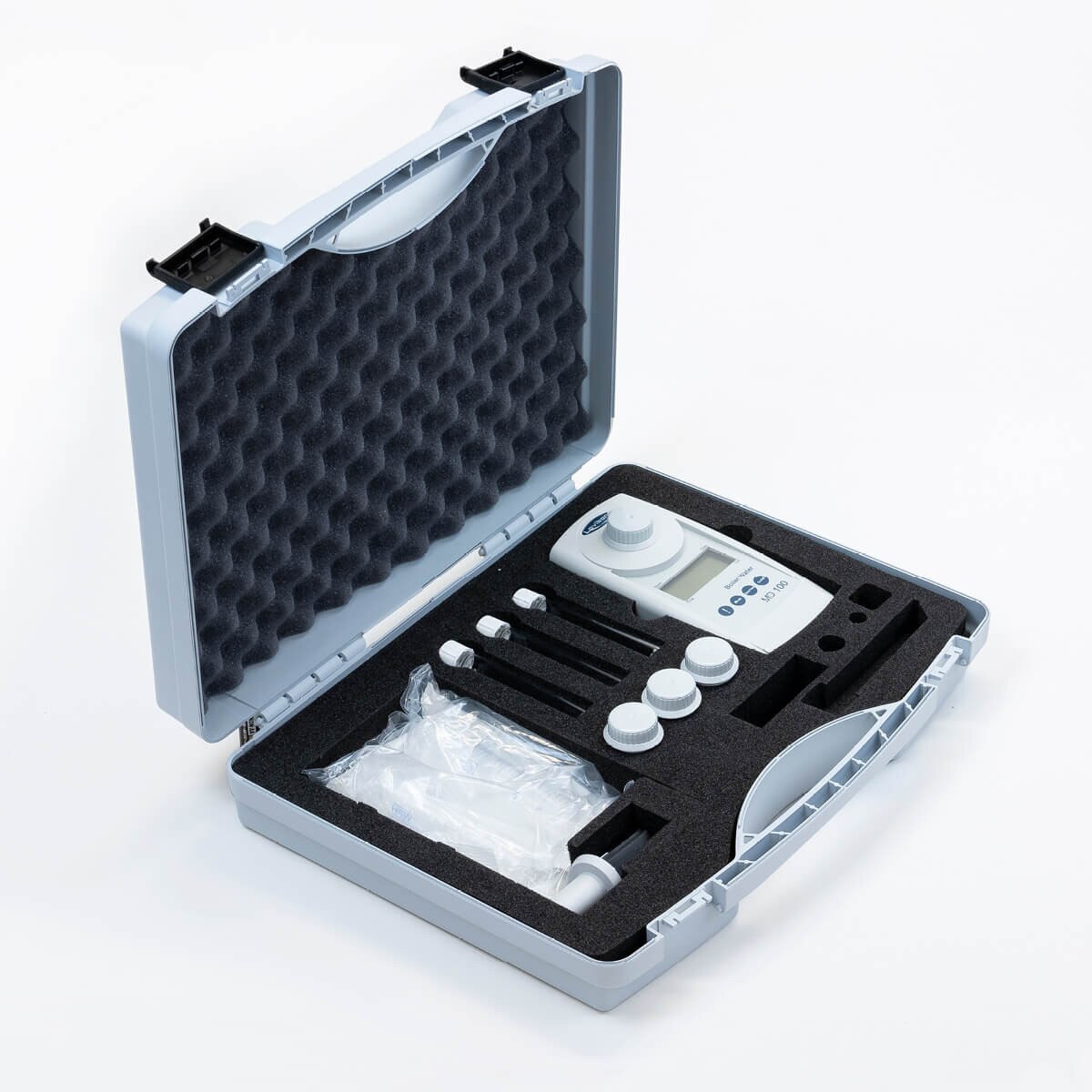

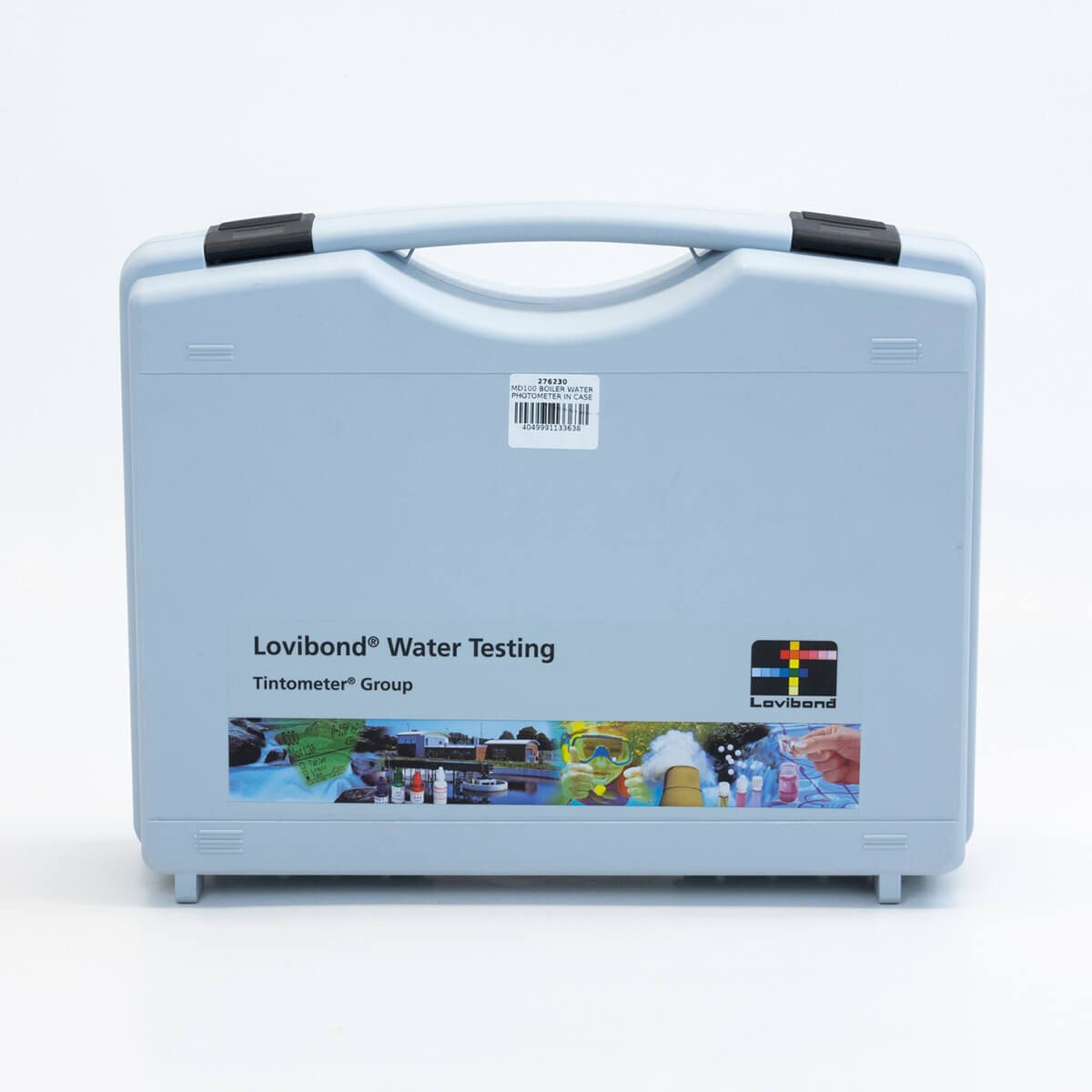

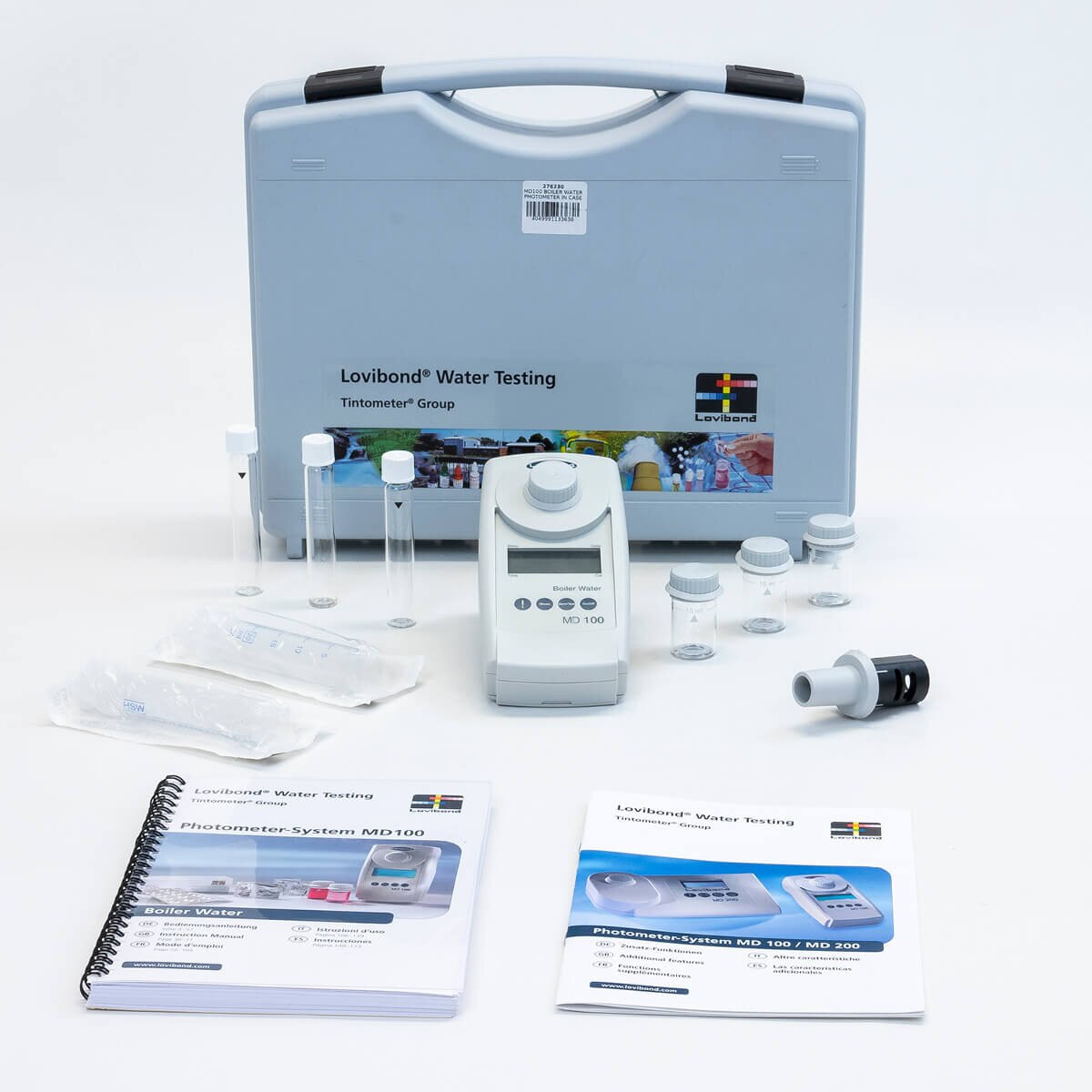

• Included Accessories: 3 × 24 mm round glass vials with lids; reagent starter set (parameter-specific); stirring rod; brush; instruction manual; certificate of compliance; carrying case

Applications:

Ideal for boiler water treatment, corrosion control, scale prevention, and industrial water quality monitoring, the MD 100 Boiler Water model delivers reliable multi-parameter analysis in the field or lab.
