Lovibond® MD 110 Colorimeter, Chlorine/Bromine/pH/Cyanuric Acid/Alkalinity‑m/Calcium Hardness, Tablet Reagents, Bluetooth®

Lovibond® MD 110 Colorimeter, Chlorine/Bromine/pH/Cyanuric Acid/Alkalinity‑m/Calcium Hardness, Tablet Reagents, Bluetooth®

The Lovibond® MD 110 is a portable, waterproof colorimeter designed for multi‑parameter water analysis using high‑stability tablet reagents. With Bluetooth® connectivity, LED interference‑filter optics, and a rugged IP68 housing, the MD 110 delivers fast, accurate, and reproducible results in the field or laboratory. It is ideal for pool and spa service, drinking water, wastewater, industrial water, and disinfection control applications.

Key Features

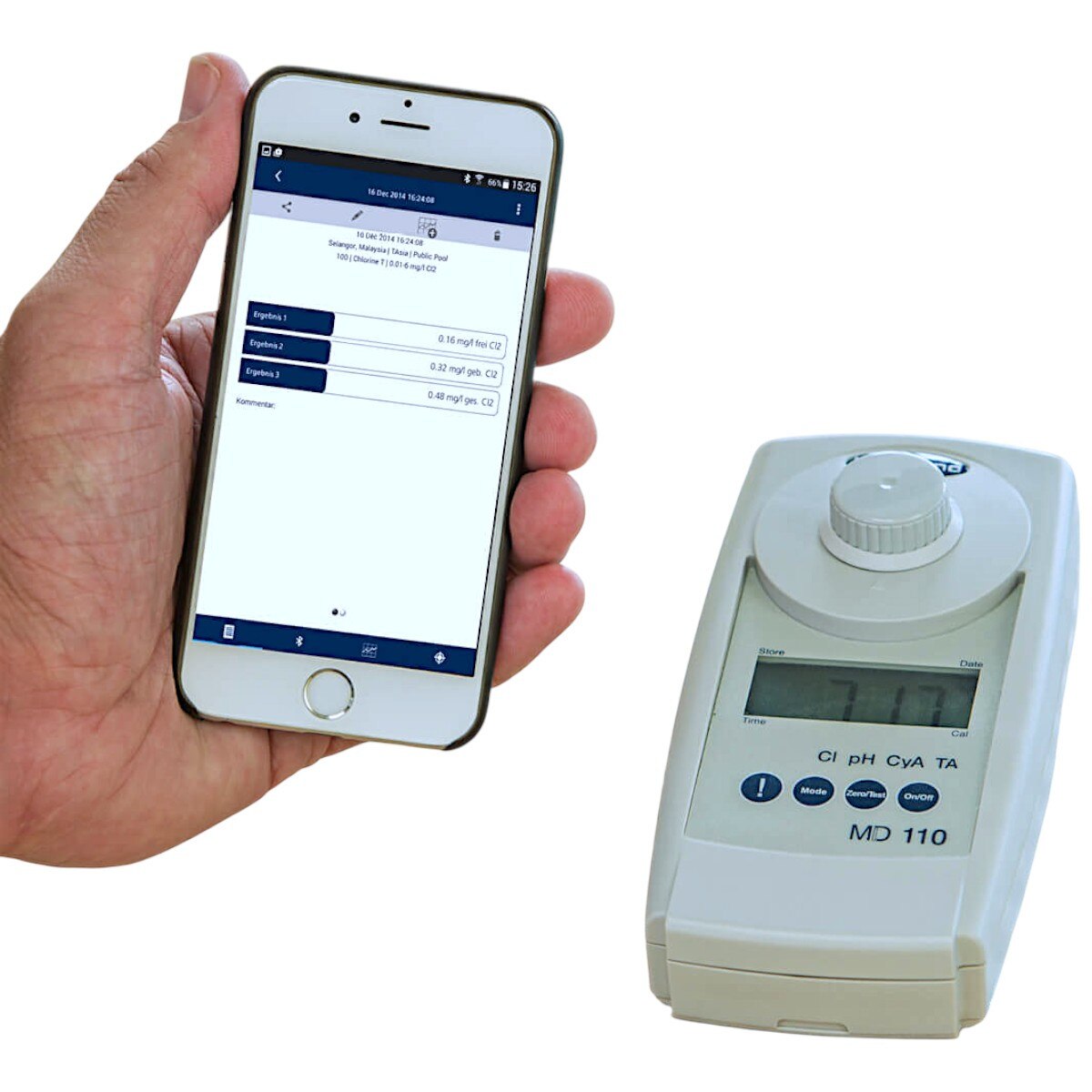

• Bluetooth® data transfer: Send results directly to mobile devices or PCs for evaluation, reporting, and CSV export.
• Waterproof IP68 design: Floats if dropped; watertight for up to 1 hour at 0.1 m.
• Accurate LED/IF optics: LEDs with interference filters ensure stable, reproducible measurements.
• User calibration mode: One‑point calibration with display options in ABS or %T.
• One‑time‑zero function: Zero once per sample; no need to re‑zero between tests.
• Automatic data storage: Stores the last 16 readings with time/date stamp; exportable via IRiM or Bluetooth®.
• Scroll‑driven menu: Simple interface that automatically recalls the last test used.
• Factory programmed: Up to 14 calibration curves pre‑installed for immediate use.
• Portable ergonomic design: Compact housing with rubber feet for stable bench‑top operation.

Measuring Parameters & Ranges

• Alkalinity‑m: 5–200 mg/L CaCO₃ (Acid/Indicator)
• Bromine: 0.05–13 mg/L Br₂ (DPD)
• Chlorine HR: 0.1–10 mg/L Cl₂ (DPD)
• Chlorine LR: 0.02–4.0 mg/L Cl₂ (DPD)
• Chlorine Total: 0.01–6.0 mg/L Cl₂ (DPD)
• Cyanuric Acid: 10–160 mg/L (Melamine)
• Calcium Hardness: 20–500 mg/L CaCO₃ (Murexide)
• pH: 6.5–8.4 (Phenol Red)

Technical Specifications

• Optics: LEDs with interference filters (430, 530, 560, 580, 610, 660 nm)
• Wavelength Accuracy: ±1 nm
• Photometric Range: –2500 to +2500 mAbs
• Display: Backlit LCD
• Interfaces: Bluetooth®
• Internal Memory: 125 data sets
• Battery Life: ~17 hours (4 × AAA)
• Operation: Foil keypad
• Calibration: Factory + user calibration; resettable
• Portability: Handheld, field‑ready
• Compliance: CE
• Dimensions: 6.1 × 2.95 × 1.38 in

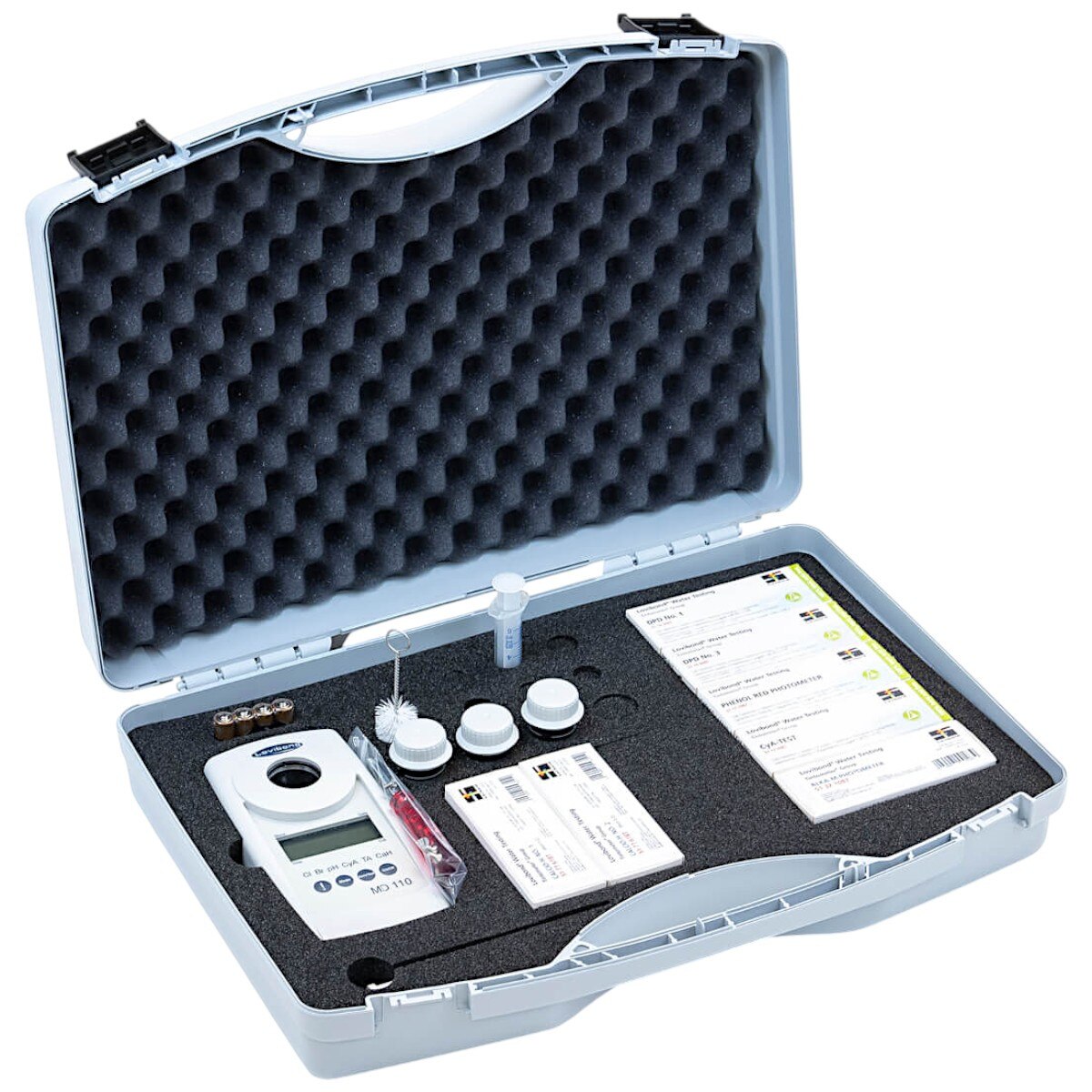

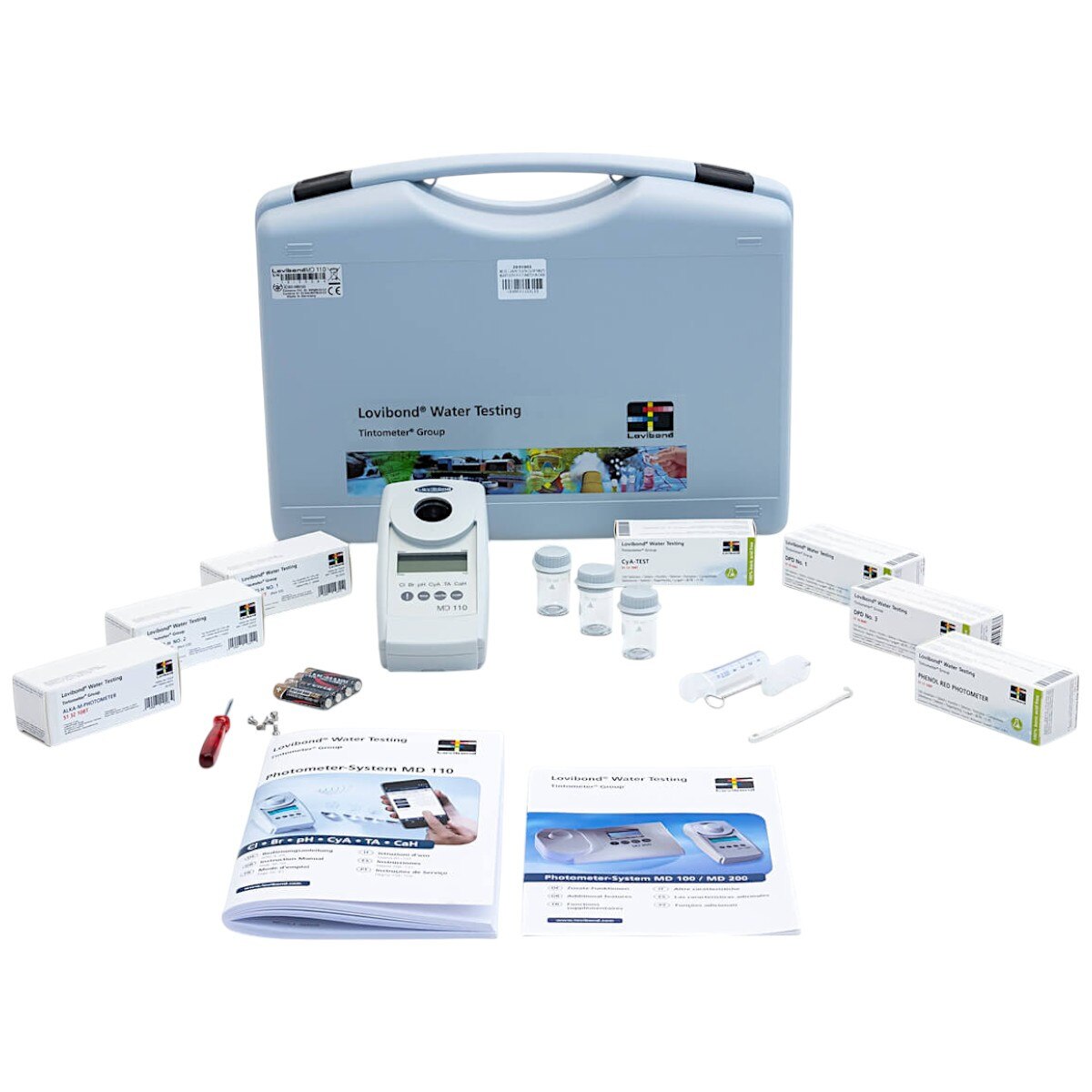

Included with the MD 110

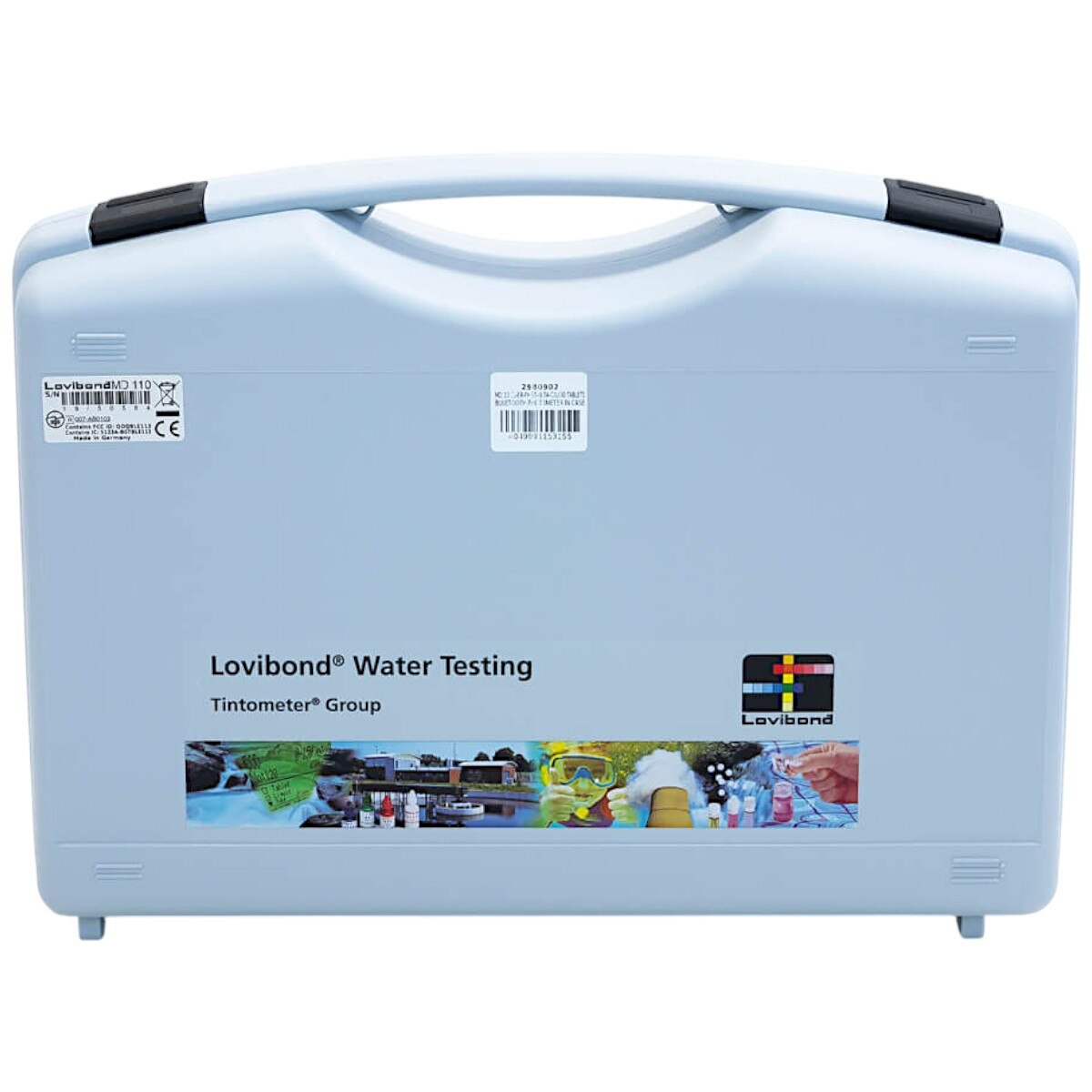

• Instrument in plastic carrying case
• 4 × AAA batteries
• 100 × DPD No.1 tablets
• 100 × DPD No.3 Evo tablets
• 100 × Phenol Red tablets
• 100 × Cyanuric Acid tablets
• 100 × Alkalinity‑m tablets
• 100 × Calcium Hardness No.1 tablets
• 100 × Calcium Hardness No.2 tablets
• 3 × round glass vials with lids and sealing rings
• Stirring rod
• Brush
• 5 mL syringe
• Instruction manual
• Manual of Methods
• Certificate of Conformity (COC)
• Warranty information

Compatible Accessories

• Water sampler & 250 mL bottle — 170500
• AAA batteries, set of 4 — 1950026
• Round cuvettes (24 mm), sets of 5 or 12 — 197620 / 197629
• Round cuvettes (16 mm), set of 10 — 197665
• Adapter for 16 mm cuvettes — 19802190
• Mixing cylinder, 25 mL — 19802650
• Verification Standard Kit MD 100/200 — 215670
• Bluetooth® software + dongle — 2444480
• Chlorine reference kits — 275650 / 275655 / 275656
• pH reference standard — 275670
• Stirring rods (10–13 cm) — 364100 / 364109
• Plastic stirring rods, box of 10 — 364120 / 364130
• Membrane filter set — 366150
• 250 mL bottle with cap — 375072
• Brush, 11 cm — 380230
• Measuring beaker, 100 mL — 384801
• Cuvette stands — 418951 / 418957
• Plastic funnel — 471007
• ValidCheck Chlorine 1.5 mg/L — 48105510

The MD 110 is a robust, multi‑parameter colorimeter designed for professionals who need reliable, portable water analysis with Bluetooth® data transfer and high‑stability tablet reagents.
