LSC-PU1190X1LS
Images are for representation only. Actual product may differ in size, color or options.

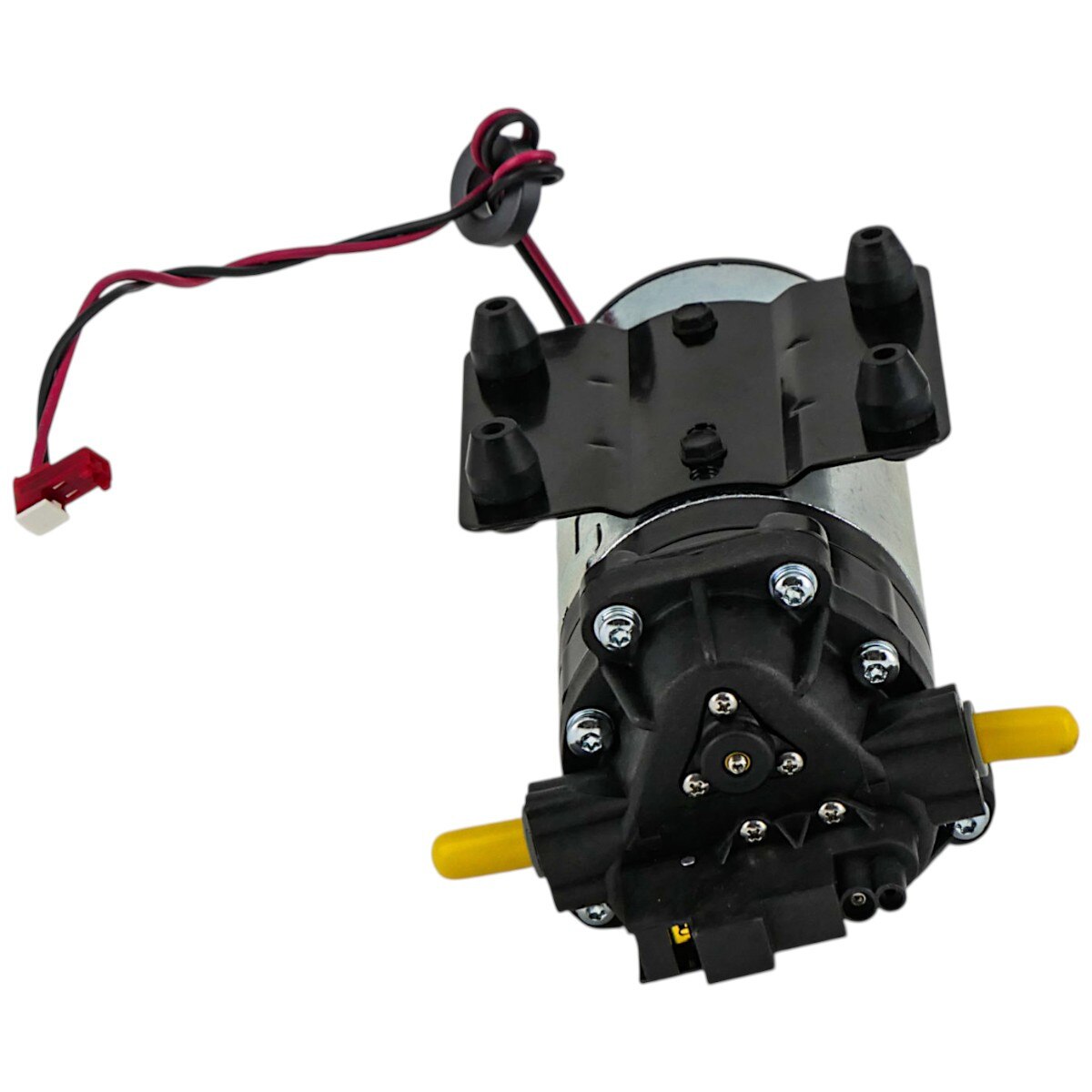

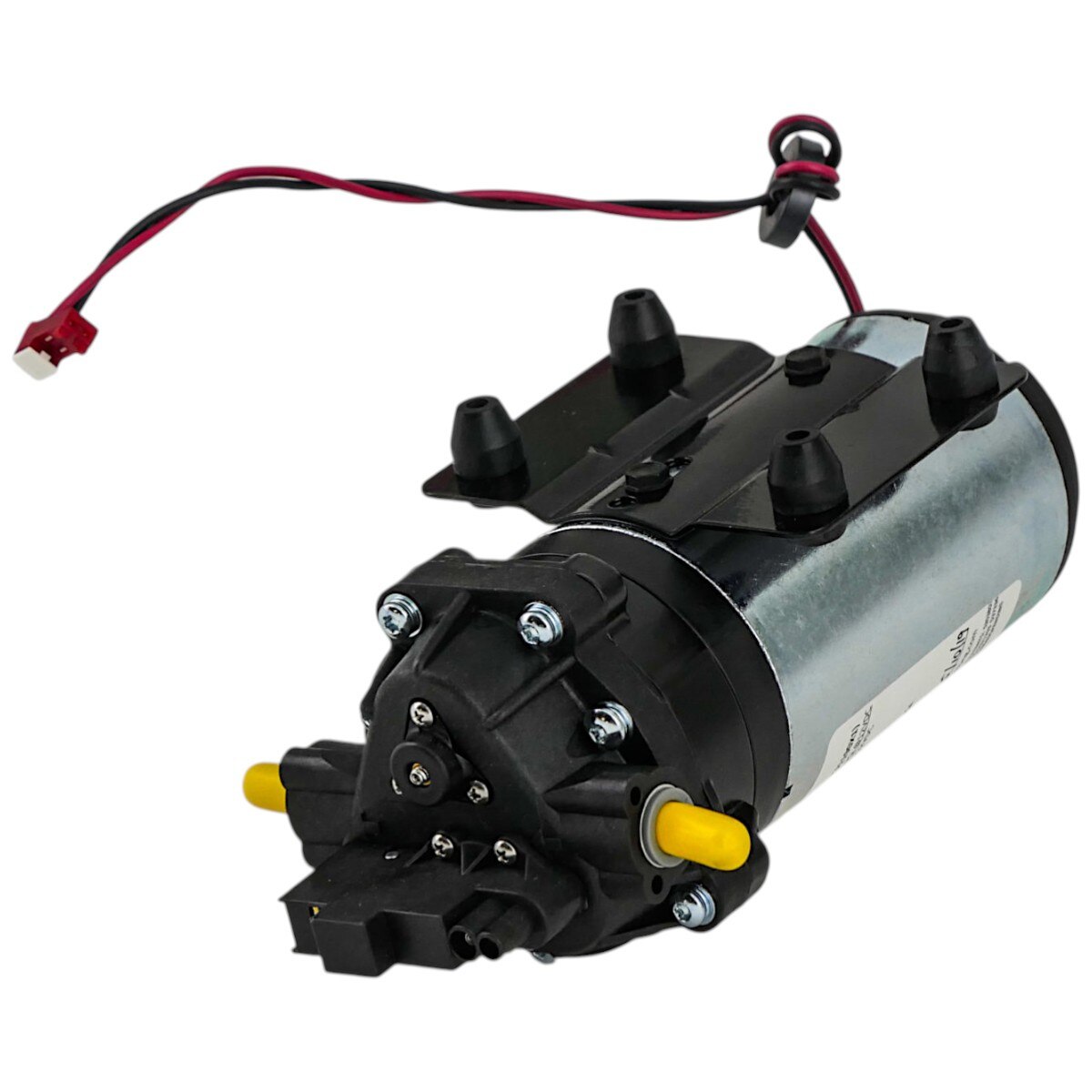

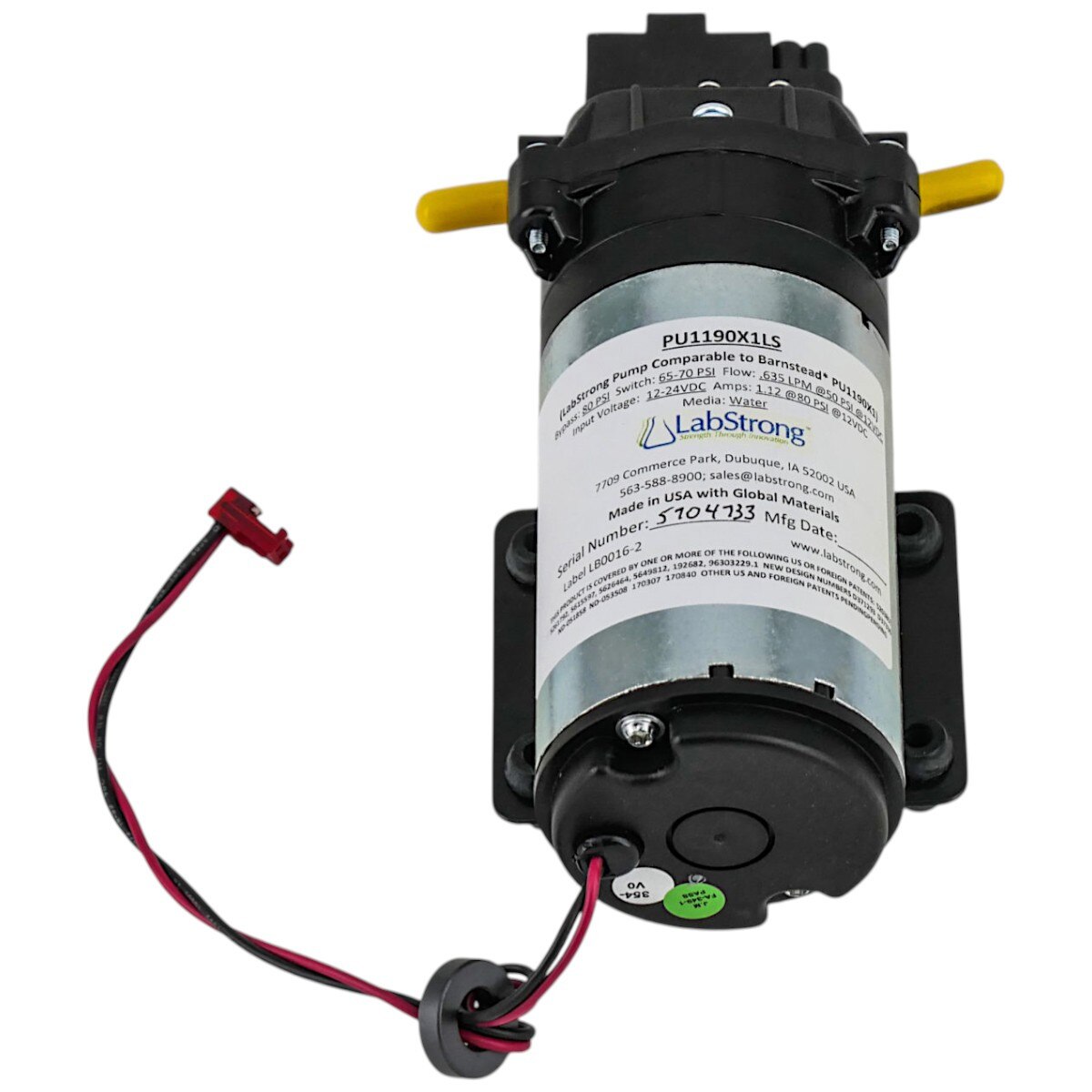

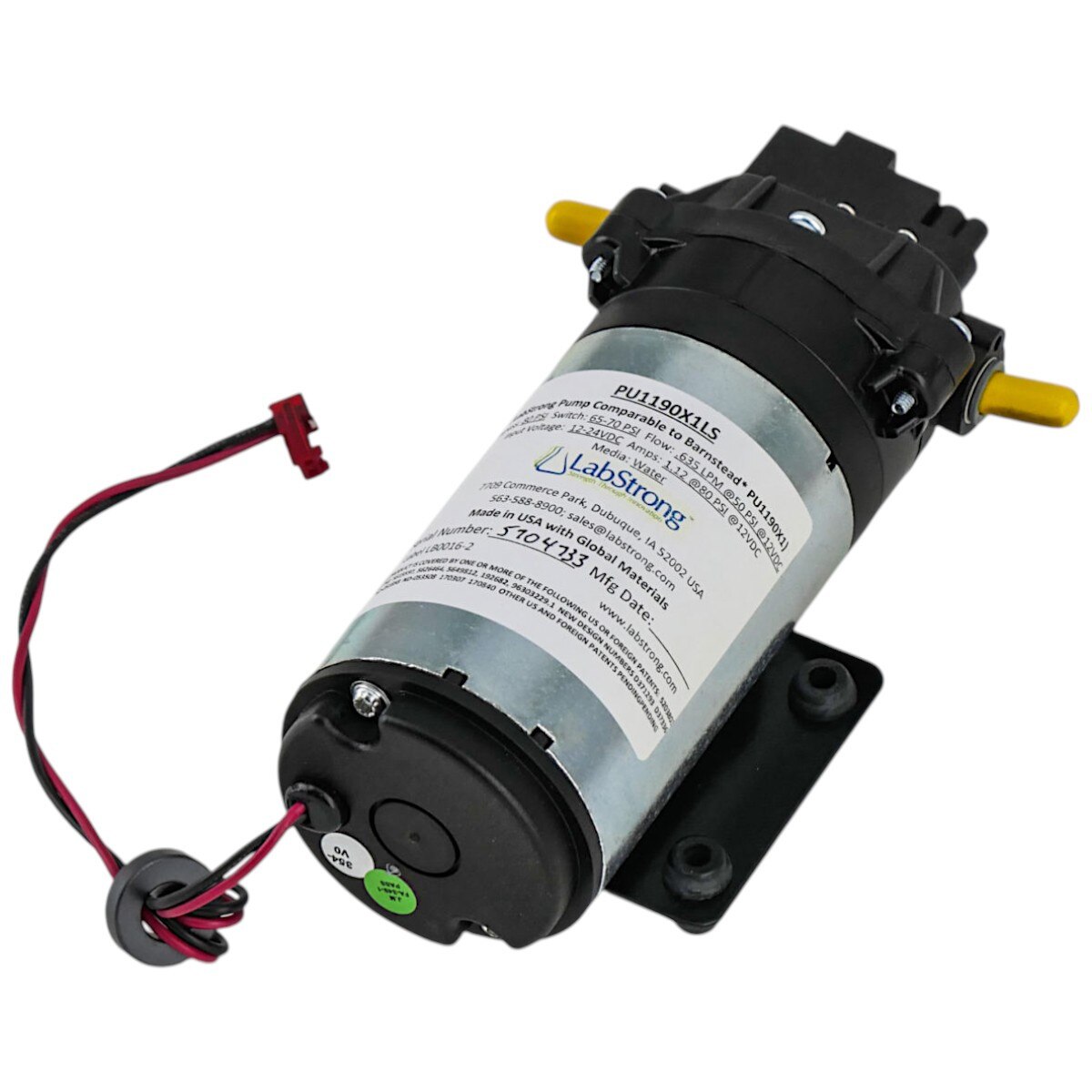

LabStrong Diaphragm Pump
The LabStrong PU1190X1LS diaphragm pump is comparable to the Thermo Scientific™ Barnstead™ PU1190X1 diaphragm pump. The diaphragm pump can be used with the Thermo Scientific™ Barnstead™ NANOpure™ Infinity Retrofit Kit (PU896X3) and NANOpure DIamond™ water purification systems. The diaphragm pump is also used with the distribution Boost Pump (AY1268X1). The diaphragm pump provides outstanding quality at a lower cost than the competitor’s.
The function of the recirculation diaphragm pump in the Thermo Scientific™ Barnstead™ NANOpure water purification systems is to recirculate purified water during inactivity. The recirculation process helps to ensure water purity and allows for on-demand use of water. When the diaphragm pump is used as a distribution Boost Pump, it helps to compensate for longer tubing runs and for water storage reservoirs above the level of a NANOpure water purification system or feed source. The high-quality pump provides optimal flow rates, constant pressure, and quiet operation.
Product Specifications:
The LabStrong PU1190X1LS diaphragm pump is comparable to the Thermo Scientific™ Barnstead™ PU1190X1 diaphragm pump. The diaphragm pump can be used with the Thermo Scientific™ Barnstead™ NANOpure™ Infinity Retrofit Kit (PU896X3) and NANOpure DIamond™ water purification systems. The diaphragm pump is also used with the distribution Boost Pump (AY1268X1). The diaphragm pump provides outstanding quality at a lower cost than the competitor’s.
The function of the recirculation diaphragm pump in the Thermo Scientific™ Barnstead™ NANOpure water purification systems is to recirculate purified water during inactivity. The recirculation process helps to ensure water purity and allows for on-demand use of water. When the diaphragm pump is used as a distribution Boost Pump, it helps to compensate for longer tubing runs and for water storage reservoirs above the level of a NANOpure water purification system or feed source. The high-quality pump provides optimal flow rates, constant pressure, and quiet operation.
Product Specifications:
- Part Number: PU1190X1LS
- Comparable Thermo Scientific™ Barnstead™ Part Number: PU1190X1
- Product Type: Replacement Diaphragm Pump for Water Purification Systems
- Compatible With: Thermo Scientific™ Barnstead™ NANOpure Infinity Retrofit Kit (PU896X3), NANOpure DIamond Water Purification Systems and distribution Boost Pump (AY1268X1)
- Physical Dimensions (Length x Width x Height): 8.5 x 4 x 3.5 inches
- Flow: .635 liters per minute at 50 PSI at 12 VDC
- By-Pass Setting: 80 PSI
- Pressure Switch: 65 to 70 PSI
- Input Voltage: 12 to 24 VDC
- Amps: 1.12 A at 80 PSI at 12 VDC
- Wire Color: Red wire is positive and black wire is negative
- Duty Rating: Continuous Duty
- Media Use: Water (Diaphragm pump can be ran dry without damage)
- Pressure Switch: Contains both N.C. and N.O. connections
- Characteristics: Recirculates water in water purification systems and distribution.
Product Type: | Diaphragm Pump |
Brand: | LabStrong |
Range: | .635 L per minute |
Max Pressure (PSI): | 80 |
For Models: | Thermo Scientific Barnstead™ NANOpure Infinity Retrofit Kit (PU896X3), NANOpure DIamond Water Purification Systems and distribution Boost Pump (AY1268X1) |
