LTG-UHADO-16

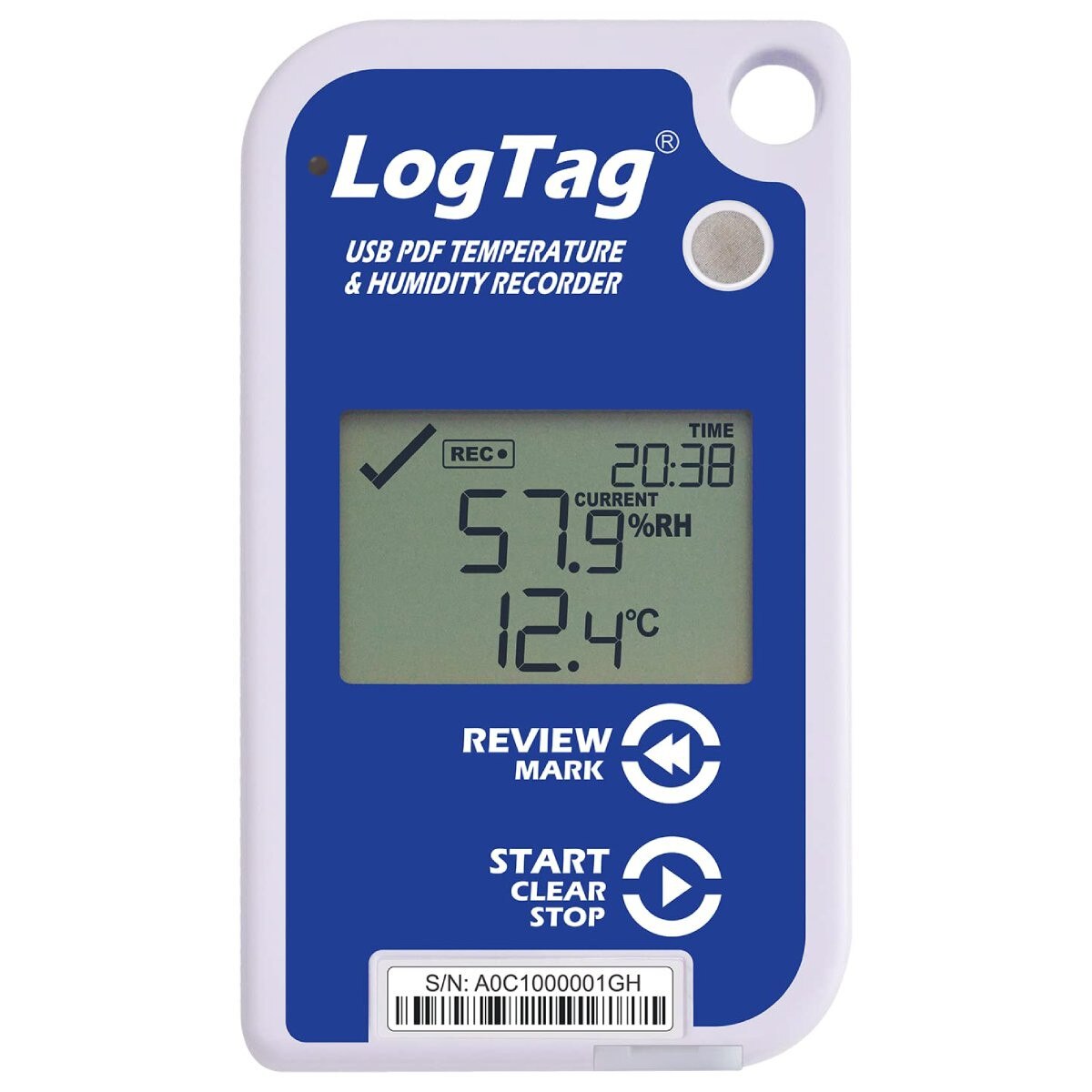

LogTag UHADO-16 Datalogger, -30°C to 70°C (-22°F to 158°F), 0% to 100% RH
The LogTag® UHADO-16 Temperature & Humidity logger measures and stores up to 16,000 sets of high resolution humidity and temperature readings over a measurement range of 0~100% RH and -30°C to +70°C (-22°F to +158°F).
The display shows current Temperature & Humidity readings, Alarm status and Recording status. By pushing the “Review” button, the user can check minimum and maximum Temperature & Humidity readings for the trip, and the duration of any Temperature & Humidity recordings in the Alarm range.
The UHADO-16 can be connected directly to a computer for configuration and data download using a standard Micro-USB to USB cable. The user has the option of automatically generating a PDF report on download. In addition, the UHADO-16 is fitted with three contact pins, meaning that it can be used with the LogTag® LTI-USB, LTI-HID and LTI-WiFi Interface Cradles. Data can be processed using readily available LogTag® Analyzer and LogTag® Online cloud.
Features:
- Record and display Temperature & Humidity readings simultaneously
- New, easy to read LCD display with 30 day summary in calendar format
- Up to 16,000 sets of recordings - enough for the longest trip
- Real time clock provides date/time stamp for every recording
- USB micro-port for direct connection to a computer
- Automatic generation of a PDF report without special software
- Supports fast download using standard and Wifi LogTag® Interface cradles
- User configuration for alarm setting, logging interval, trip duration etc.
- In transit inspections can be recorded at the push of a button
- User replaceable CR2032 coin cell battery
| Product Type: | Data Logger |
| Brand: | LogTag |
| Class: | Multi-Use |
| Material: | ABS |
| Temperature Range: | -30°C to 70°C (-22°F to 158°F) |
| Temperature Resolution: | Better than 0.1°C or 0.1°F |
| Humidity Range: | 0% RH to 100% RH |
| Humidity Resolution: | Better than 0.1% RH |
| Data Logging Duration: | 16,129 pairs of humidity and temperature readings (can be rest after max is reached) |
| Data Logging Interval: | Configurable; 30 seconds to hourly |
| Connections: | Interface Cradle or USB 2.0 / Micro USB plug |
| Power Supply: | CR2032 Coin Battery, User Replaceable |
| IP Rating: | IP61 |
| Overall Dimensions: | 3.67 x 2.14 x 0.33 inches (93 x 54.5 x 8.6 mm) |
| Working Environment: | -30°C to 70°C (-22°F to 158°F) |
