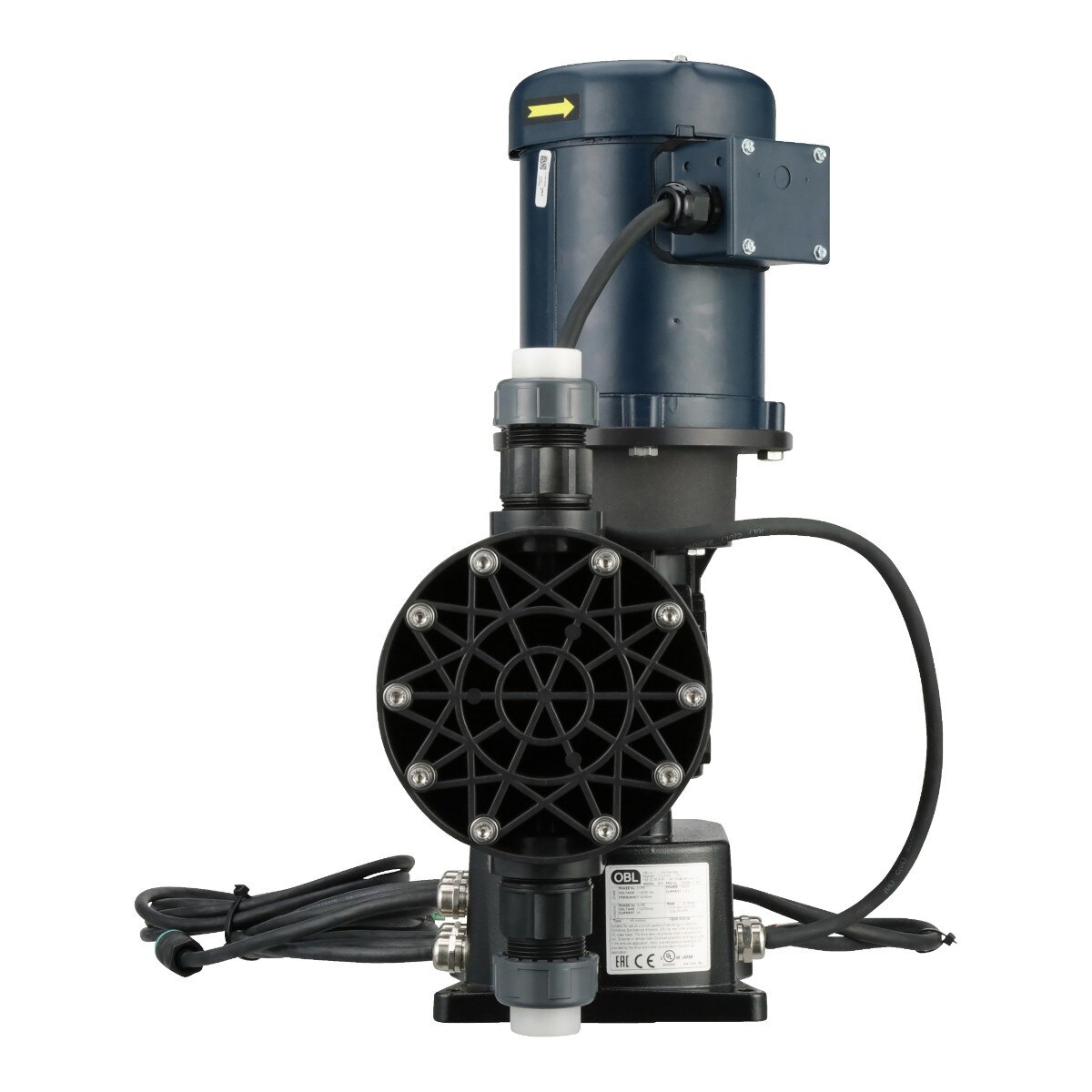

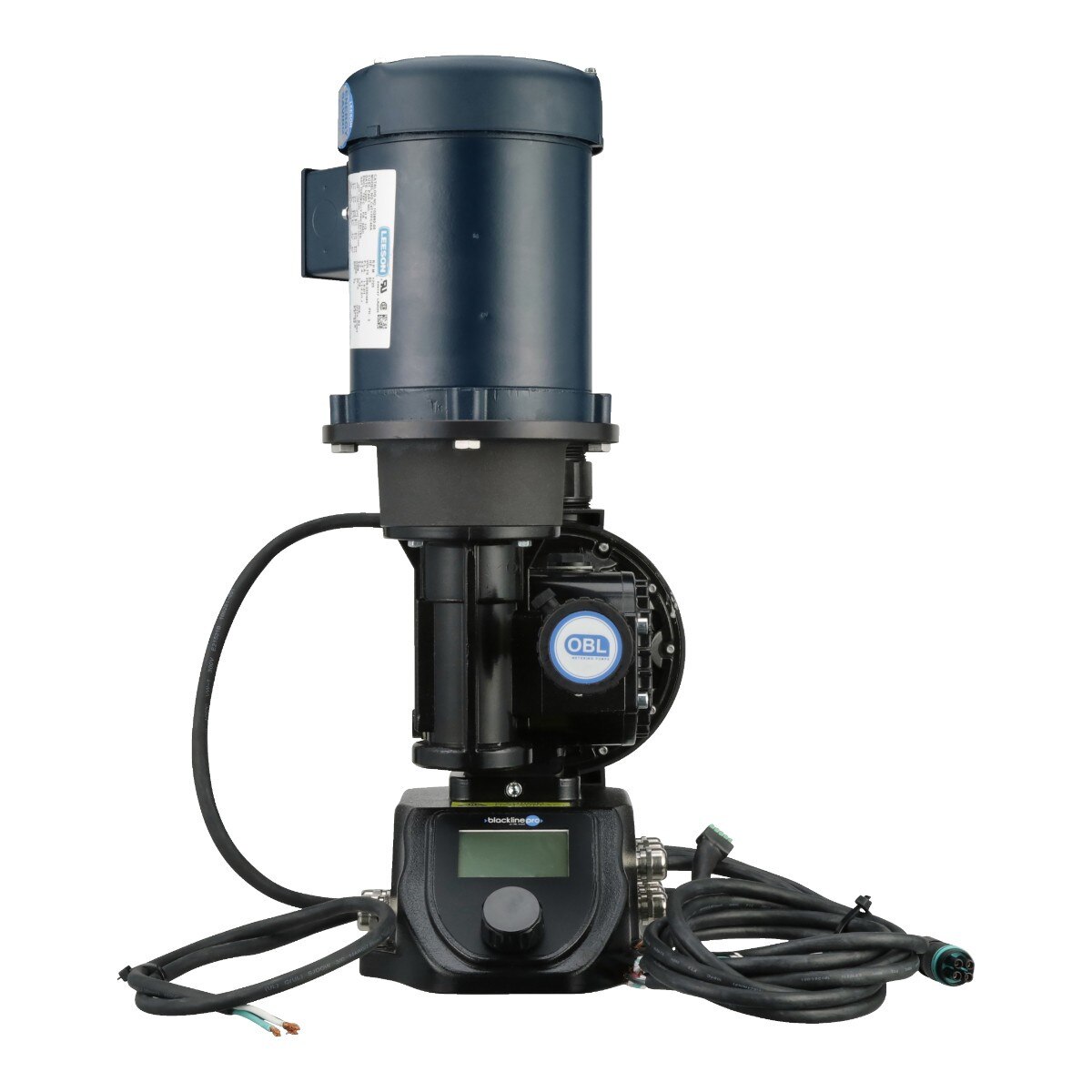

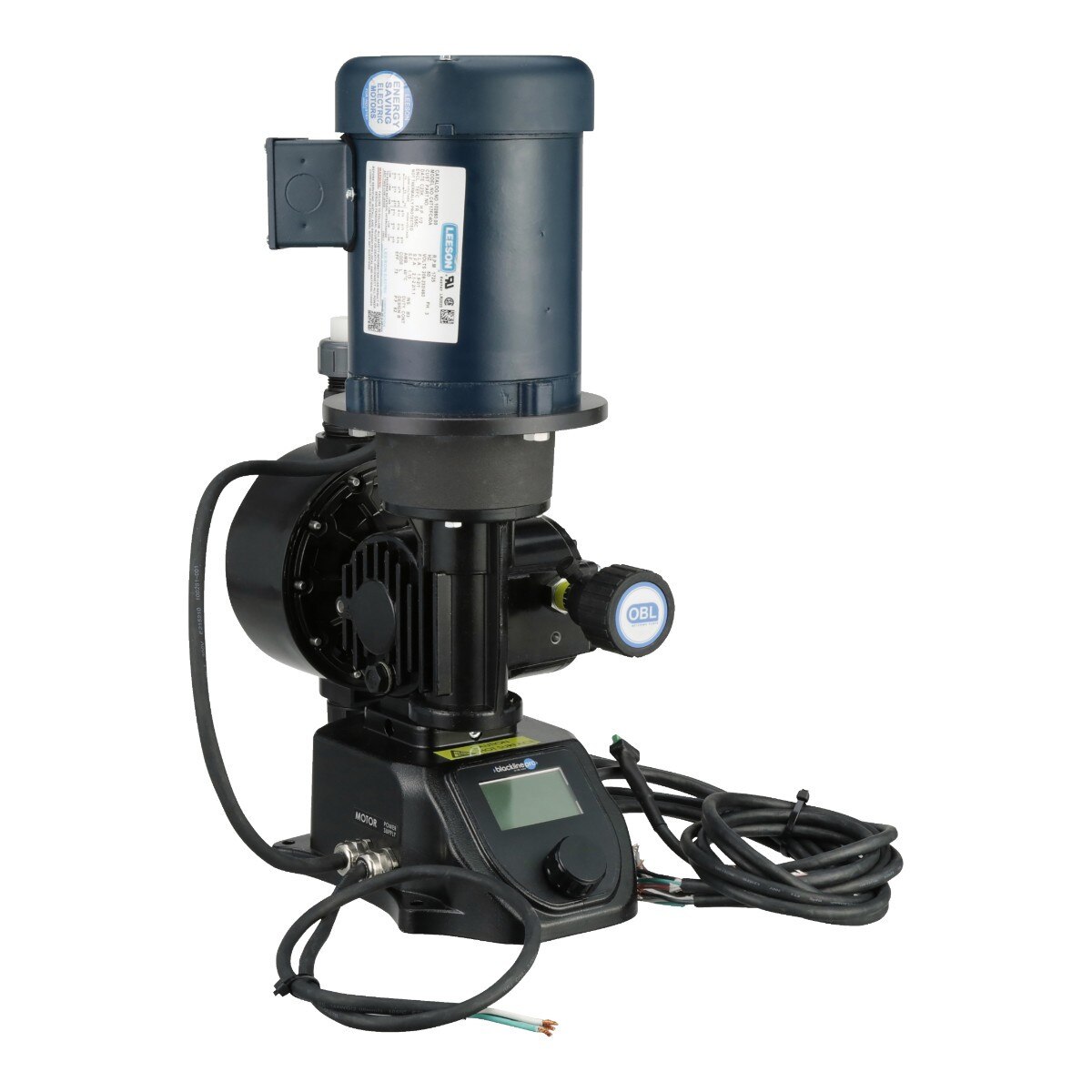

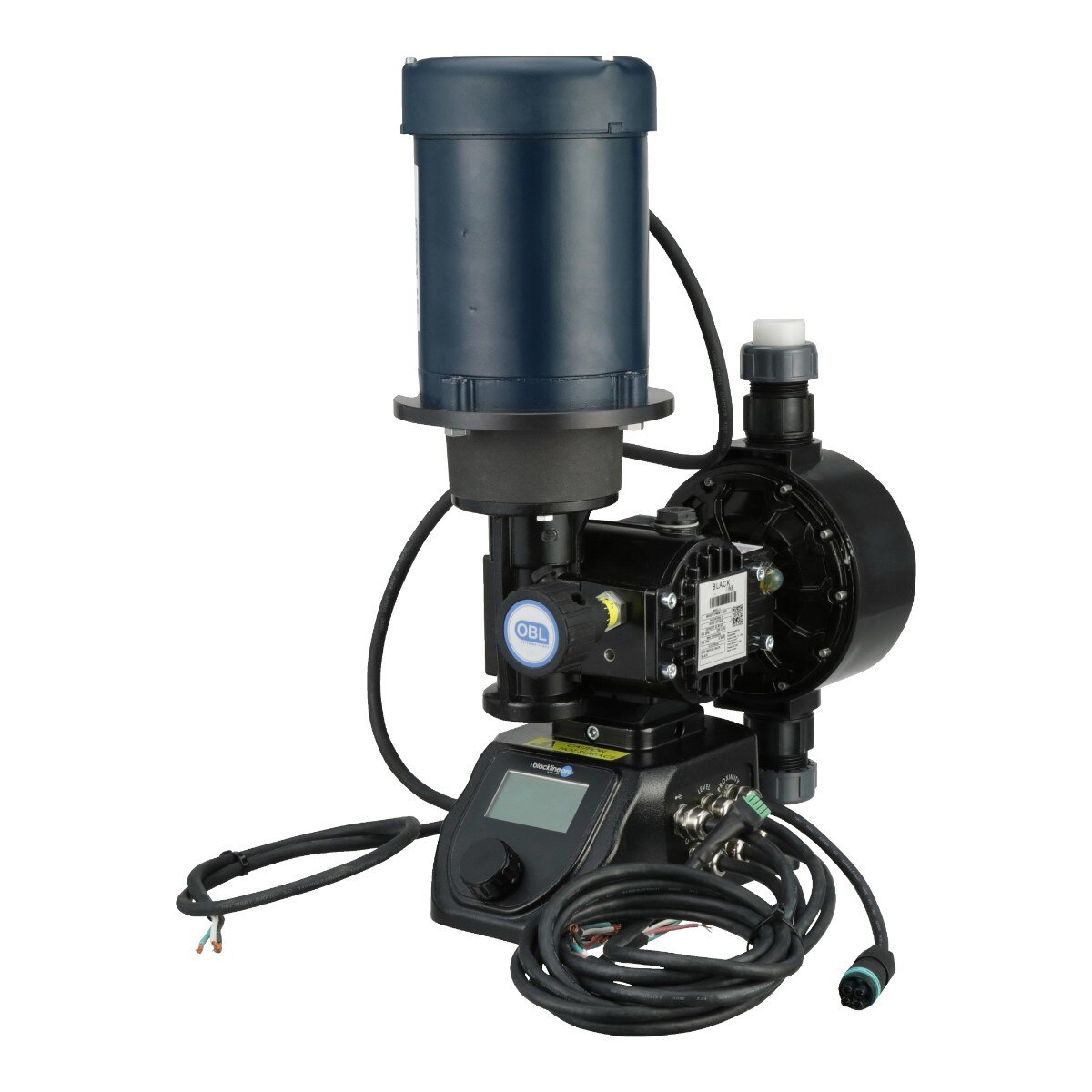

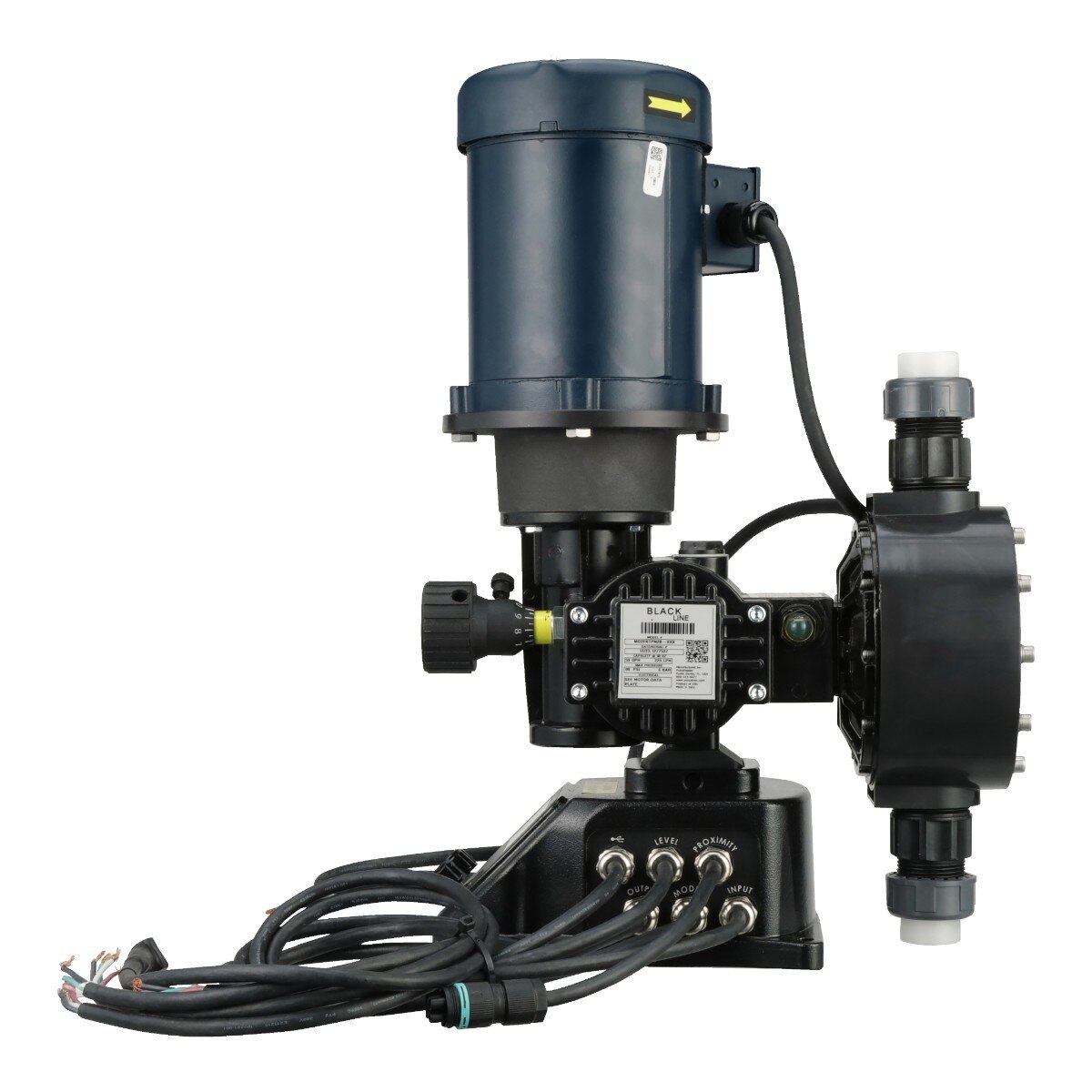

Blackline Pro Metering Pump, 98 GPH @ 75 PSI, 115/230V with Pro Controller (VFD)
Images are for representation only. Actual product may differ in size, color or options.
Blackline Pro Metering Pump, 98 GPH @ 75 PSI, 115/230V with Pro Controller (VFD)
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | OBL Pumps |
| Product Line: | Blackline Pro |
| Max Flow (GPH): | 98 |
| Max Flow (GPD): | 2352 |
| Max Pressure (PSI): | 75 |
| Max Viscosity (CPS): | 500 |
| Max Strokes per Minute: | 138 |
| Turn Down Ratio: | 500:1 |
| Head/Fittings: | GFPL |
| Valve Balls: | Pyrex |
| Valve / Seat / O-Ring: | PVC |
| Motor: | TEFC - NEMA 56C, 1/2 Hp, 230/460 VAC, 50/60 Hz, 3 Phase |
| Connections: | Pipe 1/2" FNPT |
| Power Supply: | 115/230 VAC, 50/60 Hz, 1 Phase |
| Operating Modes: | Manual, Constant, Batch, Pause-Work, Proximity, Analog 4-20 mA, Analog Volt, PPM, Pause-Percent, MLQ, Pulse |
| Includes: | Installation, Operation, and Maintenance Instruction Manual |
