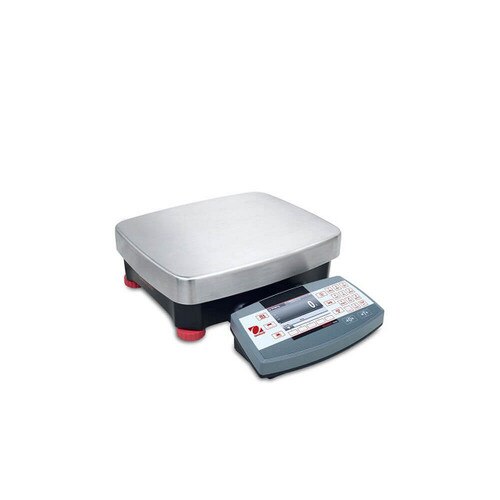

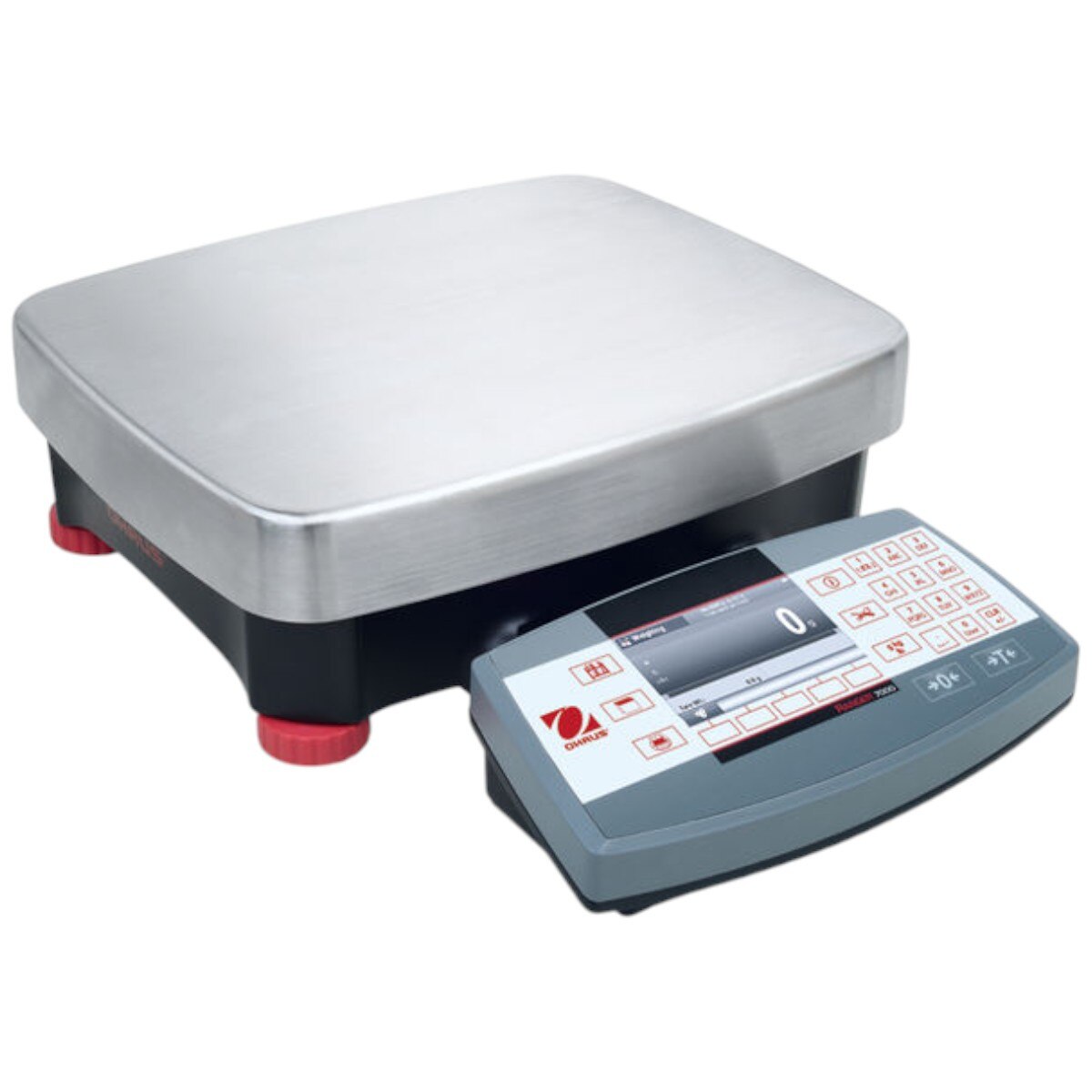

Ohaus Ranger 7000 Bench Scale, 70 lb / 35 kg Capacity (R71MD35)
Images are for representation only. Actual product may differ in size, color or options.
Ohaus Ranger 7000 Bench Scale, 70 lb / 35 kg Capacity (R71MD35)
Industrial-grade bench scale engineered for precision, speed, and durability. The Ranger 7000 R71MD35 delivers high-resolution weighing, advanced application modes, and robust connectivity for demanding lab and production environments.
Specifications
- Model Number: R71MD35
- Item Number: 30070312
- Maximum Capacity: 70 lb (35 kg)
- Readability: 0.001 lb (0.5 g)
- Certified Readability: 0.01 lb (5 g)
- Platform Size: 12.2 × 14.8 in (311 × 377 mm)
- Display: 4.3″ full-color TFT graphic LCD
- Dimensions: 18.4 × 5 × 14.9 in (467 × 128 × 377 mm)
- Power: AC adapter (included) or optional rechargeable battery
- Protection Rating: IP54
- Legal for Trade: NTEP Certified; Measurement Canada Approved
- Units of Measurement: Gram (g), Kilogram (kg), Pound (lb), Ounce (oz), Pound:Ounce (lb:oz), Custom
- Working Environment: 14°F – 104°F (–10°C – 40°C), 80% RH, non-condensing
Features
- Die-cast modular housing with stainless steel platform
- Checkweighing lights with audible alerts
- Integral weigh-below hook and level indicator
- Selectable operating languages and environmental settings
- USB and RS232 ports included; optional Ethernet and second RS232
- GLP/GMP data output with real-time clock
Applications
- Weighing and parts counting with auto optimization
- Percent weighing and advanced checkweighing
- Dynamic/animal weighing and display hold
- Filling, formulation, differential weighing
- Density determination and sieve analysis
| Product Type: | Bench Scale |
| Brand: | Ohaus |
| Product Line: | Ranger 7000 |
| Class: | Compact |
| Capacity: | 70 lb/35 kg |
| Readability: | 0.001 lb/0.5 g |
| Repeatability (S.D.): | ±2d |
| Linearity (±): | ±2d |
| Platform Dimensions: | 12.2 × 14.8 in (311 × 377 mm) |
| Power Supply: | Main power cord / Internal rechargeable battery |
| Display: | LCD |
| Interface: | Bi-directional RS-232 and USB |
| Calibration: | InCal Semi Automatic Internal Mass |
| Units of Measure: | Gram (g), Kilogram (kg), Pound (lb), Ounce (oz), Pound:Ounce (lb:oz), Custom |
| IP Rating: | IP54 |
| Base: | Steel |
| Net Weight: | 21.8 lb (9.9 kg) |
| Overall Dimensions: | 18.4 × 5 × 14.9 in (467 × 128 × 377 mm) |
| Includes: | ABS Indicator, In-use cover |
| Working Environment: | 14°F – 104°F (–10°C – 40°C), 80% RH, non-condensing |
| Certifications: | Measurement Canada NTEP Approved |
| Applications: | Animal Weighing Checkweighing Density Determination Display Hold Dynamic Weighing Filling Formulation Parts Counting Percent Weighing Sieve Analysis Weighing |
