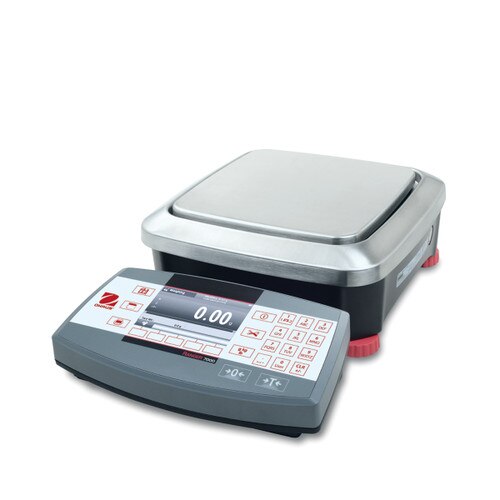

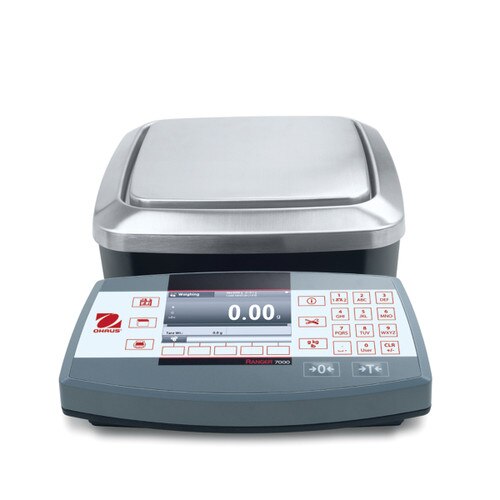

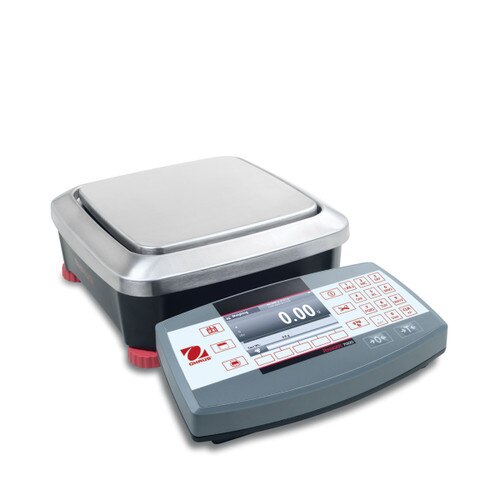

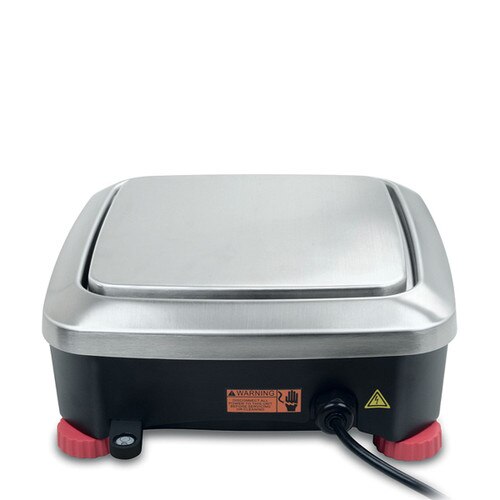

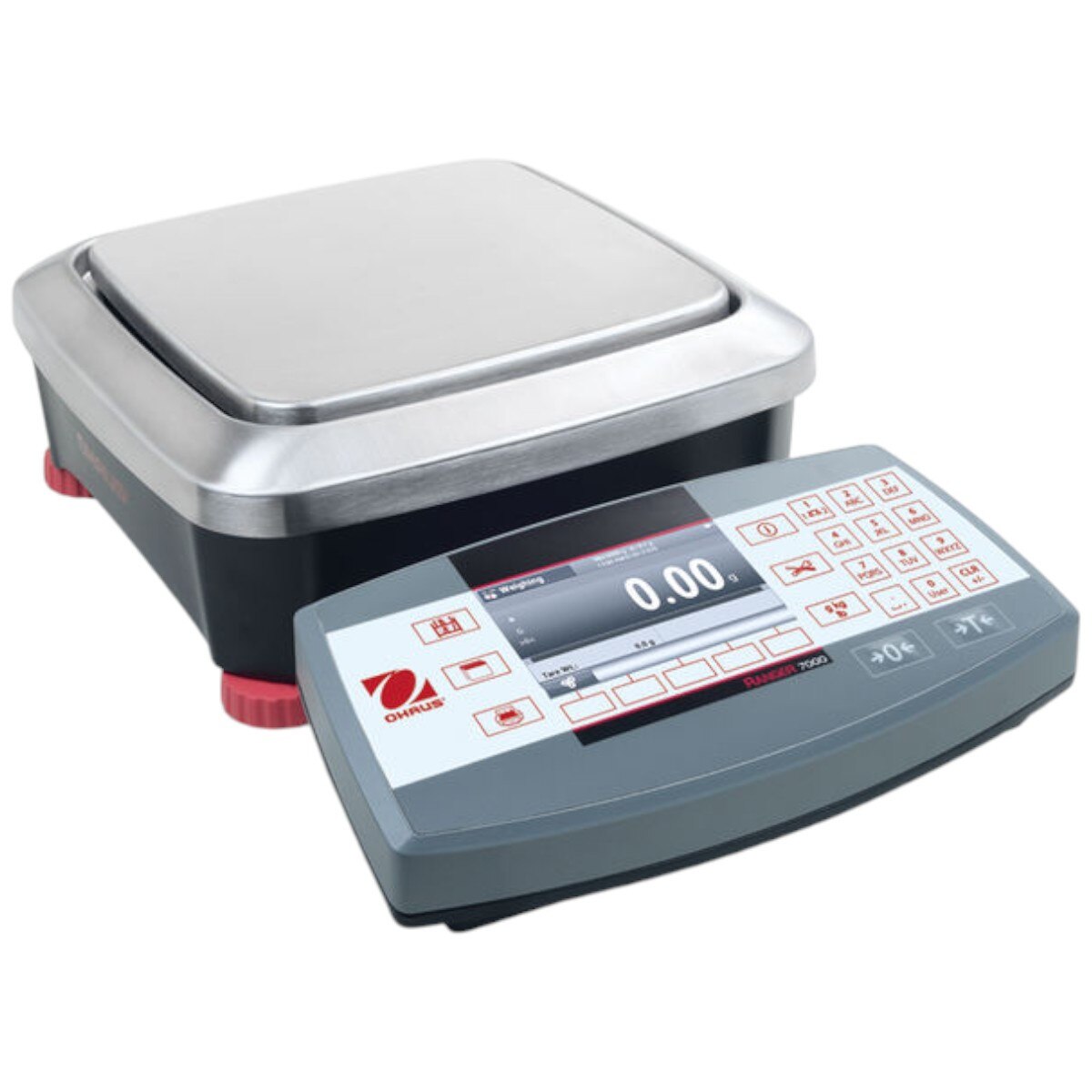

Ohaus Ranger 7000 Bench Scale, 6 lb / 3 kg Capacity (R71MHD3)
Images are for representation only. Actual product may differ in size, color or options.
Ohaus Ranger 7000 Bench Scale, 6 lb / 3 kg Capacity (R71MHD3)
Top-of-the-line industrial bench scale designed for precision weighing and advanced applications. The Ranger 7000 R71MHD3 offers high-resolution performance, robust construction, and versatile connectivity for demanding lab and production environments.
Specifications
- Model Number: R71MHD3
- Item Number: 30088840
- Maximum Capacity: 6 lb (3 kg)
- Readability: 0.00002 lb (0.01 g)
- Certified Readability: 0.0002 lb (0.1 g)
- Platform Size: 8.3 × 8.3 in (210 × 210 mm)
- Display: 4.3″ full-color TFT graphic LCD
- Dimensions: 16.5 × 4.5 × 11 in (420 × 114 × 280 mm)
- Power: AC adapter (included) or optional rechargeable battery
- Protection Rating: IP54
- Legal for Trade: NTEP Certified; Measurement Canada Approved
- Units of Measurement: Gram (g), Kilogram (kg), Pound (lb), Ounce (oz), Pound:Ounce (lb:oz), Custom
- Working Environment: 50°F – 85°F (10°C – 30°C), 80% RH, non-condensing
Features
- InCal™ semi-automatic internal calibration
- Die-cast modular housing with stainless steel platform
- Integral weigh-below hook and level indicator
- Checkweighing lights with audible alerts
- Selectable operating languages and environmental settings
- USB and RS232 ports included; optional Ethernet and second RS232
Applications
- Weighing and parts counting with auto optimization
- Percent weighing and advanced checkweighing
- Dynamic/animal weighing and display hold
- Filling, formulation, differential weighing
- Density determination and sieve analysis
| Product Type: | Bench Scale |
| Brand: | Ohaus |
| Product Line: | Ranger 7000 |
| Class: | Compact |
| Capacity: | 6 lb (3 kg) |
| Readability: | 0.00002 lb (0.01 g) |
| Repeatability (S.D.): | ±2d |
| Linearity (±): | ±2d |
| Platform Dimensions: | 8.3 × 8.3 in (210 × 210 mm) |
| Power Supply: | Main power cord / Internal rechargeable battery |
| Display: | LCD |
| Interface: | Bi-directional RS-232 and USB |
| Calibration: | InCal Semi Automatic Internal Mass |
| Units of Measure: | Gram (g), Kilogram (kg), Pound (lb), Ounce (oz), Pound:Ounce (lb:oz), Custom |
| IP Rating: | IP54 |
| Base: | Steel |
| Net Weight: | 16 lb (7.2 kg) |
| Overall Dimensions: | 16.5 × 4.5 × 11 in (420 × 114 × 280 mm) |
| Includes: | ABS Indicator, In-use cover |
| Working Environment: | 50°F – 85°F (10°C – 30°C), 80% RH, non-condensing |
| Applications: | Animal Weighing Density Determination Display Hold Dynamic Weighing Filling Formulation Sieve Analysis Weighing |
