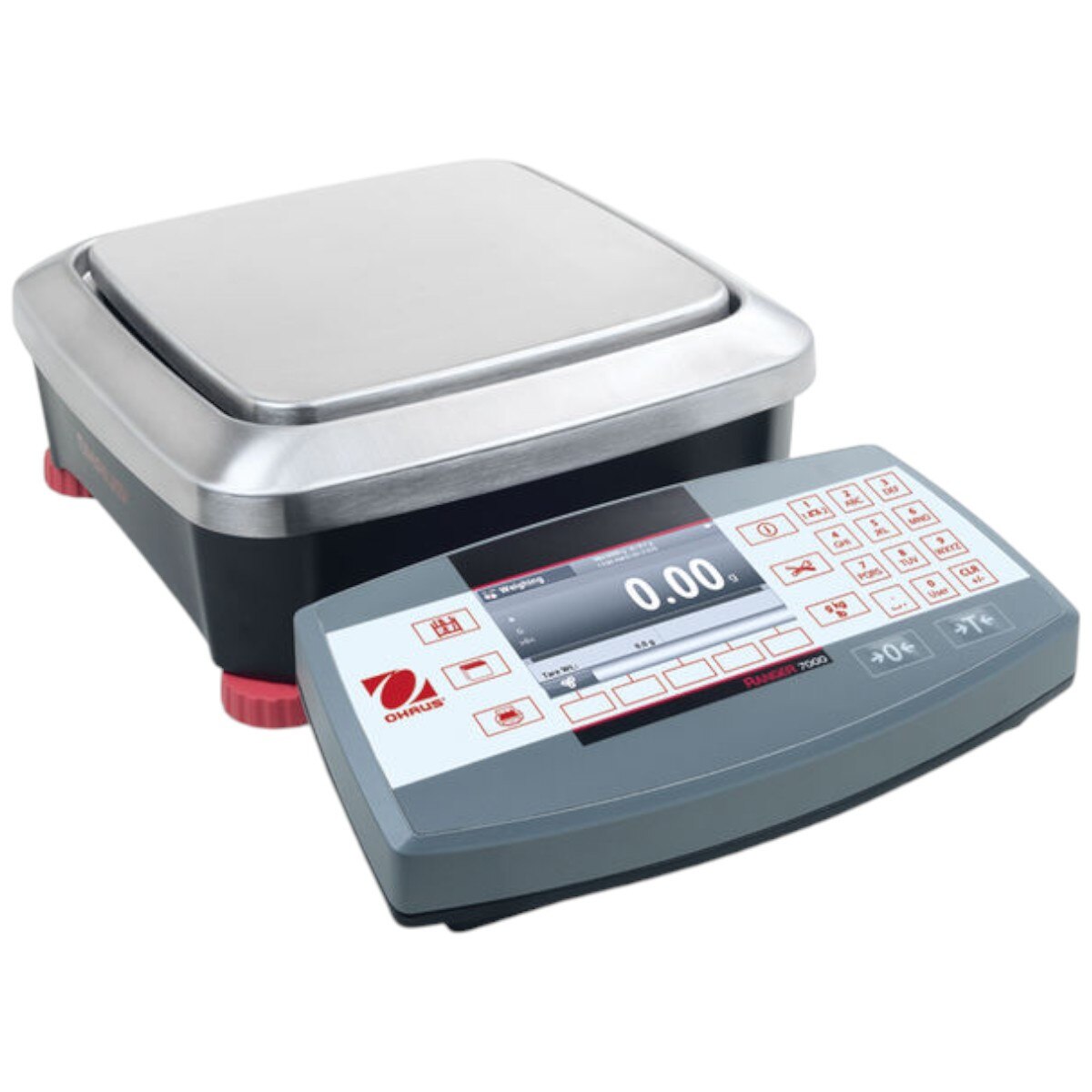

Ohaus Ranger 7000 Bench Scale, 15 lb / 6 kg Capacity (R71MHD6)
Images are for representation only. Actual product may differ in size, color or options.
Ohaus Ranger 7000 Bench Scale, 15 lb / 6 kg Capacity (R71MHD6)
Compact, high-resolution industrial bench scale engineered for precision weighing in demanding environments. The Ranger 7000 R71MHD6 delivers rapid results, advanced connectivity, and versatile application modes for lab, manufacturing, and QC workflows.
Specifications
- Model Number: R71MHD6
- Item Number: 30088841
- Maximum Capacity: 15 lb (6 kg)
- Readability: 0.00005 lb (0.02 g)
- Certified Readability: 0.0005 lb (0.2 g)
- Platform Size: 8.3 × 8.3 in (210 × 210 mm)
- Display: 4.3″ full-color TFT graphic LCD
- Dimensions: 16.5 × 4.5 × 11 in (420 × 114 × 280 mm)
- Power: AC adapter (included); optional rechargeable battery
- Protection Rating: IP54
- Legal for Trade: NTEP Certified; Measurement Canada Approved
- Units of Measurement: Gram (g), Kilogram (kg), Pound (lb), Ounce (oz), Pound:Ounce (lb:oz), Custom
- Working Environment: 50°F – 85°F (10°C – 30°C), 80% RH, non-condensing
Features
- InCal™ semi-automatic internal calibration
- Die-cast modular housing with stainless steel platform
- Checkweighing lights with audible alerts
- Integral weigh-below hook and level indicator
- Selectable operating languages and environmental settings
- USB and RS232 ports included; optional Ethernet and second RS232
- GLP/GMP data output with real-time clock
- Menu lock switch and overload/underload indicators
Applications
- Weighing and parts counting with auto optimization
- Percent weighing and advanced checkweighing
- Dynamic/animal weighing and display hold
- Filling, formulation, differential weighing
- Density determination and sieve analysis
| Product Type: | Bench Scale |
| Brand: | Ohaus |
| Product Line: | Ranger 7000 |
| Class: | Compact |
| Capacity: | 15 lb / 6 kg |
| Readability: | 0.00005 lb (0.02 g) |
| Repeatability (S.D.): | ±2d |
| Linearity (±): | ±2d |
| Platform Dimensions: | 8.3 × 8.3 in (210 × 210 mm) |
| Power Supply: | Main power cord / Internal rechargeable battery |
| Display: | LCD |
| Interface: | Bi-directional RS-232 and USB |
| Calibration: | InCal Semi Automatic Internal Mass |
| Units of Measure: | Gram (g), Kilogram (kg), Pound (lb), Ounce (oz), Pound:Ounce (lb:oz), Custom |
| IP Rating: | IP54 |
| Base: | Steel |
| Net Weight: | 16 lb (7.2 kg) |
| Overall Dimensions: | 16.5 × 4.5 × 11 in (420 × 114 × 280 mm) |
| Includes: | ABS Indicator, In-use cover |
| Working Environment: | 50°F – 85°F (10°C – 30°C), 80% RH, non-condensing |
| Applications: | Animal Weighing Density Determination Display Hold Dynamic Weighing Filling Formulation Sieve Analysis Weighing |
