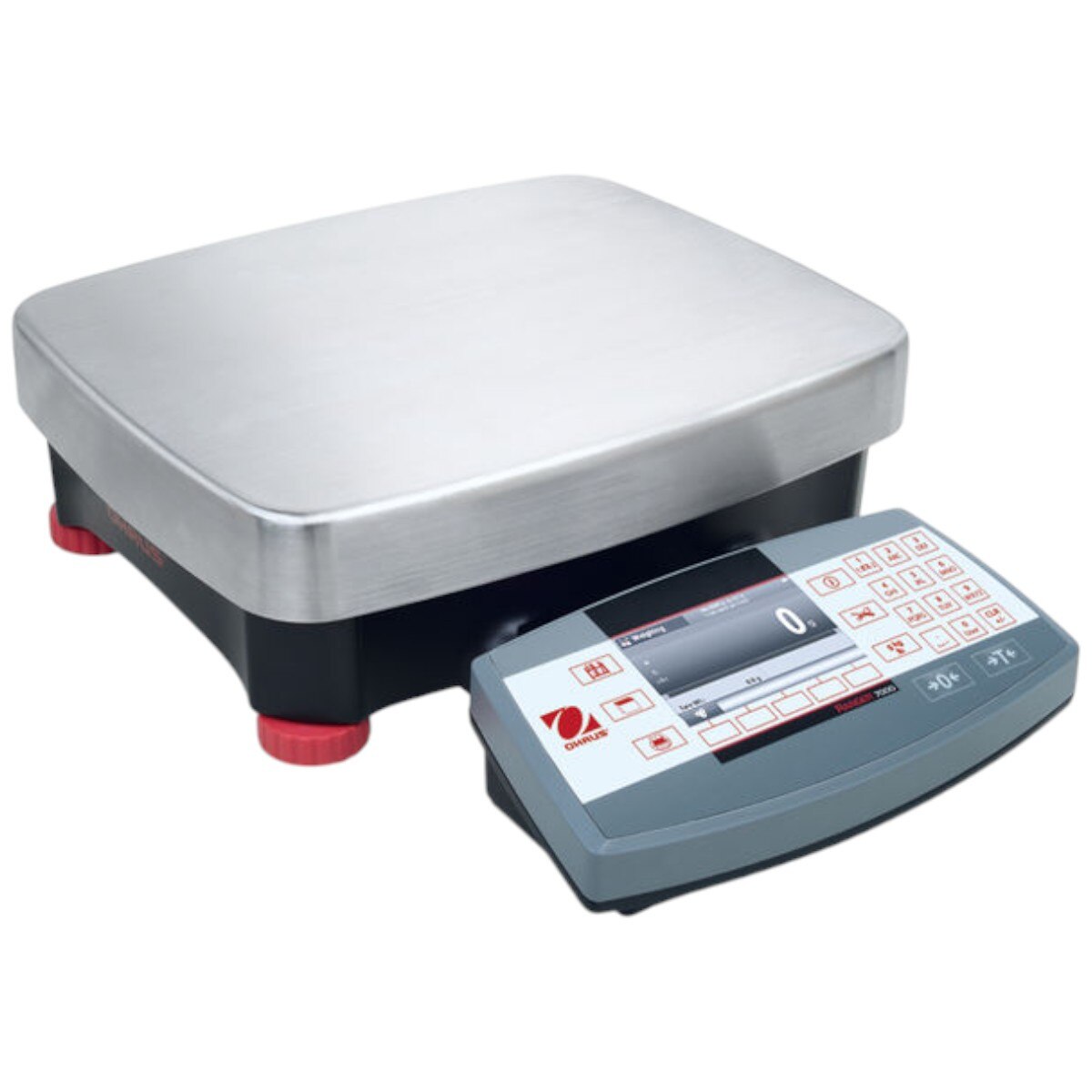

Ohaus Ranger 7000 Bench Scale, 70 lb / 35 kg Capacity (R71MHD35)
Images are for representation only. Actual product may differ in size, color or options.
Ohaus Ranger 7000 Bench Scale, 70 lb / 35 kg Capacity (R71MHD35)
High-resolution industrial bench scale designed for precision weighing in demanding environments. The Ranger 7000 R71MHD35 offers advanced functionality, fast stabilization, and robust connectivity for lab, manufacturing, and quality control applications.
Specifications
- Model Number: R71MHD35
- Item Number: 30088843
- Maximum Capacity: 70 lb (35 kg)
- Readability: 0.0002 lb (0.1 g)
- Certified Readability: 0.002 lb (1 g)
- Platform Size: 12.2 × 14.8 in (311 × 377 mm)
- Display: 4.3″ full-color TFT graphic LCD
- Dimensions: 18.4 × 5 × 14.9 in (467 × 128 × 377 mm)
- Power: AC adapter (included); optional rechargeable battery
- Protection Rating: IP54
- Legal for Trade: NTEP Certified; Measurement Canada Approved
- Units of Measurement: Gram (g), Kilogram (kg), Pound (lb), Ounce (oz), Pound:Ounce (lb:oz), Custom
- Working Environment: 50°F – 85°F (10°C – 30°C), 80% RH, non-condensing
Features
- InCal™ semi-automatic internal calibration
- Die-cast modular housing with stainless steel platform
- Checkweighing lights with audible alerts
- Integral weigh-below hook and level indicator
- Selectable operating languages and environmental settings
- USB and RS232 ports included; optional Ethernet and second RS232
- GLP/GMP data output with real-time clock
- Menu lock switch and overload/underload indicators
Applications
- Weighing and parts counting with auto optimization
- Percent weighing and advanced checkweighing
- Dynamic/animal weighing and display hold
- Filling, formulation, differential weighing
- Density determination and sieve analysis
| Product Type: | Bench Scale |
| Brand: | Ohaus |
| Product Line: | Ranger 7000 |
| Class: | Compact |
| Capacity: | 70 lb/35 kg |
| Readability: | 0.0002 lb / 0.1 g |
| Repeatability (S.D.): | ±2d |
| Linearity (±): | ±2d |
| Platform Dimensions: | 12.2 × 14.8 in (311 × 377 mm) |
| Power Supply: | Main power cord / Internal rechargeable battery |
| Display: | LCD |
| Interface: | Bi-directional RS-232 and USB |
| Calibration: | InCal Semi Automatic Internal Mass |
| Units of Measure: | Gram (g), Kilogram (kg), Pound (lb), Ounce (oz), Pound:Ounce (lb:oz), Custom |
| IP Rating: | IP54 |
| Base: | Steel |
| Net Weight: | 24 lb (10.9 kg) |
| Overall Dimensions: | 18.4 × 5 × 14.9 in (467 × 128 × 377 mm) |
| Includes: | ABS Indicator, In-use cover |
| Working Environment: | 50°F – 85°F (10°C – 30°C), 80% RH, non-condensing |
| Certifications: | Measurement Canada NTEP Approved |
| Applications: | Animal Weighing Checkweighing Density Determination Display Hold Dynamic Weighing Filling Formulation Parts Counting Percent Weighing Sieve Analysis Weighing |
