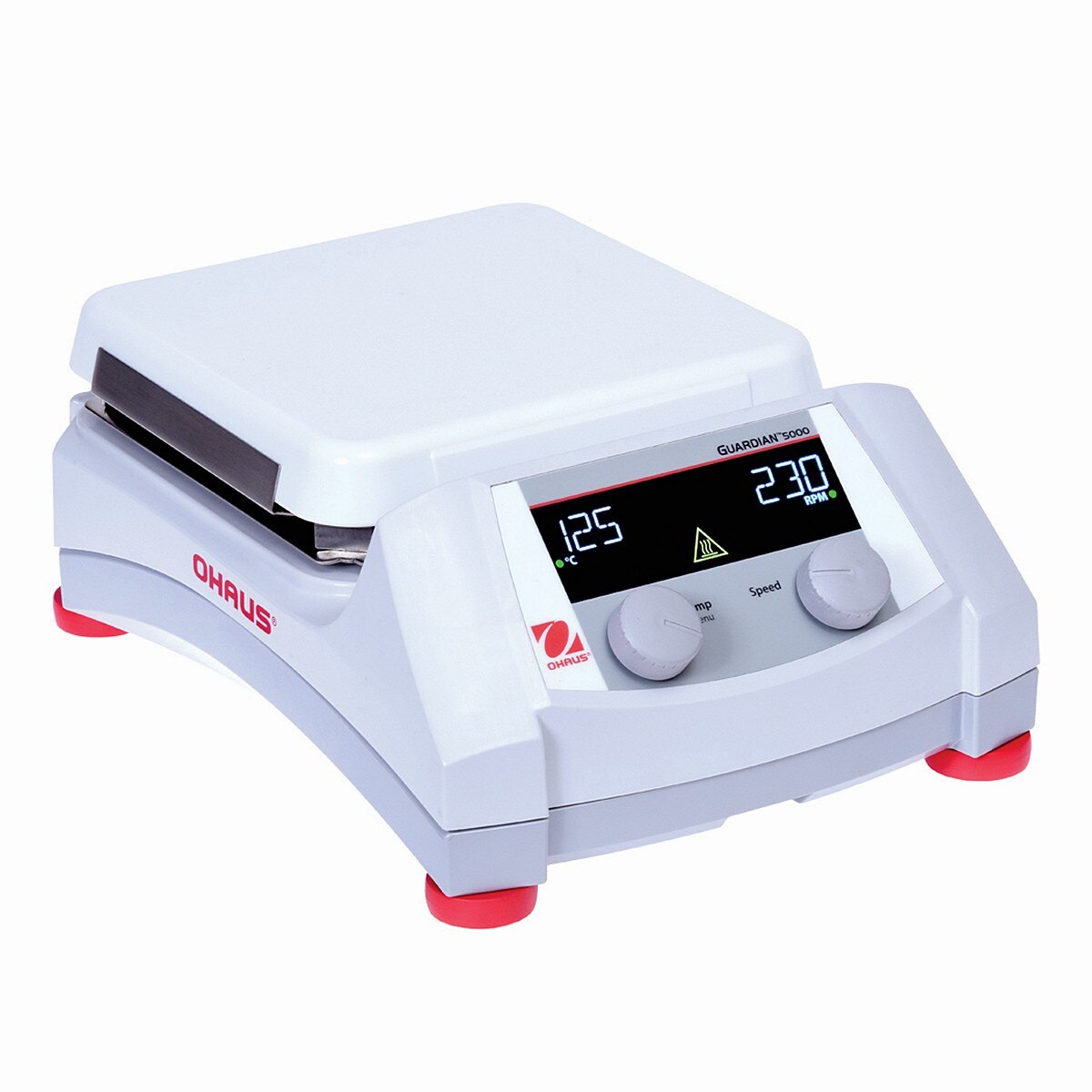

Ohaus e-G51HS07C 15 L Guardian 5000 Digital Hotplate and Stirrer, 120V (each)
Images are for representation only. Actual product may differ in size, color or options.
Ohaus e-G51HS07C 15 L Guardian 5000 Digital Hotplate and Stirrer, 120V (each)

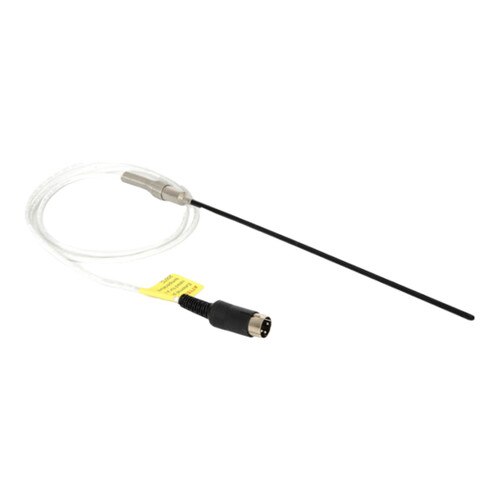

OHAUS Guardian 5000™ Hotplates Stirrers are designed for safety and simplicity in all research, academic and industrial applications. The design ensures proper mixing and temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple setpoints. Available in five models with three plate sizes for your everyday heating and stirring applications.
Applications
Boiling Water, Water/Oil Bath Preparation, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples.
Display
Backlit LCD Display for temperature and speed, green indicator lights when unit is heating and stirring, prominent hot top indicator light, probe in use icon, Single Point Calibration icon.
Operation

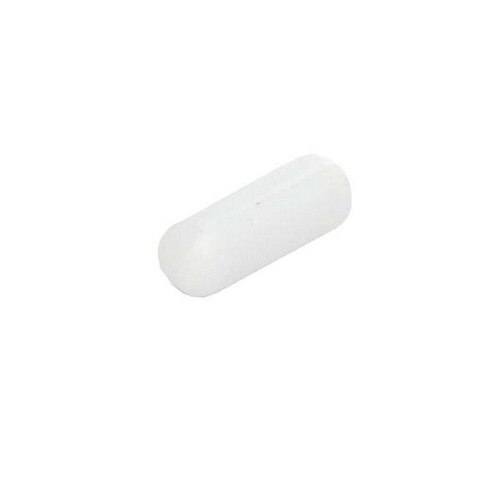

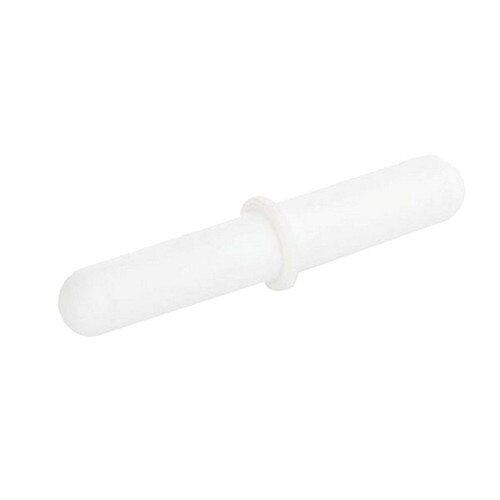

Stirring from 60 to 1600 rpm, a Temperature range of ambient +5°C to 500°C (ceramic top) or 380°C (aluminum top), power cord (included), stirring models include a 1.5” (3.8 cm) PTFE coated stir bar.
Communication
N/A
Construction

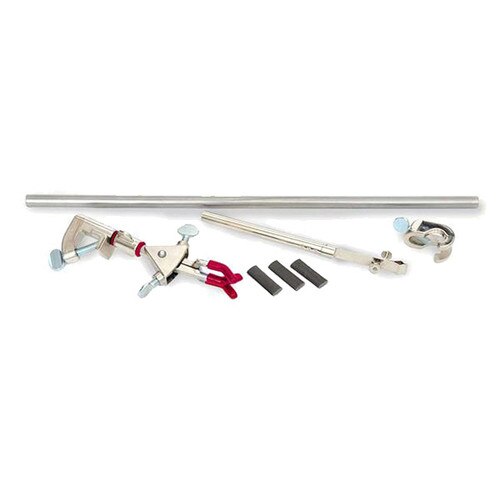

Probe connection, SmartHousing™ stays cool to the touch and is chemical resistant, IP21 Ingress Protection, polycarbonate front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy to clean ceramic or aluminum tops.
Design Features
Hot top indicator light, audible alarm, SafetyHeat™ protection shuts off the heater in the event of a malfunction, temperature calibration feature for 3 probe and 3 plate setpoints.
OHAUS Guardian 5000™ Hotplates Stirrers are designed for safety and simplicity in all research, academic and industrial applications. The design ensures proper mixing and temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple setpoints. Available in five models with three plate sizes for your everyday heating and stirring applications.
Applications
Boiling Water, Water/Oil Bath Preparation, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples.
Display
Backlit LCD Display for temperature and speed, green indicator lights when unit is heating and stirring, prominent hot top indicator light, probe in use icon, Single Point Calibration icon.
Operation
Stirring from 60 to 1600 rpm, a Temperature range of ambient +5°C to 500°C (ceramic top) or 380°C (aluminum top), power cord (included), stirring models include a 1.5” (3.8 cm) PTFE coated stir bar.
Communication
N/A
Construction
Probe connection, SmartHousing™ stays cool to the touch and is chemical resistant, IP21 Ingress Protection, polycarbonate front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy to clean ceramic or aluminum tops.
Design Features
Hot top indicator light, audible alarm, SafetyHeat™ protection shuts off the heater in the event of a malfunction, temperature calibration feature for 3 probe and 3 plate setpoints.
| Product Type: | Hotplate Stirrer |
| Brand: | Ohaus |
| Product Line: | Guardian 5000 |
| Class: | Ceramic Top |
| Capacity: | 15 L |
| Temperature Range: | ambient +5°C to 500°C |
| Speed: | 60 rpm – 1,600 rpm |
| Power Supply: | 120 VAC, 50/60Hz |
| Digital or Analog: | Digital |
| Display: | LCD, backlit |
| Plate Size: | 7 x 7 inches (178 x 178 mm) |
| Plate Material: | Ceramic |
| Net Weight: | 5.7 lb (2.6 kg) |
| Overall Dimensions: | 12.2 x 8.8 4.8 in (309 x 233 x 122 mm) LxWxH |
| Working Environment: | 41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80%RH, non-condensing) |
| Certifications: | TUV Certification |
| Applications: | Boiling Water Concentrating Samples Preparing Media Sample and Solution Preparation Water/Oil Bath Preparation |
