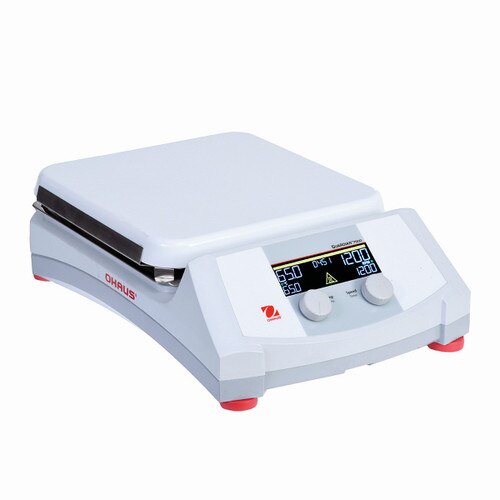

Ohaus e-G71HS10C 18 L Guardian 7000 Digital Hotplate and Stirrer, 120V (each)
Images are for representation only. Actual product may differ in size, color or options.
Ohaus e-G71HS10C 18 L Guardian 7000 Digital Hotplate and Stirrer, 120V (each)
OHAUS Guardian 7000 Hotplate Stirrers are designed with outstanding safety features and superior heating and mixing performance. The SmartHousing™ is chemical resistant with an innovative, easy-to-clean design that channels spills away from internal components and the angled glass control panel. The bright LCD display includes intuitive icons, temperature, speed, and time settings - all designed to monitor performance from across the lab.
Applications include
Temperature Sensitive Chemistry and Biology, Heat Fixation, Solution pH Optimization, Solution Sterilization, Endothermic Reactions, Denaturing of Organic Material, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Boiling.
Display
Backlit LCD Display for temperature, speed and time, green indicator lights when unit is heating and stirring, two prominent hot top indicator lights, icons for SmartRate™, SmartHeat™, SmartPresence™, SmartLink™, probe in use, Single Point Calibration.
Operation
Timer, Stirring from 60 to 1600 rpm, temperature range of ambient +5°C to 500°C (ceramic top) or 380°C (aluminum top), power cord (included), 8” (20.3 cm) stainless steel RTD temperature probe, 1.5” (3.8 cm) PTFE coated stir bar, in-use cover.
Communication
USB port provides flexibility for programming of repeat applications and enhancing safety with SmartLink™ technology; the long-range user detection function operated with the OHAUS Bluetooth dongle accessory (sold separately).
Construction
Probe connection, SmartHousing™ stays cool to the touch and is chemical-resistant, IP21 Ingress Protection, hardened glass front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy-to-clean ceramic or aluminum tops.
Design Features
Hot top indicator lights, audible alarm, SmartHeat™ temperature limiting function, SafetyHeat™ shuts off the heater in the event of a malfunction, temperature calibration feature for 5 probe & 5 plate setpoints, temperature priority function, SmartRate™ functions.
OHAUS Guardian 7000 Hotplate Stirrers are designed with outstanding safety features and superior heating and mixing performance. The SmartHousing™ is chemical resistant with an innovative, easy-to-clean design that channels spills away from internal components and the angled glass control panel. The bright LCD display includes intuitive icons, temperature, speed, and time settings - all designed to monitor performance from across the lab.
Applications include
Temperature Sensitive Chemistry and Biology, Heat Fixation, Solution pH Optimization, Solution Sterilization, Endothermic Reactions, Denaturing of Organic Material, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Boiling.
Display
Backlit LCD Display for temperature, speed and time, green indicator lights when unit is heating and stirring, two prominent hot top indicator lights, icons for SmartRate™, SmartHeat™, SmartPresence™, SmartLink™, probe in use, Single Point Calibration.
Operation
Timer, Stirring from 60 to 1600 rpm, temperature range of ambient +5°C to 500°C (ceramic top) or 380°C (aluminum top), power cord (included), 8” (20.3 cm) stainless steel RTD temperature probe, 1.5” (3.8 cm) PTFE coated stir bar, in-use cover.
Communication
USB port provides flexibility for programming of repeat applications and enhancing safety with SmartLink™ technology; the long-range user detection function operated with the OHAUS Bluetooth dongle accessory (sold separately).
Construction
Probe connection, SmartHousing™ stays cool to the touch and is chemical-resistant, IP21 Ingress Protection, hardened glass front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy-to-clean ceramic or aluminum tops.
Design Features
Hot top indicator lights, audible alarm, SmartHeat™ temperature limiting function, SafetyHeat™ shuts off the heater in the event of a malfunction, temperature calibration feature for 5 probe & 5 plate setpoints, temperature priority function, SmartRate™ functions.
| Product Type: | Hotplate Stirrer |
| Brand: | Ohaus |
| Product Line: | Guardian 7000 |
| Class: | Ceramic Top |
| Capacity: | 18 L |
| Temperature Range: | ambient +5°C to 500°C |
| Speed: | 60 rpm – 1,600 rpm |
| Power Supply: | 120 VAC, 50/60Hz |
| Timing Capacity: | 1 minute – 99 hours, 59 minutes |
| Digital or Analog: | Digital |
| Display: | LCD, backlit |
| Plate Size: | 10 x 10 inches (254 x 254 mm) |
| Plate Material: | Ceramic |
| Net Weight: | 11.5 lb (5.2 kg) |
| Overall Dimensions: | 16.3 x 11.25 x 4.8 in (415 x 286 x 122 mm) LxWxH |
| Working Environment: | 41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80%RH, non-condensing) |
| Certifications: | TUV Certification |
| Applications: | Boiling Water Denaturing of Organic Material Dissolving Buffers and Reagents Endothermic Reactions Heat Fixation Preparing Media Sample and Solution Preparation Solution pH Optimization Solution Sterilization Temperature Sensitive Chemistry and Biology Water/Oil Bath Preparation |
