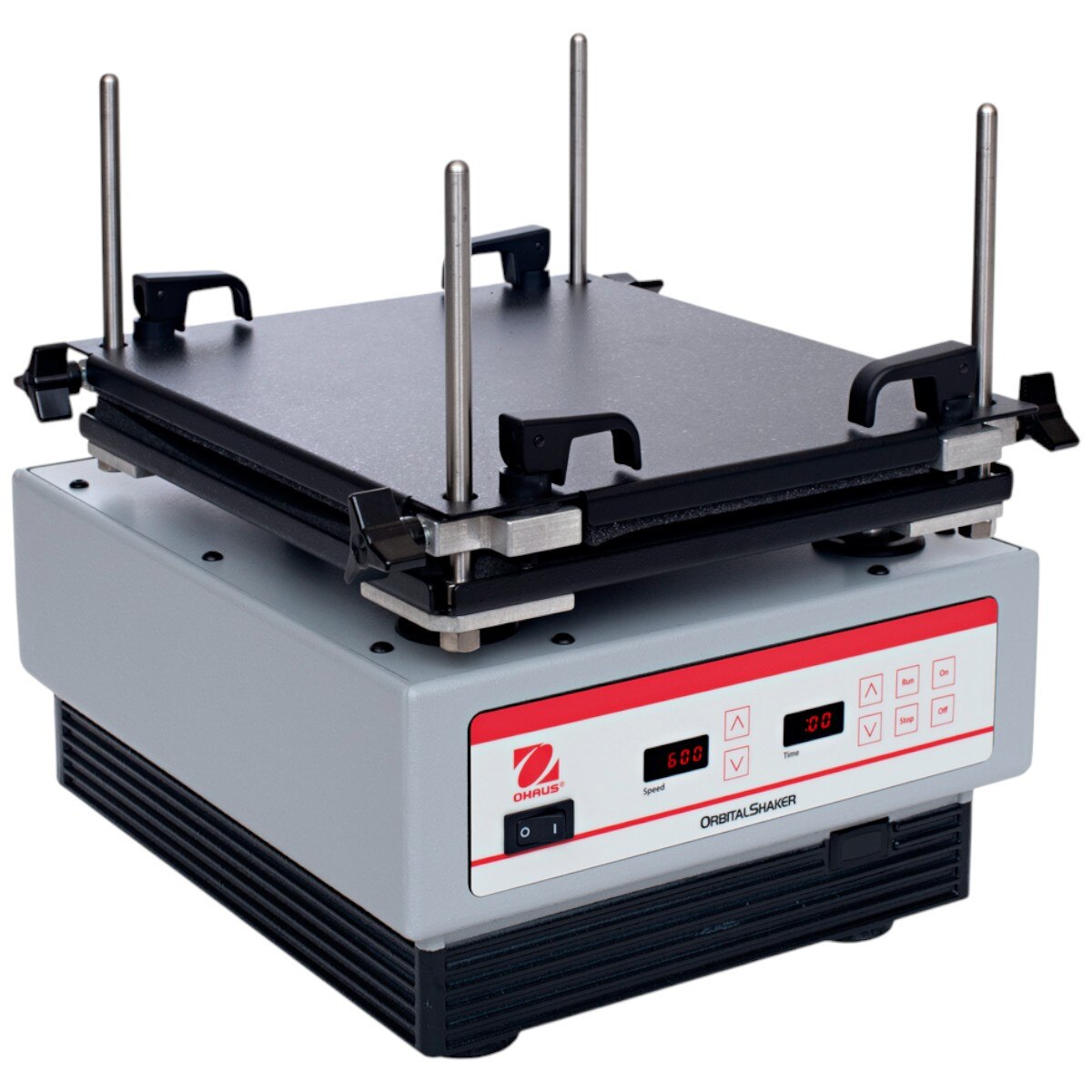

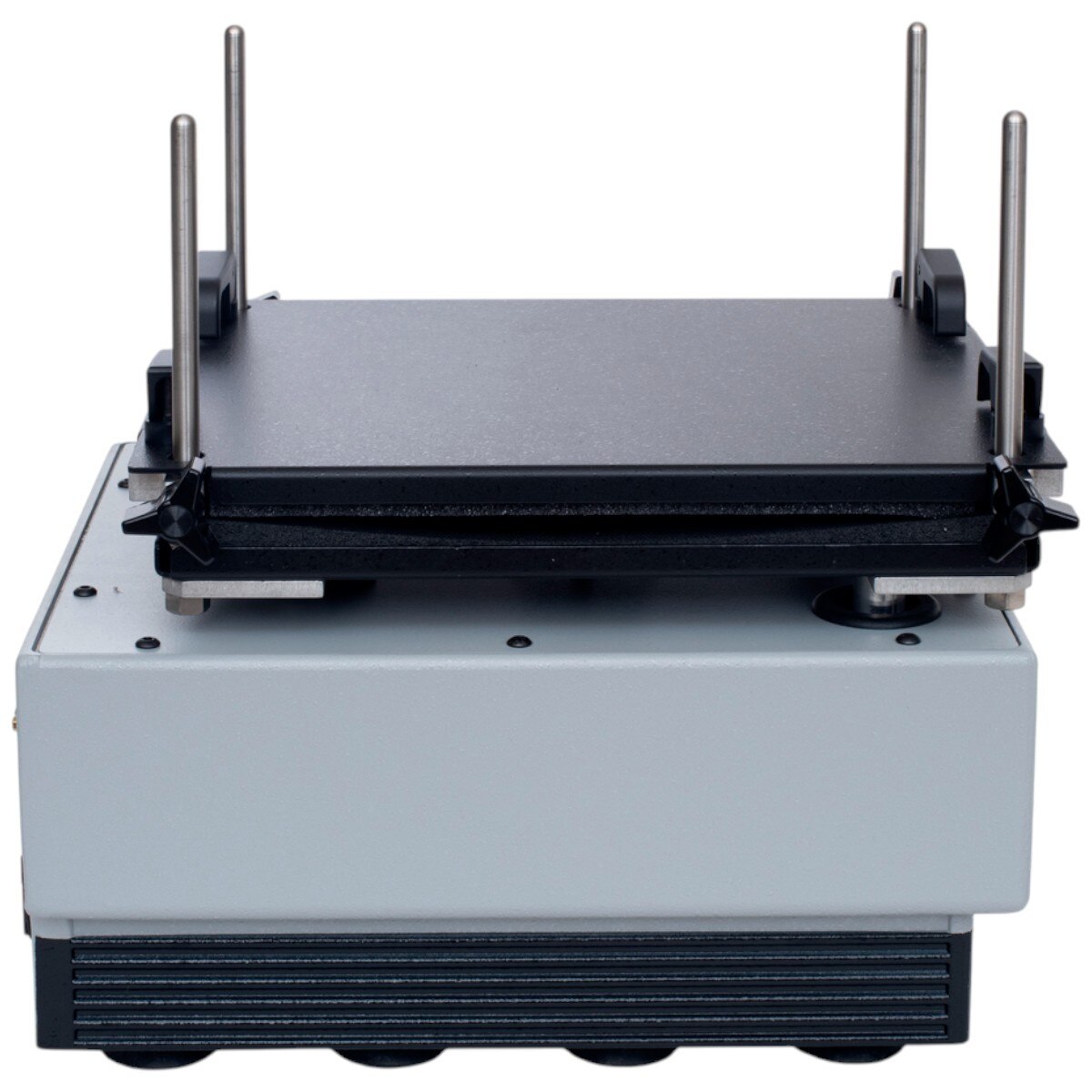

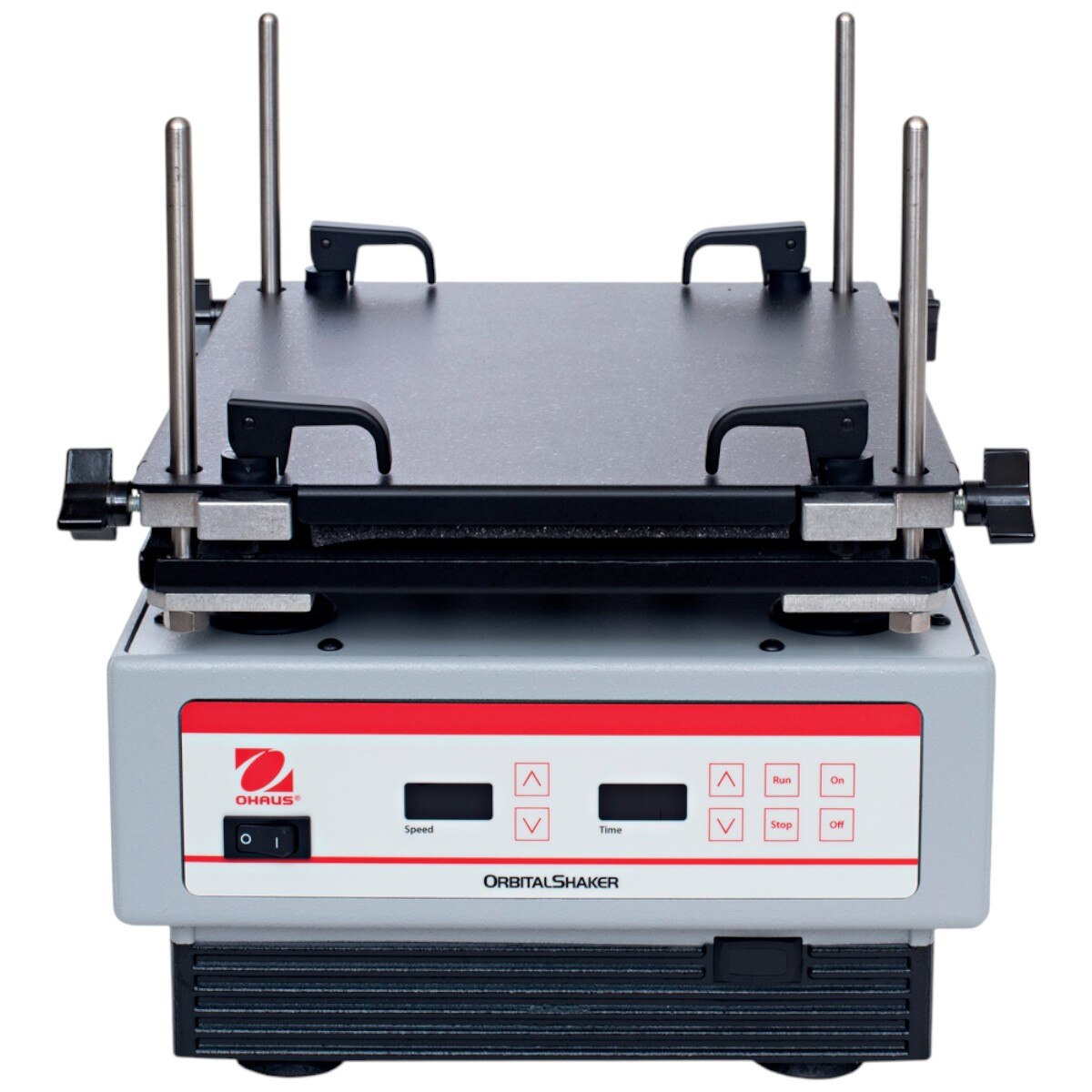

OHAUS SHHSMPDG High Speed Microplate Shaker – Orbital 3.6 mm, Digital, 120V

OHAUS SHHSMPDG High Speed Microplate Shaker – Orbital 3.6 mm, Digital, 120V

High-speed orbital shaker designed for microplates, deep well plates, and small-diameter tubes up to 5 in (12.7 cm) tall. Provides variable speed control with independent LED displays for speed and time, a long-range programmable timer, and a pulse feature for aggressive mixing. Durable die-cast aluminum construction and aluminum tray deliver stability at high RPM.

Specifications

• Product Number: 30573784
• Model: SHHSMPDG-US
• Motion: Orbital, 3.6 mm
• Capacity: Up to 48 microplates
• Speed Range: 600–2,500 rpm
• Tray Size (L × W): 12.25 × 11 in (311 × 279 mm)
• Timer: 1 second to 160 hours
• Control: Digital

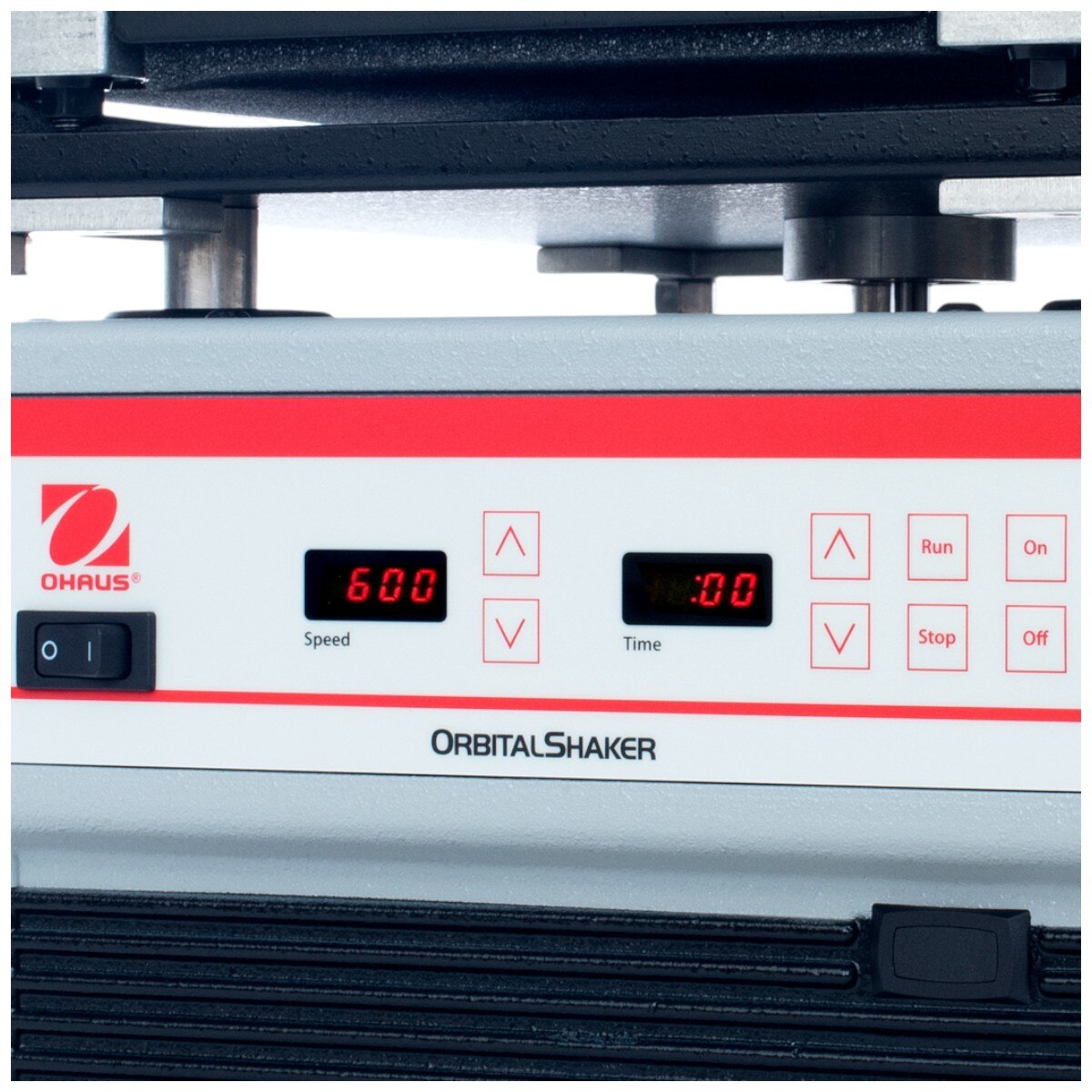

• Display: Independent LED displays for speed and time

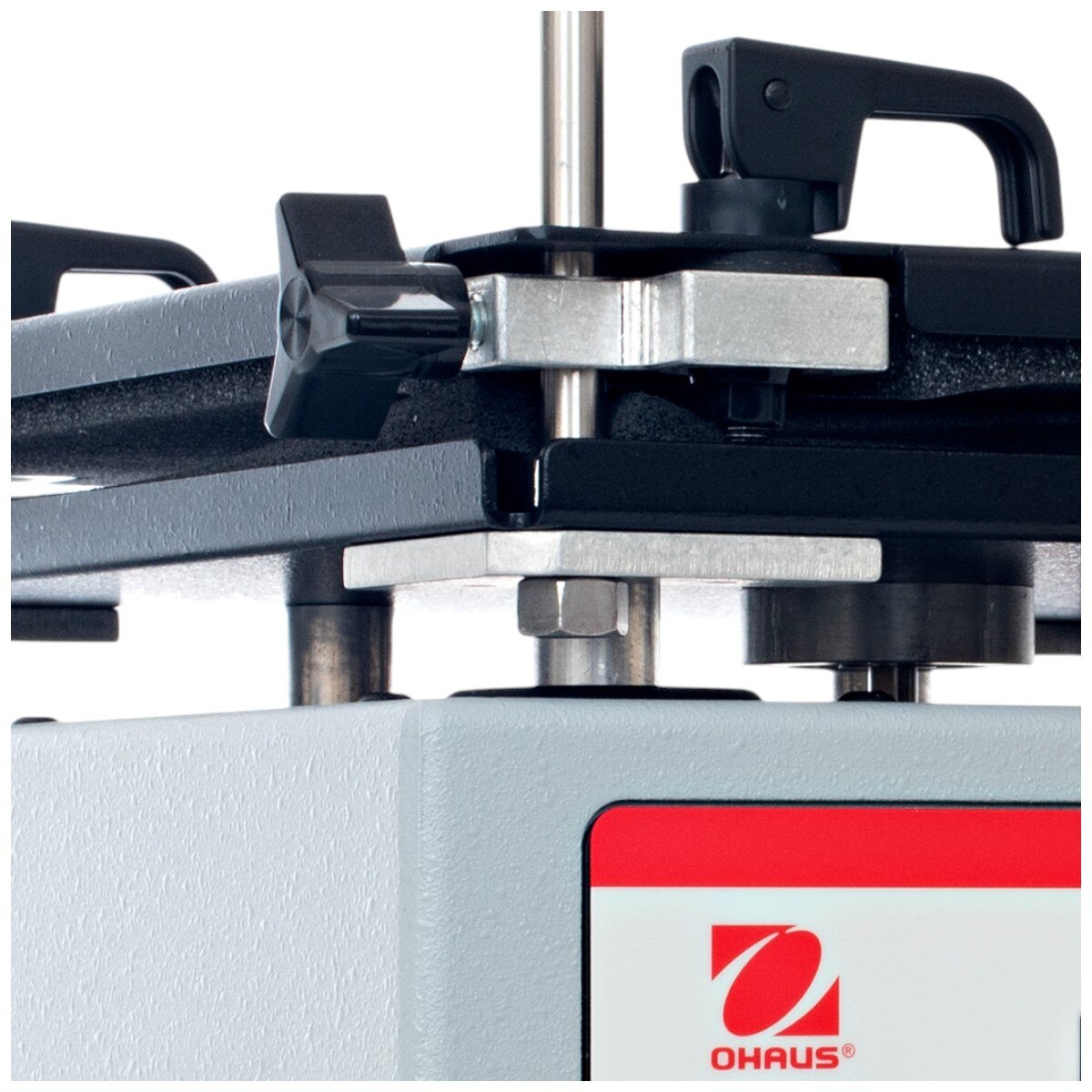

• Tray Construction: Aluminum
• Construction: Die-cast aluminum housing
• Power Consumption: 120 W
• Power: 120 V, 1 A, 50/60 Hz
• Communication: RS-232
• Dimensions (L × H × W): 15.5 × 12.8 × 12 in (394 × 325 × 305 mm)
• Working Environment: 39–104°F (4–40°C), 20–80% RH, non-condensing
• Net Weight: 48.1 lb (21.8 kg)
• Safety Certification: cULus

Features

• High-speed shaking for up to 48 microplates with 3.6 mm orbital motion
• Programmable pulse function with 1–59 second ON/OFF intervals
• Timer supports countdown mode with auto-off or continuous accumulated time
• Independent LED readouts for precise speed and time monitoring
• Stable, durable die-cast aluminum chassis and aluminum tray
• RS-232 interface for external control and data connectivity

Applications

Optimized for cell lysing, emulsifications, and microplate mixing in research, clinical, and industrial laboratories requiring rapid, repeatable results.
