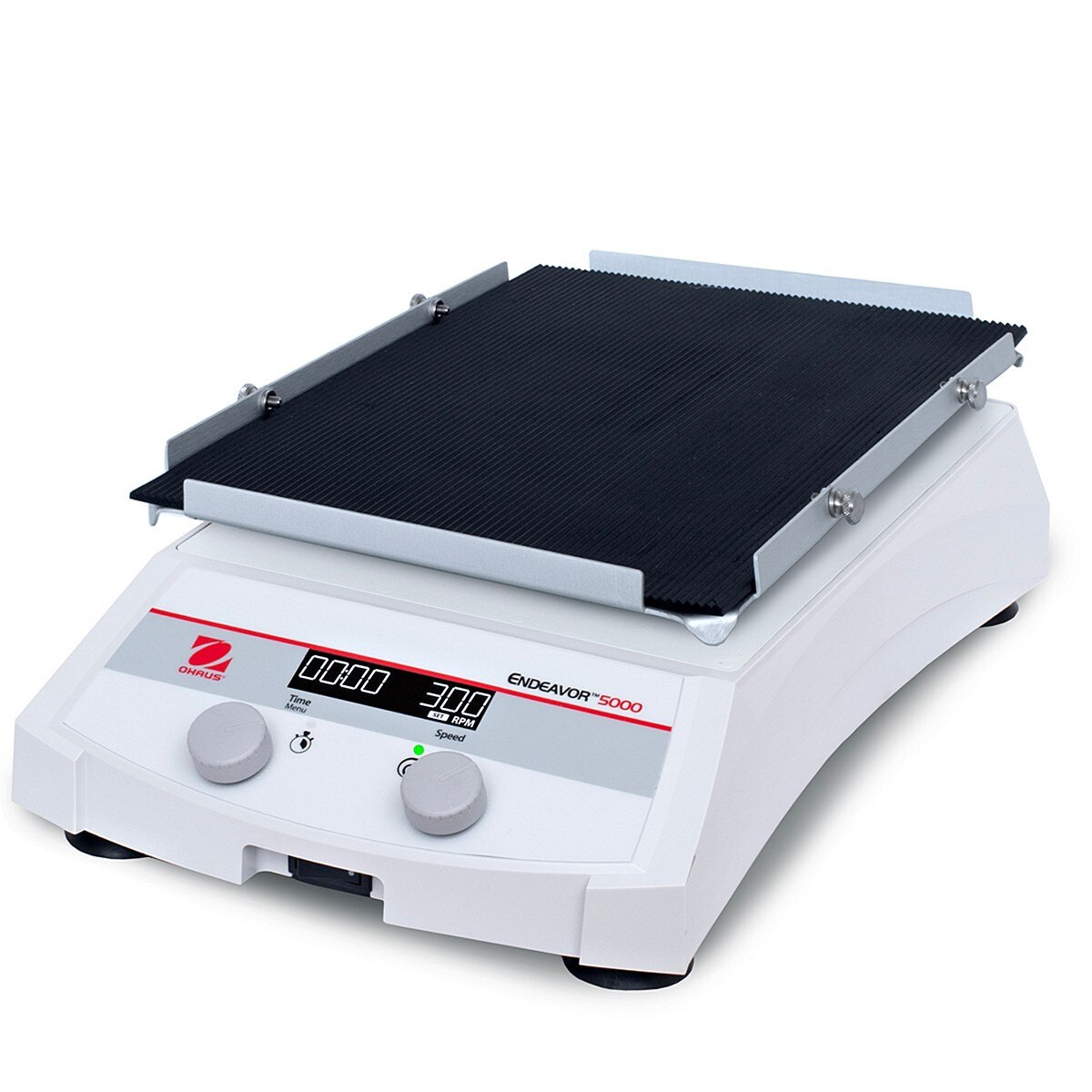

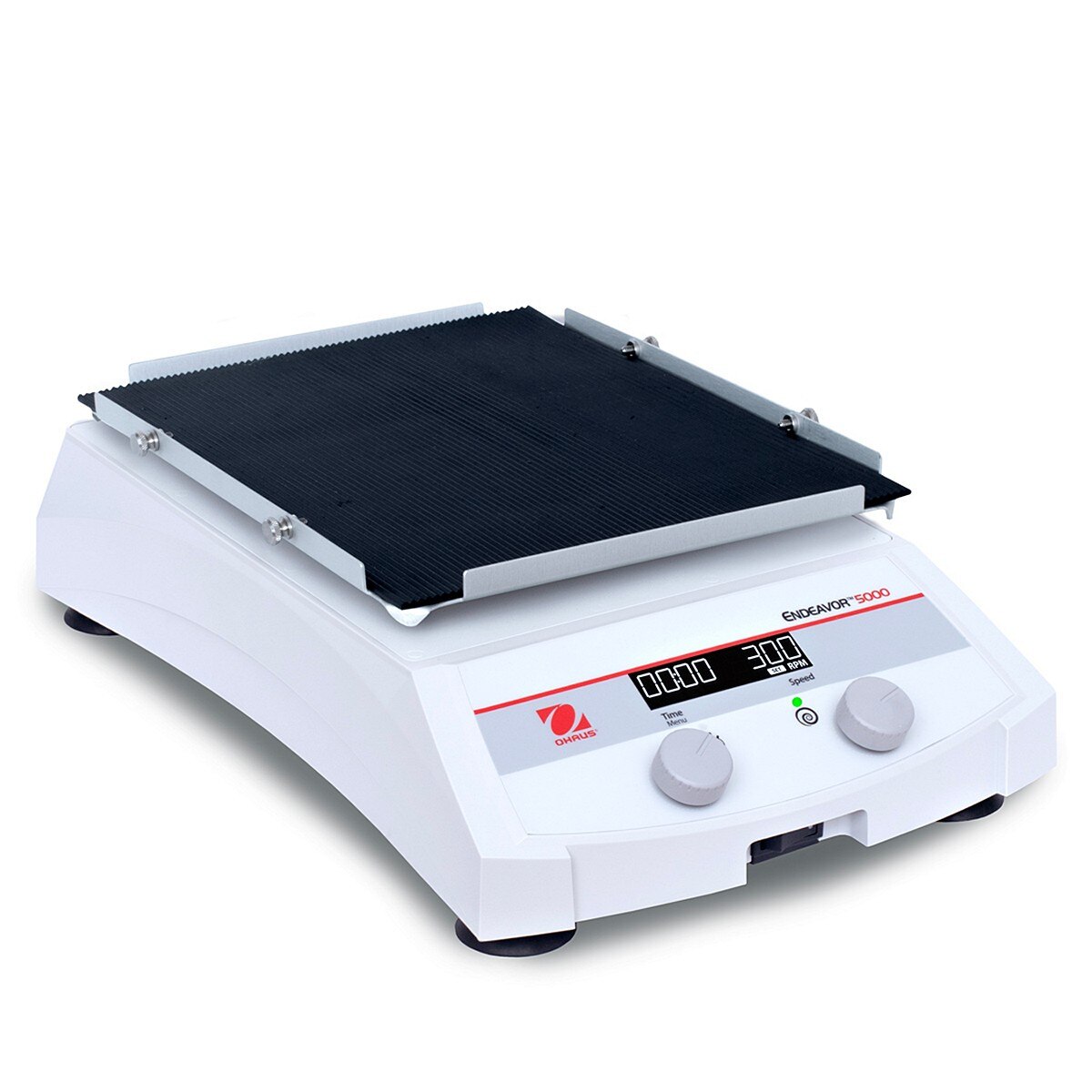

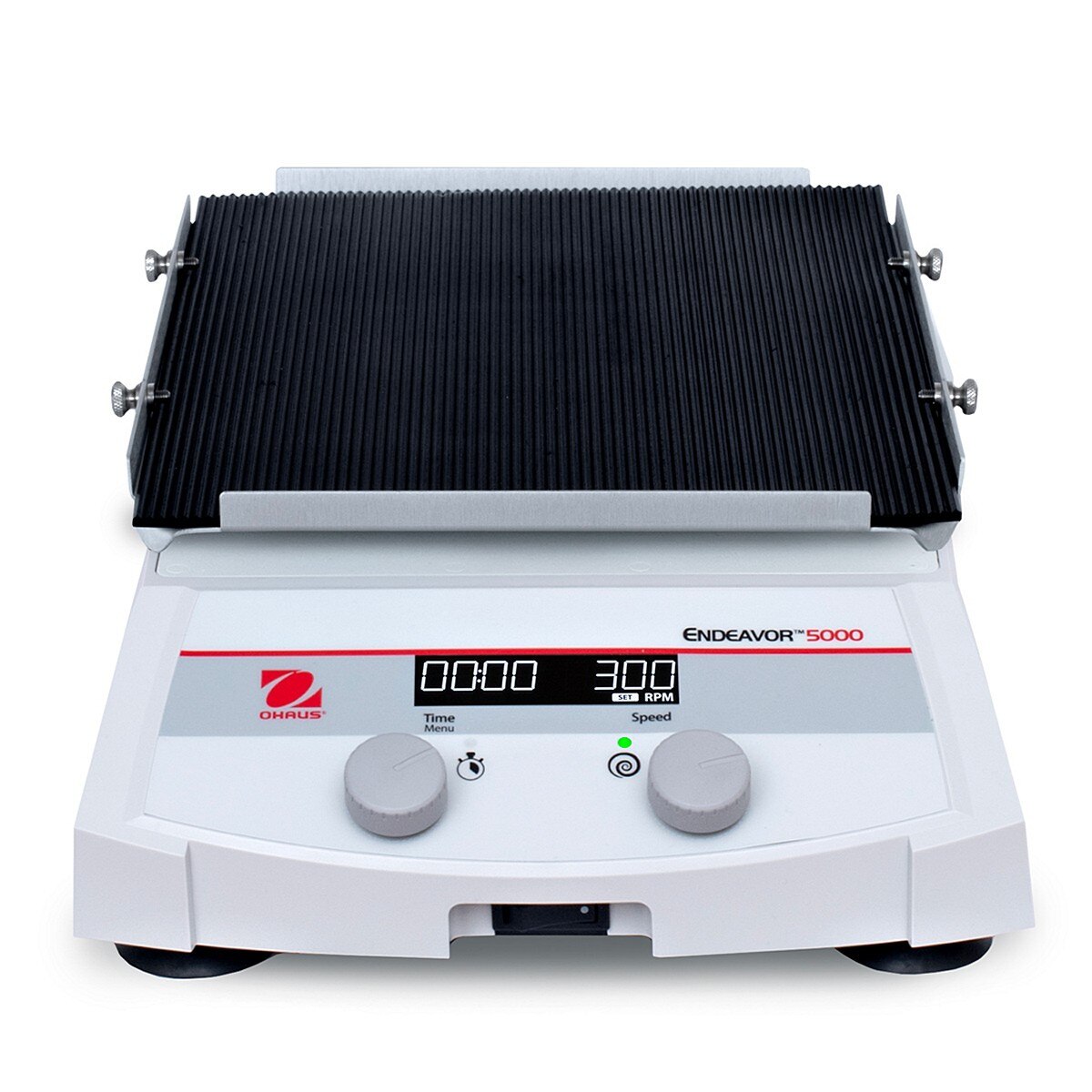

Endeavor 5000 Digital 20mm Orbital Shaker, 50 rpm – 300 rpm, 4.0 kg, up to 3 x 1 L flasks
Endeavor 5000 Digital 20mm Orbital Shaker, 50 rpm – 300 rpm, 4.0 kg, up to 3 x 1 L flasks
Endeavor™ Light Duty Shakers are available in 3 models: 3 mm orbit, 20 mm orbit, or dedicated microplate model. All models can be used in incubators and cold rooms. Stable, accurate, long-term shaking is ensured with the triple eccentric drive and maintenance-free brushless DC motor. Integrated overload and unbalanced detection to protect samples.
- Budget-Friendly - no need to buy a separate tray. Ready to attach a wide variety of accessories to customize for low to mid-volume applications.
- Programmable - save time and guarantee reproducible results. Simple on-board menu to set, store, and recall multi-step programs.

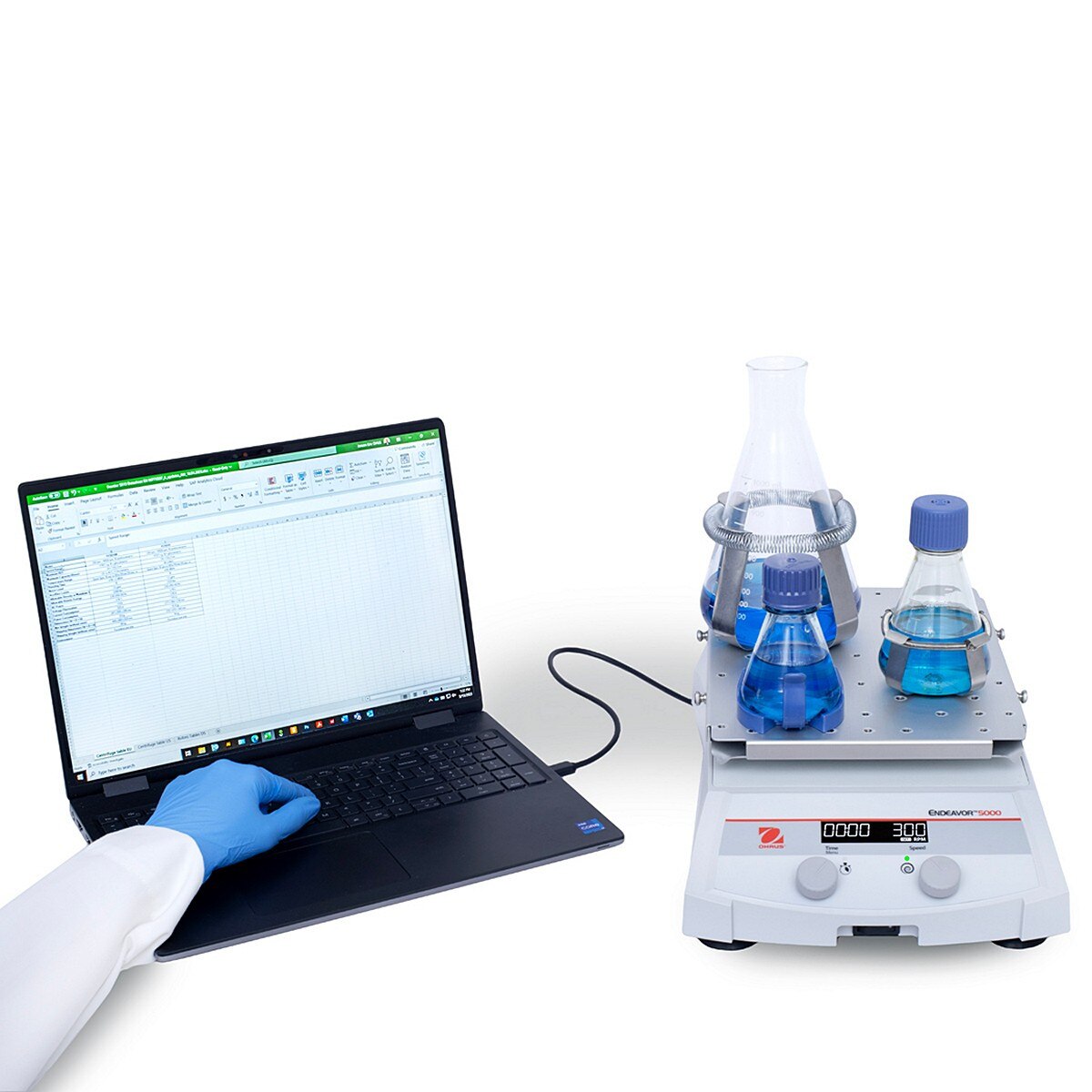

- Data logging and control - remote function permits PC control and data transfer.
Applications
Microbiology, Molecular Biology, ELISA Assays, Cell Cultures, Immunoassays, Protein Studies, Bacterial and Yeast Cultures, Staining/Destaining, Blotting Techniques, DNA Studies, Solubility Studies, Environmental and Food Sciences, Chemistry, General Mixing.
Display
Bright, backlit LCD display for speed and time, timer will count up elapsed time or when set, timer will count down and shut off shaking when time reaches zero, green indicator light illuminates when unit is shaking, easy to navigate menu for advanced features.
Operation

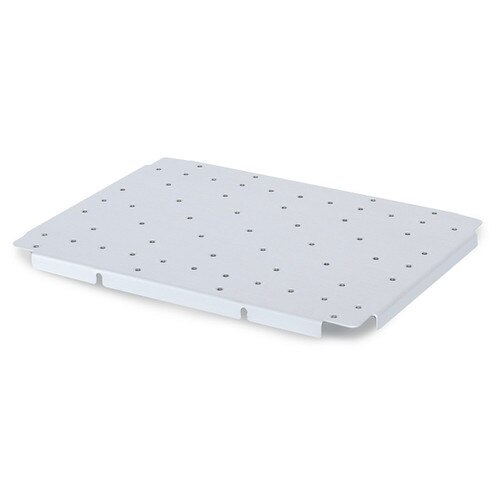

Simple knob control for timer and shaking, tray with attachment points for flask clamps, tube racks and non-slip rubber mat included, optional accessories include universal platform and over 20 flask clamps and tube racks. One model dedicated for microplates.
Communication

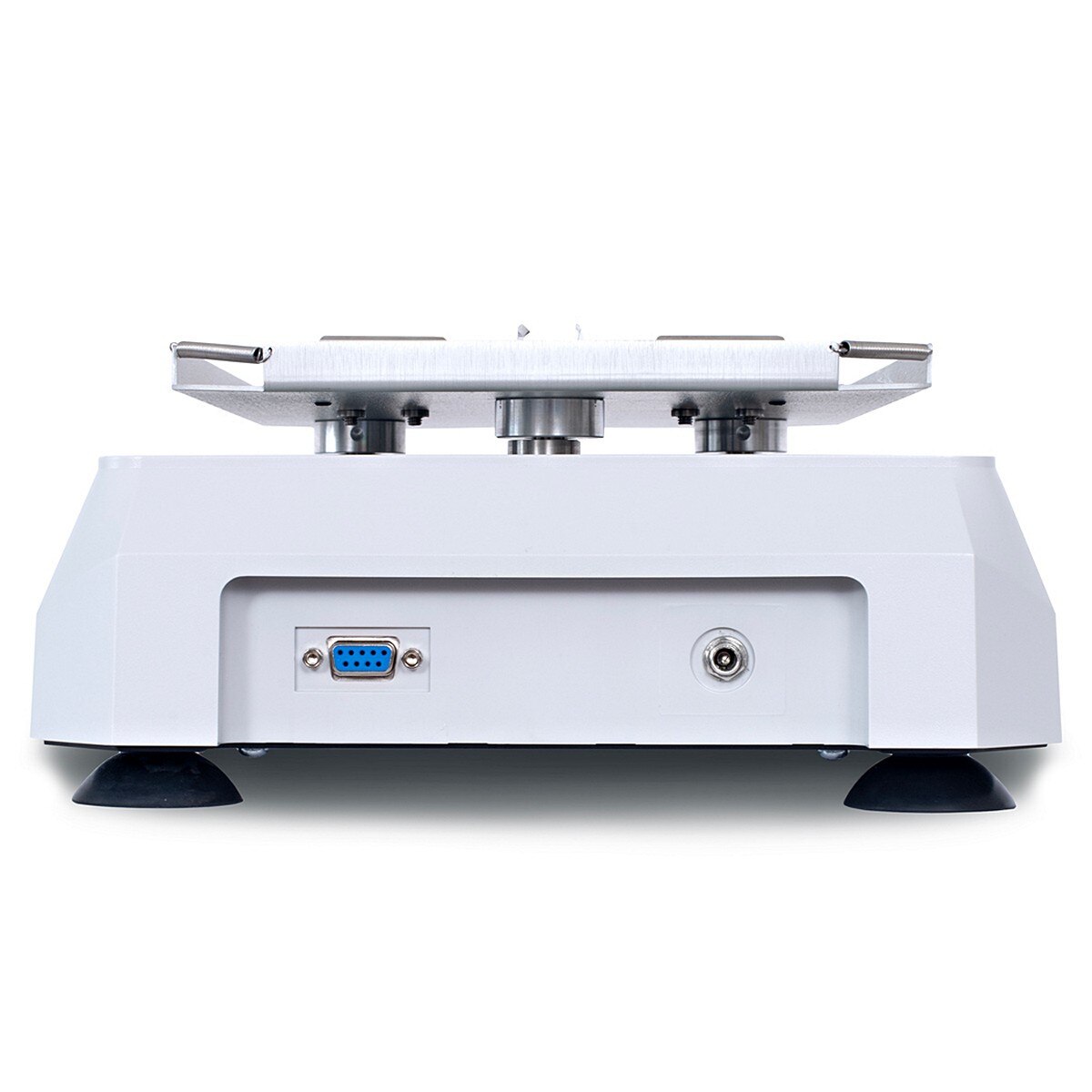

RS232 interface provides 2-way communication for data logging and unit control.
Construction
Durable chemical-resistant polymer housing, sturdy easy-to-clean aluminum standard tray with attachment points for accessories, IP21 Ingress Protection, robust triple eccentric drive for stable shaking, brushless DC motor, control knobs, on/off switch.
Design Features
Visual and audio alarm when timer counts down to zero or an error occurs, small footprint to save bench space, advanced microprocessor control slowly ramps the shaker tray up to the desired speed and avoids splashing, easy to attach optional accessory platform.
| Product Type: | Orbital Shaker |
| Brand: | Ohaus |
| Product Line: | Endeavor |
| Class: | Light Duty |
| Grade: | Digital |
| Accuracy: | ±2 rpm, Above 100 rpm ±2% of set speed |
| Speed: | 50 rpm - 300 rpm |
| Speed Increment: | 1 rpm |
| Orbit Size: | 0.8 in (20 mm) |
| Platform Dimensions: | 11.75 x 8.75 in (300 x 222 mm) |
| Motor: | Brushless DC Motor, Triple Eccentric |
| Power Supply: | AC Adapter |
| Timing Capacity: | 1 minute – 99 hours, 59 minutes |
| Digital or Analog: | Digital |
| Display: | Backlit LCD |
| Interface: | RS-232 |
| Operating Modes: | On-board programming for 8 separate, 5-step programs |
| Plate Material: | Aluminum |
| Warranty: | 2 years |
| Net Weight: | 16.5 lb / 7.5 kg |
| Overall Dimensions: | 16.5 x 10.3 x 4.7 in / 420 x 262 x 119 mm |

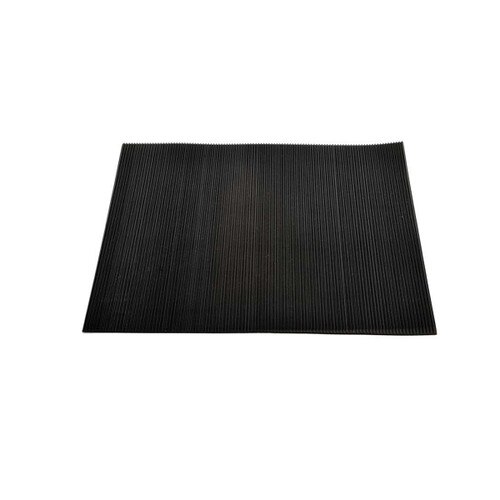

| Includes: | Power cord, Power adapter, Non-skid rubber mat |
| Working Environment: | 14 °F to 104 °F / -10 °C to 40 °C, 80% RH, non-condensing |
| Certifications: | TUV Certification |
